920 E Mustang 920 E Specifications & Technical Data (1991—1999)

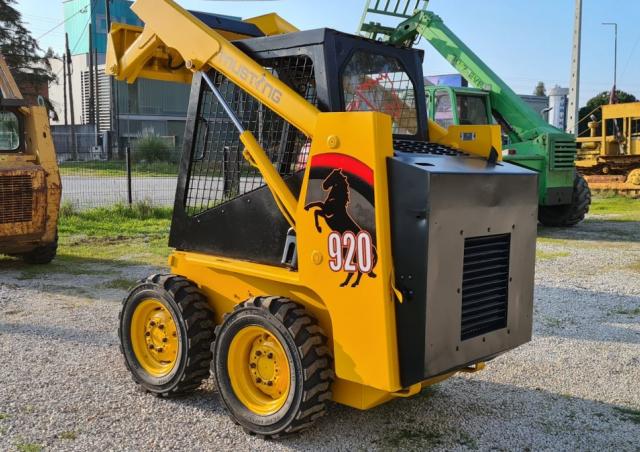

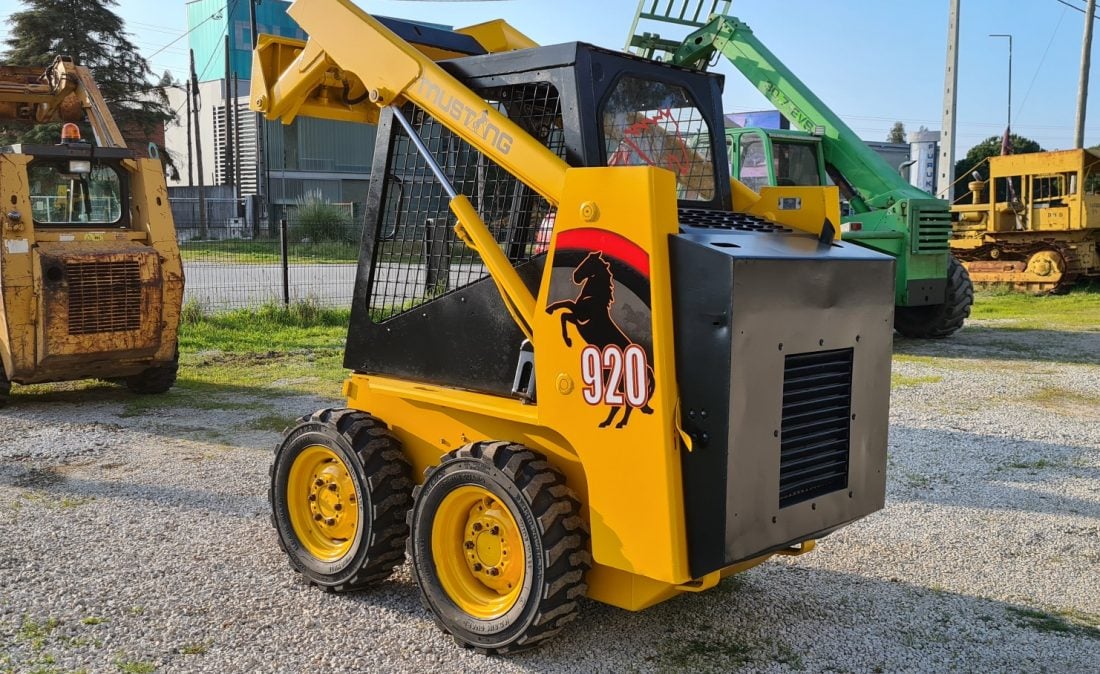

The Mustang 920 E is a skid steer loader manufactured by Mustang from 1991 to 1999. It has a weight of 1.6 tons and a transport le…

The Mustang 920 E is a skid steer loader manufactured by Mustang from 1991 to 1999. It has a weight of 1.6 tons and a transport length of 2.73 meters. The bucket capacity is 0.19 cubic meters, and the transport width is 1.25 meters. The transport height is 1.94 meters. It has a rated operating capacity of 385 kilograms.

Skid Steer Loaders Mustang 920 E

Technical specs - 920 E Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.6 t
Rated operating capacity
385 kg
Standard tyres
27/8.50/15
Bucket capacity
0.19 m³
Transport length
2.73 m
Transport width
1.25 m
Transport height
1.94 m
Travel speed
7.3 km/h
Engine manuf.
Yanmar
Engine type
3TN72E
Engine power
14 kW

More technical details, like: track width, bucket width, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: track width, bucket width, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, access, engine manufacturer, engine model, rated speed, engine output - net, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Mustang 920 E FAQ

When was the Mustang 920 E skid steer loader manufactured?

The Mustang 920 E skid steer loader was manufactured from 1991 to 1999.

How much does the Mustang 920 E skid steer loader weigh?

The Mustang 920 E skid steer loader weighs 1.6 tons.

What are the transport dimensions of the Mustang 920 E skid steer loader?

The Mustang 920 E has a transport length of 2.73 meters, a transport width of 1.25 meters, and a transport height of 1.94 meters.

What is the travel speed of the Mustang 920 E skid steer loader?

The Mustang 920 E skid steer loader has a travel speed of 7.3 km/h.

What are the standard tyre specifications of the Mustang 920 E skid steer loader?

The Mustang 920 E skid steer loader has standard tyres sized 27/8.50/15.

What is the material handling capacity of the Mustang 920 E skid steer loader?

The Mustang 920 E skid steer loader has a rated operating capacity of 385 kilograms.

What is the bucket capacity of the Mustang 920 E skid steer loader?

The Mustang 920 E skid steer loader has a bucket capacity of 0.19 cubic meters.

How much is a Mustang 920 E Skid steer loader (1991u20131999) worth?

The residual value of the Mustang 920 E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
