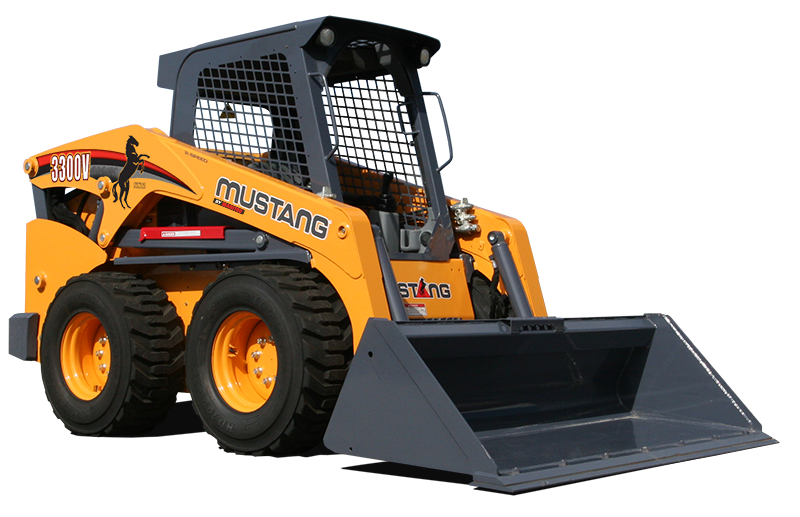

3300V NXT2 Mustang 3300V NXT2 Specifications & Technical Data (2017—2025)
Technical specs - 3300V NXT2 Mustang
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.12 t
- Rated operating capacity
- 1497 kg
- Standard tyres
- 14.00x17.5 HD
- Bucket width
- 1.88 m
- Driver protection
- KbR
- Transport length
- 3.87 m
- Transport width
- 1.83 m
- Transport height
- 2.08 m
- Travel speed
- 13 km/h
- Max. discharge height
- 2.5 m
- Model series
- Radialhub
- Engine manuf.
- Yanmar
- Engine type
- 4TNV98CT-NMS
- Engine power
- 52.7 kW
- Displacement
- 3.3 l
- Revolutions at max torque
- 1625 rpm
- Max. torque
- 294 Nm
- Emission level
- Tier 4
More technical details, like: track width, bucket capacity, steering mode, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. shovel with teeth
Special equipment
- Diesel particulate filter
-
No
- LPG motor
-
No
- Burglar proof system
-
Yes
Download datasheets (PDF)
Mustang 3300V NXT2 FAQ
How much does the Mustang 3300V NXT2 skid steer loader weigh?
What are the transport dimensions of the Mustang 3300V NXT2 skid steer loader?
What is the travel speed of the Mustang 3300V NXT2 skid steer loader?
What are the undercarriage tyre specifications of the Mustang 3300V NXT2 skid steer loader?
What is the material handling capacity of the Mustang 3300V NXT2 skid steer loader?
What is the bucket width of the Mustang 3300V NXT2 skid steer loader?
What operator safety and support features does the Mustang 3300V NXT2 have?
How much is a Mustang 3300V NXT2 Skid steer loader (2017u20132025) worth?
Machine inspection
Ask for inspection of your Mustang 3300V NXT2 from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare Mustang 3300V NXT2 with similar Skid Steer Loaders

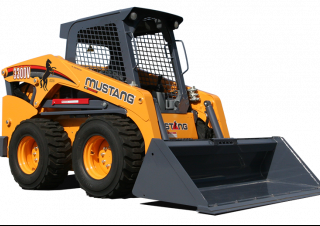

Mustang 3300V NXT2
