2041 Mustang 2041 Specifications & Technical Data (2011—2016)

The Mustang 2041 is a skid steer loader manufactured by Mustang from 2011 to 2016. It has a weight of 2.09 tons and a transport le…

The Mustang 2041 is a skid steer loader manufactured by Mustang from 2011 to 2016. It has a weight of 2.09 tons and a transport length of 2.95 meters. The bucket capacity is 0.31 cubic meters, with a bucket width of 1.52 meters. The maximum discharge height is 2.2 meters. The transport width is 1.42 meters, and the transport height is 1.83 meters. The rated operating capacity is 612 kilograms.

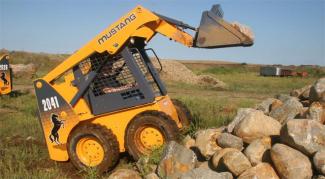

Skid Steer Loaders Mustang 2041
Skid Steer Loaders Mustang 2041
Skid Steer Loaders Mustang 2041
Skid Steer Loaders Mustang 2041
Skid Steer Loaders Mustang 2041
Skid Steer Loaders Mustang 2041

Technical specs - 2041 Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.09 t
Rated operating capacity
612 kg
Standard tyres
10.00x16.5
Bucket width
1.52 m
Bucket capacity
0.31 m³
Driver protection
Kb
Steering mode
AL
Transport length
2.95 m
Transport width
1.42 m
Transport height
1.83 m
Travel speed
10.3 km/h
Max. discharge height
2.2 m
Engine manuf.
Yanmar
Engine type
4TNV88
Engine power
34 kW
Displacement
2.19 l
Revolutions at max torque
2600 rpm

More technical details, like: track width, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, telematics available, engine manufacturer...

More technical details, like: track width, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, torque, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, lift height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, hydraulic power, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Mustang 2041 FAQ

When was the Mustang 2041 skid steer loader manufactured?

The Mustang 2041 skid steer loader was manufactured from 2011 to 2016.

How much does the Mustang 2041 skid steer loader weigh?

The Mustang 2041 skid steer loader weighs 2.09 tons.

What are the transport dimensions of the Mustang 2041 skid steer loader?

The Mustang 2041 skid steer loader has a transport length of 2.95 meters, a transport width of 1.42 meters, and a transport height of 1.83 meters.

What is the travel speed of the Mustang 2041 skid steer loader?

The Mustang 2041 skid steer loader has a travel speed of 10.3 km/h.

What are the undercarriage tyre specifications of the Mustang 2041 skid steer loader?

The Mustang 2041 skid steer loader is equipped with standard tyres sized 10.00x16.5.

What is the steering mode of the Mustang 2041 skid steer loader?

The Mustang 2041 skid steer loader features all-wheel steering.

What is the material handling capacity of the Mustang 2041 skid steer loader?

The Mustang 2041 skid steer loader has a rated operating capacity of 612 kg and a maximum discharge height of 2.2 meters.

What are the specifications of the primary work tool bucket on the Mustang 2041 skid steer loader?

The primary work tool bucket of the Mustang 2041 has a capacity of 0.31 cubic meters and a width of 1.52 meters.

What operator safety features does the Mustang 2041 have?

The Mustang 2041 has a cabin for driver protection.

How much is a Mustang 2041 Skid steer loader (2011u20132016) worth?

The residual value of the Mustang 2041 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Mustang 2041 overview

Mustang 2041 features overview

Move More

Move more with an increased rated operating capacity of 1,475 lbs. An optional counterweight adds strength to your compact fleet.


Unique

A patented Mustang radial-lift design is engineered for fast cycle times, strong breakout forces, and high operating capacities.


Operator environment

Sturdy

Sturdy Level II-certified ROPS/FOPS structure provides protection, yet allows an unobstructed view to the attachment and surrounding work area.


Hydraulics

Drive Motors

Drive motors utilize SAHR (spring applied, hydraulic release) brakes as standard equipment. These brakes are activated by the Hydraloc system or a switch on the instrument panel.
