2032 Mustang 2032 Specifications & Technical Data (2001—2003)

The Mustang 2032 Skid Steer Loader, manufactured from 2001 to 2003, weighs 2.1 tons and has a transport length of 2.93 meters, a t…

The Mustang 2032 Skid Steer Loader, manufactured from 2001 to 2003, weighs 2.1 tons and has a transport length of 2.93 meters, a transport width of 1.41 meters, and a transport height of 1.84 meters. It has a rated operating capacity of 567 kilograms.

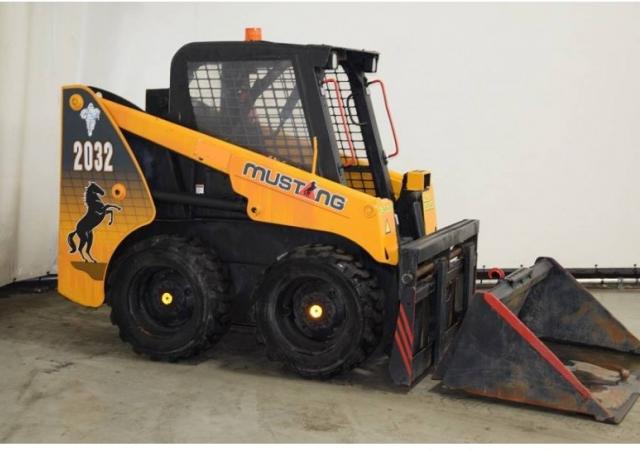

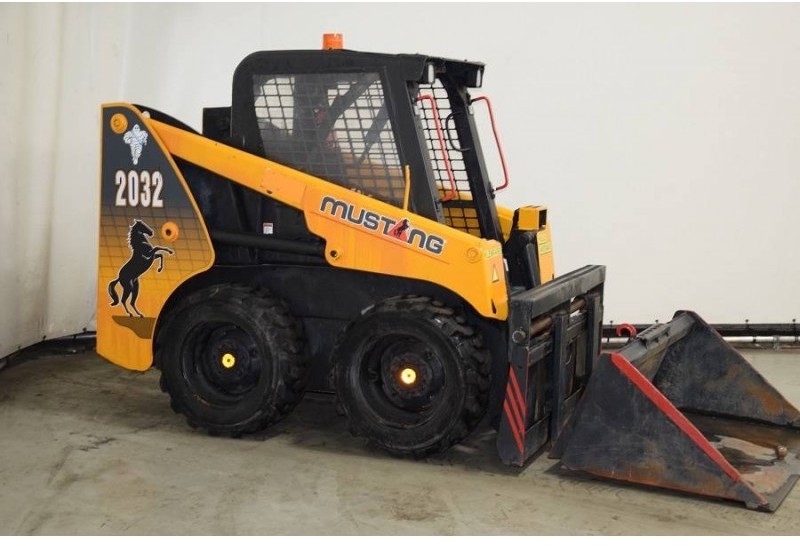

Skid Steer Loaders Mustang 2032

Technical specs - 2032 Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.1 t
Rated operating capacity
567 kg
Standard tyres
10x16.5
Transport length
2.93 m
Transport width
1.41 m
Transport height
1.84 m
Travel speed
11.3 km/h
Engine manuf.
Yanmar
Engine type
3TNE88
Engine power
27 kW
Displacement
1.642 l
No. of cylinders
3

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke...

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model, aspiration, rated speed, engine output - net, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Mustang 2032 FAQ

When was the Mustang 2032 skid steer loader manufactured?

The Mustang 2032 skid steer loader was manufactured from 2001 to 2003.

How much does the Mustang 2032 skid steer loader weigh?

The Mustang 2032 skid steer loader weighs 2.1 tons.

What are the transport dimensions of the Mustang 2032 skid steer loader?

The Mustang 2032 skid steer loader has a transport length of 2.93 meters, a transport width of 1.41 meters, and a transport height of 1.84 meters.

What is the travel speed of the Mustang 2032 skid steer loader?

The Mustang 2032 skid steer loader has a travel speed of 11.3 km/h.

What is the standard tyre size of the Mustang 2032 skid steer loader?

The Mustang 2032 skid steer loader has standard tyres sized 10x16.5.

What is the material handling capacity of the Mustang 2032 skid steer loader?

The Mustang 2032 skid steer loader has a rated operating capacity of 567 kg.

How much is a Mustang 2032 Skid steer loader (2001u20132003) worth?

The residual value of the Mustang 2032 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
