2012 Mustang 2012 Specifications & Technical Data (2011—2018)

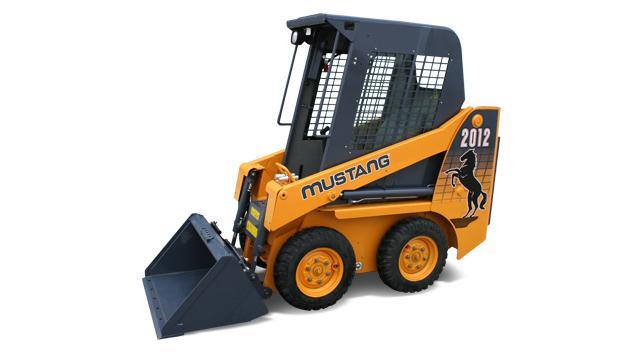

The Mustang 2012 is a skid steer loader manufactured by Mustang from 2011 to 2018. It has a weight of 1.35 tons and a transport le…

The Mustang 2012 is a skid steer loader manufactured by Mustang from 2011 to 2018. It has a weight of 1.35 tons and a transport length of 2.58 meters. The bucket capacity is 0.12 cubic meters, with a bucket width of 0.91 meters. The maximum discharge height is 1.84 meters, and it has a transport width of 0.91 meters and a transport height of 1.9 meters. The rated operating capacity is 385 kilograms, and it is equipped with a burglar-proof system.

2012

Years of manufacture: 2011—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2012 Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.35 t

Rated operating capacity: 385 kg

Standard tyres: 5.7x12

Bucket width: 0.91 m

Bucket capacity: 0.12 m³

Driver protection: Kb

Steering mode: AL

Transport length: 2.58 m

Transport width: 0.91 m

Transport height: 1.9 m

Travel speed: 8.9 km/h

Max. discharge height: 1.84 m

Model series: Radialhub

Engine manuf.: Yanmar

Engine type: 3TNV82BPMS

Engine power: 17.8 kW

Displacement: 1.33 l

Revolutions at max torque: 1200 rpm

Max. torque: 86 Nm

Emission level: Tier 4

More technical details, like: track width, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke, lift geometry, access, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, torque, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, lift height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, pump type, hydraulic power, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter: No
LPG motor: No
Burglar proof system: Yes

Download datasheets (PDF)

Mustang 2012 FAQ

When was the Mustang 2012 skid steer loader manufactured?

The Mustang 2012 skid steer loader was manufactured from 2011 to 2018.

How much does the Mustang 2012 skid steer loader weigh?

The Mustang 2012 skid steer loader weighs 1.35 tons.

What are the transport dimensions of the Mustang 2012 skid steer loader?

The Mustang 2012 skid steer loader has a transport length of 2.58 meters, a transport width of 0.91 meters, and a transport height of 1.9 meters.

What is the travel speed of the Mustang 2012 skid steer loader?

The Mustang 2012 skid steer loader has a travel speed of 8.9 km/h.

What is the standard tyre size of the Mustang 2012 skid steer loader?

The Mustang 2012 skid steer loader has standard tyres sized 5.7x12.

What is the steering mode of the Mustang 2012 skid steer loader?

The Mustang 2012 skid steer loader has an all-wheel steering mode.

What is the material handling capacity of the Mustang 2012 skid steer loader?

The Mustang 2012 skid steer loader has a rated operating capacity of 385 kilograms.

What are the specifications of the primary work tool bucket on the Mustang 2012 skid steer loader?

The Mustang 2012 skid steer loader has a bucket with a capacity of 0.12 cubic meters and a width of 0.91 meters.

What operator safety and support features does the Mustang 2012 skid steer loader have?

The Mustang 2012 skid steer loader provides operator safety through a cabin that protects the driver.
