1203 Locust 1203 Specifications & Technical Data (2019—2026)

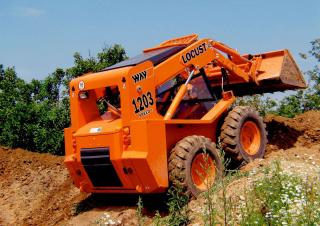

The Locust 1203 is a skid steer loader manufactured by Locust since 2019. It has a weight of 4.3 tons and a transport length of 3.…

The Locust 1203 is a skid steer loader manufactured by Locust since 2019. It has a weight of 4.3 tons and a transport length of 3.745 meters. The bucket capacity is 0.66 cubic meters, and it can reach a maximum discharge height of 2.57 meters. With a travel speed of 12 km/h, it has a transport width of 2.1 meters and a transport height of 2.165 meters. The lifting force of this construction machine is 28 kilonewtons, and it has a rated operating capacity of 1200 kilograms.

Skid Steer Loaders Locust 1203

Technical specs - 1203 Locust

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.3 t
Rated operating capacity
1200 kg
Bucket capacity
0.66 m³
Driver protection
KbR
Transport length
3.745 m
Transport width
2.1 m
Transport height
2.165 m
Travel speed
12 km/h
Max. discharge height
2.57 m
Lifting force
28 kN

More technical details, like: track width, standard tyres, bucket width, steering mode, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: track width, standard tyres, bucket width, steering mode, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Locust 1203 FAQ

When was the Locust 1203 manufactured?

The Locust 1203 was first produced in 2019.

How much does the Locust 1203 skid steer loader weigh?

The Locust 1203 skid steer loader weighs 4.3 tons.

What are the transport dimensions of the Locust 1203 skid steer loader?

The Locust 1203 has a transport length of 3.75 meters, a transport width of 2.1 meters, and a transport height of 2.17 meters.

What is the travel speed of the Locust 1203 skid steer loader?

The Locust 1203 skid steer loader has a travel speed of 12 km/h.

What is the lifting force of the Locust 1203 skid steer loader?

The Locust 1203 skid steer loader has a lifting force of 28 kN.

What is the material handling capacity of the Locust 1203 skid steer loader?

The Locust 1203 skid steer loader has a rated operating capacity of 1200 kg and a maximum discharge height of 2.57 meters.

What is the bucket capacity of the Locust 1203 skid steer loader?

The Locust 1203 skid steer loader has a bucket capacity of 0.66 cubic meters.

What operator safety features does the Locust 1203 skid steer loader have?

The Locust 1203 skid steer loader is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Locust 1203 Skid steer loader (2019u20132025) worth?

The residual value of the Locust 1203 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
