LL 24 Lanz LL 24 Specifications & Technical Data (1988—1992)

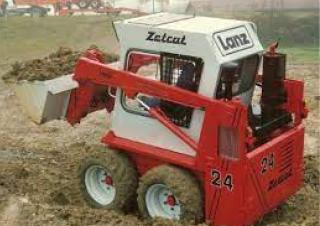

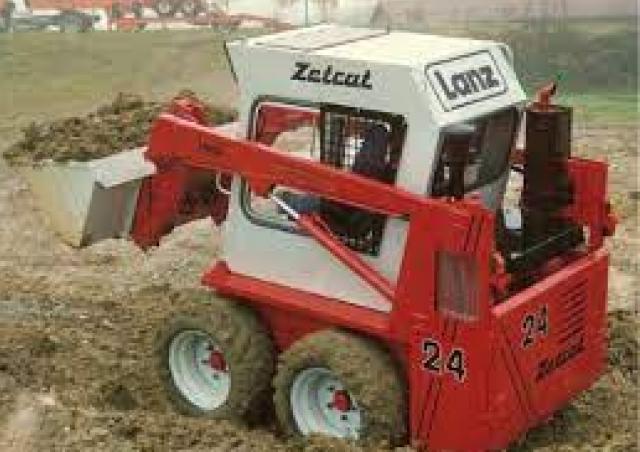

The Lanz LL 24 Skid Steer Loader, manufactured from 1988 to 1992, is a compact construction machine with a weight of 1.69 tons. It…

The Lanz LL 24 Skid Steer Loader, manufactured from 1988 to 1992, is a compact construction machine with a weight of 1.69 tons. It is equipped with a bucket capacity of 0.3 cubic meters and a bucket width of 1.15 meters. The loader has a maximum discharge height of 1.92 meters and a travel speed of 6 km/h. Its track width measures 1033 mm. The Lanz LL 24 has a rated operating capacity of 500 kg.

Skid Steer Loaders Lanz LL 24

Technical specs - LL 24 Lanz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.69 t
Rated operating capacity
500 kg
Track width
1033 mm
Standard tyres
27x10.5-15
Bucket width
1.15 m
Bucket capacity
0.3 m³
Travel speed
6 km/h
Max. discharge height
1.920 m
Engine manuf.
Deutz
Engine type
F2L511D
Engine power
24 kW

More technical details, like: driver protection, steering mode, transport length, transport width, transport height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: driver protection, steering mode, transport length, transport width, transport height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Lanz LL 24 FAQ

When was the Lanz LL 24 manufactured?

The Lanz LL 24 was manufactured from 1988 to 1992.

How much does the Lanz LL 24 skid steer loader weigh?

The Lanz LL 24 skid steer loader weighs 1.69 tons.

What is the travel speed of the Lanz LL 24 skid steer loader?

The Lanz LL 24 skid steer loader has a travel speed of 6 km/h.

What are the undercarriage specifications of the Lanz LL 24 skid steer loader?

The Lanz LL 24 skid steer loader has standard tyres sized 27x10.5-15 and a track width of 1033 mm.

What is the material handling capacity of the Lanz LL 24 skid steer loader?

The Lanz LL 24 skid steer loader has a rated operating capacity of 500 kg and a maximum discharge height of 1.92 meters.

What are the specifications of the primary work tool on the Lanz LL 24 skid steer loader?

The Lanz LL 24 skid steer loader has a bucket with a capacity of 0.3 cubic meters and a width of 1.15 meters.
