JD24 John Deere Construction JD24 Specifications & Technical Data (1974—1976)

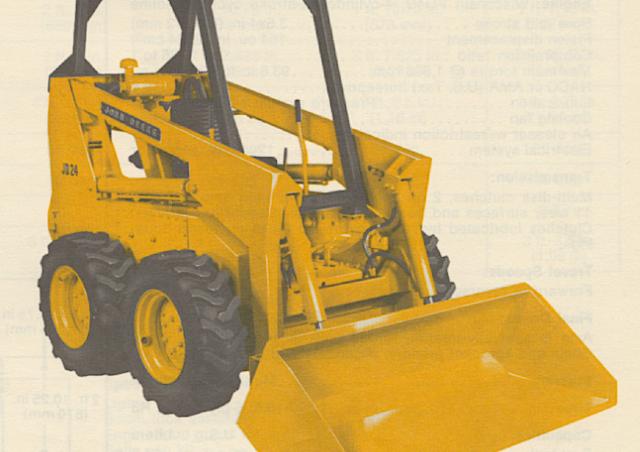

The John Deere Construction JD24 is a skid steer loader manufactured from 1974 to 1976. It has a weight of 2.155 tons and a transp…

The John Deere Construction JD24 is a skid steer loader manufactured from 1974 to 1976. It has a weight of 2.155 tons and a transport length of 2.97 meters. The bucket capacity is 0.283 cubic meters with a width of 1.65 meters. The maximum discharge height is 3.05 meters. It has a travel speed of 11.3 km/h and a transport width and height of 1.65 meters and 1.575 meters respectively.

Skid Steer Loaders John Deere Construction JD24

Technical specs - JD24 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.155 t
Standard tyres
10.00-16.5 6-ply
Bucket width
1.65 m
Bucket capacity
0.283 m³
Driver protection
KbR
Transport length
2.97 m
Transport width
1.65 m
Transport height
1.575 m
Travel speed
11.3 km/h
Max. discharge height
3.05 m
Engine manuf.
Wisconsin
Engine type
VG4D
Engine power
27.59 kW
Displacement
2.524 l
No. of cylinders
4
Cylinder bore x stroke
89x102 mm

More technical details, like: rated operating capacity, track width, steering mode, lifting force, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction JD24 FAQ

When was the John Deere Construction JD24 manufactured?

The John Deere Construction JD24 was manufactured from 1974 to 1976.

How much does the John Deere Construction JD24 skid steer loader weigh?

The John Deere Construction JD24 skid steer loader weighs 2.16 tons.

What are the transport dimensions of the John Deere Construction JD24 skid steer loader?

The John Deere Construction JD24 has a transport length of 2.97 meters, a transport width of 1.65 meters, and a transport height of 1.58 meters.

What is the travel speed of the John Deere Construction JD24 skid steer loader?

The John Deere Construction JD24 skid steer loader has a travel speed of 11.3 km/h.

What are the undercarriage specifications of the John Deere Construction JD24 skid steer loader?

The John Deere Construction JD24 skid steer loader is equipped with standard tyres sized 10.00-16.5 6-ply.

What is the material handling capacity of the John Deere Construction JD24 in terms of maximum discharge height?

The John Deere Construction JD24 has a maximum discharge height of 3.05 meters.

What are the specifications of the primary work tool on the John Deere Construction JD24 skid steer loader?

The primary work tool of the John Deere Construction JD24 skid steer loader has a bucket capacity of 0.28 cubic meters and a bucket width of 1.65 meters.

What operator safety and support features does the John Deere Construction JD24 have?

The John Deere Construction JD24 is equipped with a cabin that includes ROPS for driver protection.

How much is a John Deere Construction JD24 Skid steer loader (1974u20131976) worth?

The residual value of the John Deere Construction JD24 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
