325G John Deere Construction 325G Specifications & Technical Data (2015—2026)

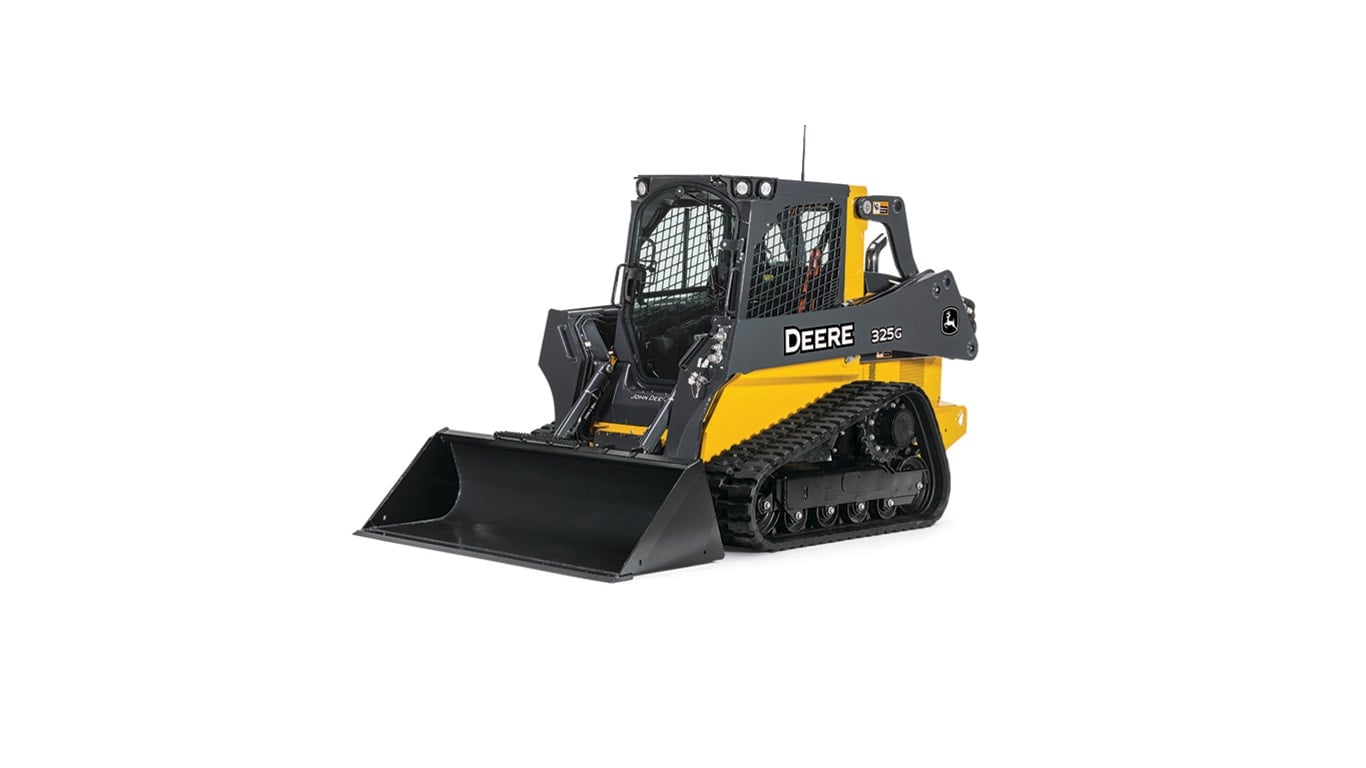

The John Deere Construction 325G is a skid steer loader manufactured by John Deere Construction since 2015. It has a weight of 4.3…

The John Deere Construction 325G is a skid steer loader manufactured by John Deere Construction since 2015. It has a weight of 4.31 tons and a transport length of 2.85 meters. The maximum discharge height is 2.59 meters, and it has a travel speed of 13.2 km/h. The transport width is 1.82 meters, and the transport height is 2.06 meters. The lifting force is 23.3 kilonewtons, and the track width is 320 millimeters. The rated operating capacity is 1634 kilograms.

Skid Steer Loaders John Deere Construction 325G

Technical specs - 325G John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.31 t
Rated operating capacity
1634 kg
Track width
320 mm
Driver protection
KbR
Transport length
2.85 m
Transport width
1.82 m
Transport height
2.06 m
Travel speed
13.2 km/h
Max. discharge height
2.59 m
Lifting force
23.3 kN
Model series
G
Engine manuf.
Yanmar
Engine type
4TNV98T
Engine power
52.7 kW
Displacement
3.3 l
Revolutions at max torque
1800 rpm
Max. torque
284/1800 Nm
No. of cylinders
4
Emission level
Tier 4i/EU IIIA

More technical details, like: standard tyres, bucket width, bucket capacity, steering mode, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction 325G FAQ

When was the John Deere Construction 325G manufactured?

The John Deere Construction 325G was first produced in 2015.

How much does the John Deere Construction 325G skid steer loader weigh?

The John Deere Construction 325G skid steer loader weighs 4.31 tons.

What are the transport dimensions of the John Deere Construction 325G skid steer loader?

The John Deere Construction 325G has a transport length of 2.85 meters, a transport width of 1.82 meters, and a transport height of 2.06 meters.

What is the travel speed of the John Deere Construction 325G skid steer loader?

The John Deere Construction 325G skid steer loader has a travel speed of 13.2 km/h.

What is the track width of the John Deere Construction 325G skid steer loader?

The John Deere Construction 325G skid steer loader has a track width of 320 mm.

What is the lifting force of the John Deere Construction 325G skid steer loader?

The John Deere Construction 325G skid steer loader has a lifting force of 23.3 kN.

What is the material handling capacity of the John Deere Construction 325G skid steer loader?

The John Deere Construction 325G has a rated operating capacity of 1634 kg and a maximum discharge height of 2.59 meters.

What operator safety and support features does the John Deere Construction 325G have?

The John Deere Construction 325G is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a John Deere Construction 325G Skid steer loader (2015u20132025) worth?

The residual value of the John Deere Construction 325G depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
