24A John Deere Construction 24A Specifications & Technical Data (1981—2021)

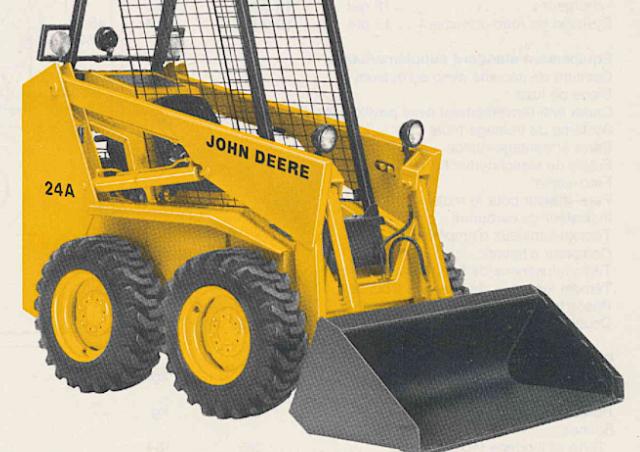

The John Deere Construction 24A Skid Steer Loader, manufactured from 1981 to 2021, weighs 2.481 tons and has a transport length of…

The John Deere Construction 24A Skid Steer Loader, manufactured from 1981 to 2021, weighs 2.481 tons and has a transport length of 3.02 meters. It is equipped with a bucket capacity of 0.283 cubic meters and a bucket width of 1.42 meters. The maximum discharge height is 2.79 meters, and it has a travel speed of 9.77 km/h. The transport width is 1.51 meters, and the transport height is 2.1 meters.

Skid Steer Loaders John Deere Construction 24A

Technical specs - 24A John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.481 t
Standard tyres
10-16.5
Bucket width
1.42 m
Bucket capacity
0.283 m³
Driver protection
KbR
Transport length
3.02 m
Transport width
1.51 m
Transport height
2.1 m
Travel speed
9.77 km/h
Max. discharge height
2.79 m
Model series
A
Engine manuf.
Isuzu
Engine type
C-190
Engine power
29.83 kW
Displacement
1.95 l
Max. torque
108 Nm
No. of cylinders
4

More technical details, like: rated operating capacity, track width, steering mode, lifting force, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction 24A FAQ

When was the John Deere Construction 24A manufactured?

The John Deere Construction 24A was manufactured from 1981 to 2021.

How much does the John Deere Construction 24A skid steer loader weigh?

The John Deere Construction 24A skid steer loader weighs 2.48 tons.

What are the transport dimensions of the John Deere Construction 24A skid steer loader?

The John Deere Construction 24A has a transport length of 3.02 meters, a transport width of 1.51 meters, and a transport height of 2.1 meters.

What is the travel speed of the John Deere Construction 24A skid steer loader?

The John Deere Construction 24A has a travel speed of 9.77 km/h.

What is the standard tyre size of the John Deere Construction 24A skid steer loader?

The John Deere Construction 24A skid steer loader has standard tyres sized 10-16.5.

What is the material handling capacity of the John Deere Construction 24A in terms of discharge height?

The John Deere Construction 24A has a maximum discharge height of 2.79 meters.

What are the specifications of the primary work tool on the John Deere Construction 24A skid steer loader?

The primary work tool of the John Deere Construction 24A skid steer loader has a bucket capacity of 0.28 cubic meters and a bucket width of 1.42 meters.

What operator safety and support features does the John Deere Construction 24A skid steer loader have?

The John Deere Construction 24A skid steer loader features a cabin with ROPS for driver protection.

How much is a John Deere Construction 24A Skid steer loader (1981u20132021) worth?

The residual value of the John Deere Construction 24A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
