2TS-7T JCB 2TS-7T Specifications & Technical Data (2021—2026)

The JCB 2TS-7T is a skid steer loader manufactured by JCB since 2021. It has a weight of 4.5 tons and a transport length of 3.6 me…

The JCB 2TS-7T is a skid steer loader manufactured by JCB since 2021. It has a weight of 4.5 tons and a transport length of 3.6 meters. The bucket capacity is 0.56 cubic meters, with a bucket width of 1.83 meters. The maximum discharge height is 2.3 meters, and it has a travel speed of 12.6 km/h. The transport width is 1.8 meters, and the transport height is 2 meters. The track width is 320 millimeters, and the rated operating capacity is 951 kilograms.

Skid Steer Loaders JCB 2TS-7T

Visit JCB live at

Technical specs - 2TS-7T JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.5 t
Rated operating capacity
951 kg
Track width
320 mm
Bucket width
1.83 m
Bucket capacity
0.56 m³
Transport length
3.6 m
Transport width
1.8 m
Transport height
2 m
Travel speed
12.6 km/h
Max. discharge height
2.3 m
Engine manuf.
KDI
Engine type
2504 TCR
Engine power
55 kW
Displacement
4.4 l
Revolutions at max torque
1200 rpm
Max. torque
265 Nm
Emission level
Tier 4f

More technical details, like: standard tyres, driver protection, steering mode, lifting force, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

JCB 2TS-7T FAQ

When was the JCB 2TS-7T manufactured?

The JCB 2TS-7T was first produced in 2021.

How much does the JCB 2TS-7T skid steer loader weigh?

The JCB 2TS-7T skid steer loader weighs 4.5 tons.

What are the transport dimensions of the JCB 2TS-7T skid steer loader?

The JCB 2TS-7T has a transport length of 3.6 meters, a transport width of 1.8 meters, and a transport height of 2 meters.

What is the travel speed of the JCB 2TS-7T skid steer loader?

The JCB 2TS-7T has a travel speed of 12.6 km/h.

What is the track width of the JCB 2TS-7T skid steer loader?

The JCB 2TS-7T skid steer loader has a track width of 320 mm.

What is the material handling capacity of the JCB 2TS-7T skid steer loader?

The JCB 2TS-7T skid steer loader has a rated operating capacity of 951 kg and a maximum discharge height of 2.3 meters.

What are the specifications of the primary work tool bucket on the JCB 2TS-7T?

The primary work tool bucket of the JCB 2TS-7T has a capacity of 0.56 cubic meters and a width of 1.83 meters.

How much is a JCB 2TS-7T Skid steer loader (2021u20132025) worth?

The residual value of the JCB 2TS-7T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB 2TS-7T overview

JCB 2TS-7T features overview

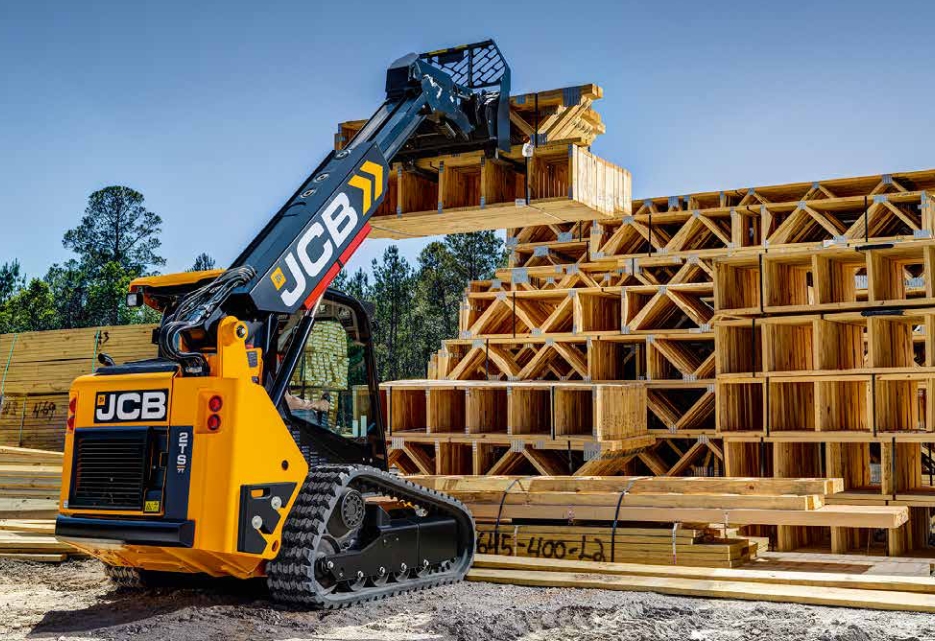

Limitless Versatility

The JCB Teleskid is the only skid steer or compact tracked loader with a lift height over 13 feet and a forward reach of 8 feet, allowing you to do things you never thought possible. The JCB Teleskid 3TS has a lift height over 13 feet (4.03 m) and the 2TS has a lift height of 12 feet (3.6m) allowing you to easily and quickly load trucks, bins and dumpsters without using a ramp. With rated operating capacities up to 3,695 lb (1,676 kg), the JCB Teleskid can handle the heaviest loads. JCB Teleskid’s telescopic boom allows loads to be placed quickly and easily over fences and barriers. With 8 feet (2.4 m) of forward reach on the 3TS and 7 feet (2.1 m) on the 2TS, placing or lifting loads through or over obstacles is efficient and easy. Now you can reach and dig below grade to a depth of 3 feet (0.9 m) on the 3TS and 2 feet (0.8 m) on the 2TS, to prepare or clear ditches, rip out trees and roots, and more. At full extension, the 3TS Teleskid has a rated operating capacity of 1,614 lb (732 kg) and the 2TS has a rated operating capacity of 1,140 lb (517 kg).


Operator environment

Total comfort and control

All JCB Teleskid models feature a side-entry door. Not only is side entry easier and safer than a conventional skid steer, but the door is twice the size of competing machines. JCB Teleskids have one of the best ventilation systems in the industry, thanks to three cab ventilation filters and an external panel cover. Air conditioning is available as an option, to provide the perfect, controllable cabin environment. Arm rests provide support when operating the boom controls. The left armrest features a storage space and 12-volt socket. The 3TS cab is 33 percent larger than the average cab on competing skid steer machines, while the 2TS cab is 47 percent larger than its competitors. A fully adjustable air-suspension seat (with optional heating) provides maximum comfort for the operator.


Hydraulics

Maintenance Access

The large rear service door provides easy access to all daily maintenance points and the engine bay. All daily checks and greasing can be done at ground level. The tilting cab can be operated by one person, for excellent maintenance access. Hydraulic fittings with o-ring face seals reduce downtime. The airflow fan features auto-reverse to keep the cooling pack free of debris. An air intake scavenging system minimizes debris build-up in the air filter to extend service intervals.
