210T JCB 210T Specifications & Technical Data (2017—2020)

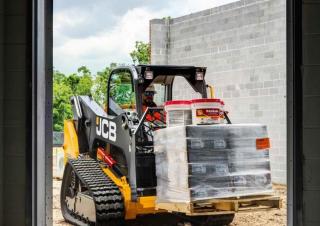

The JCB 210T Skid Steer Loader, manufactured from 2017 to 2020, weighs 4.02 tons and has a transport length of 3.49 meters. It is …

The JCB 210T Skid Steer Loader, manufactured from 2017 to 2020, weighs 4.02 tons and has a transport length of 3.49 meters. It is equipped with a 0.4 cubic meter bucket and a bucket width of 1.68 meters. The maximum discharge height is 2.29 meters, and it can travel at a speed of 10 km/h. The transport width and height are both 1.68 and 2 meters respectively. With a lifting force of 19.7 kN, it has a track width of 320 mm. The rated operating capacity of this construction machine is 1202 kg.

Skid Steer Loaders JCB 210T

Visit JCB live at

Technical specs - 210T JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.02 t
Rated operating capacity
1202 kg
Track width
320 mm
Bucket width
1.68 m
Bucket capacity
0.4 m³
Driver protection
KbR
Transport length
3.49 m
Transport width
1.68 m
Transport height
2 m
Travel speed
10 km/h
Max. discharge height
2.29 m
Lifting force
19.7 kN
Engine manuf.
Kohler
Engine type
KDI2054TCR
Engine power
55 kW
Displacement
2.482 l
Revolutions at max torque
1500 rpm
Max. torque
300 Nm
No. of cylinders
4
Emission level
III B

More technical details, like: standard tyres, steering mode, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

JCB 210T FAQ

When was the JCB 210T skid steer loader manufactured?

The JCB 210T skid steer loader was manufactured from 2017 to 2020.

How much does the JCB 210T skid steer loader weigh?

The JCB 210T skid steer loader weighs 4.02 tons.

What are the transport dimensions of the JCB 210T skid steer loader?

The JCB 210T has a transport length of 3.49 meters, a transport width of 1.68 meters, and a transport height of 2 meters.

What is the travel speed of the JCB 210T skid steer loader?

The JCB 210T skid steer loader has a travel speed of 10 km/h.

What is the track width of the JCB 210T skid steer loader?

The JCB 210T skid steer loader has a track width of 320 mm.

What is the lifting force of the JCB 210T skid steer loader?

The JCB 210T skid steer loader has a lifting force of 19.7 kN.

What is the material handling capacity of the JCB 210T skid steer loader?

The JCB 210T skid steer loader has a rated operating capacity of 1202 kg and a maximum discharge height of 2.29 meters.

What are the bucket specifications of the JCB 210T skid steer loader?

The JCB 210T skid steer loader has a bucket capacity of 0.4 cubic meters and a bucket width of 1.68 meters.

What operator safety and support features does the JCB 210T skid steer loader have?

The JCB 210T skid steer loader features a cabin with ROPS for driver protection.

How much is a JCB 210T Skid steer loader (2017u20132020) worth?

The residual value of the JCB 210T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
