V360 Gehl V360 Specifications & Technical Data (2026—2026)

Weight: 4.681t – Rated operating capacity: 1724kg – Standard tyres: 14.00 x 17.5 HD – Bucket width: 2.134m – Driver protection: KbR – Transport length: 3.173m

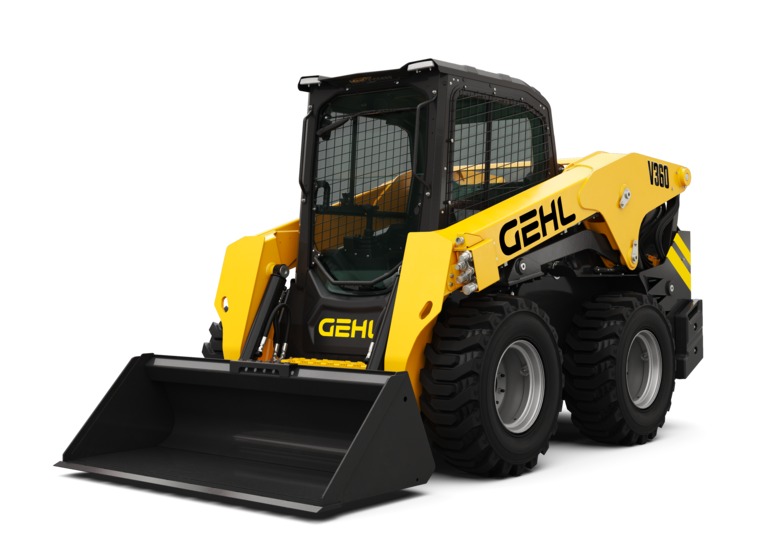

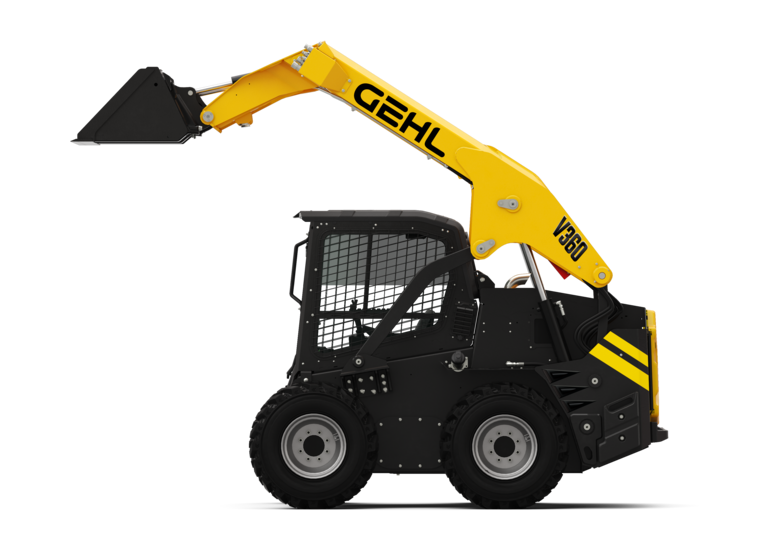

Skid Steer Loaders Gehl V360
Skid Steer Loaders Gehl V360
Skid Steer Loaders Gehl V360
Skid Steer Loaders Gehl V360

Technical specs - V360 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.681 t
Rated operating capacity
1724 kg
Standard tyres
14.00 x 17.5 HD
Bucket width
2.134 m
Driver protection
KbR
Transport length
3.173 m
Transport width
1.916 m
Transport height
2.134 m
Travel speed
11.7 km/h
Max. discharge height
2.678 m
Model series
V
Engine manuf.
Deutz
Engine type
TCD3.6
Engine power
85 kW
Revolutions at max torque
1600 rpm
Max. torque
460 Nm
No. of cylinders
4

More technical details, like: track width, bucket capacity, steering mode, lifting force, dimension lxwxh, displacement, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No
