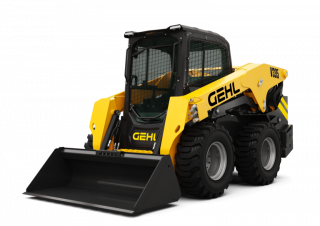

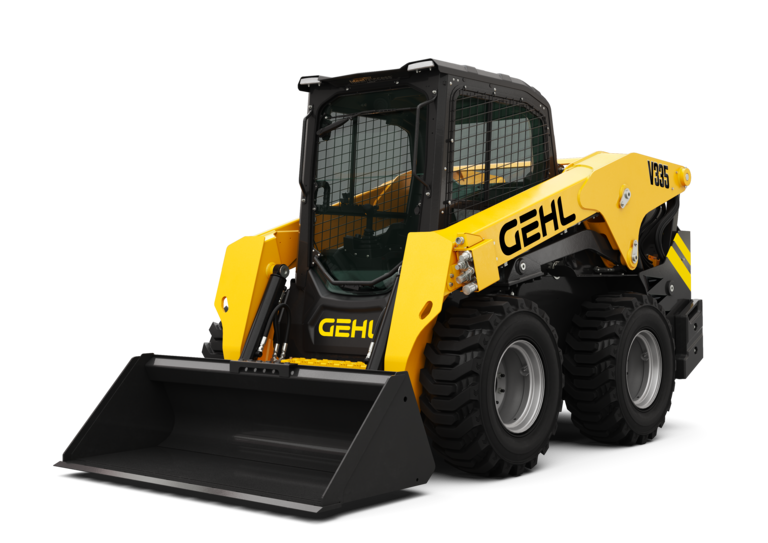

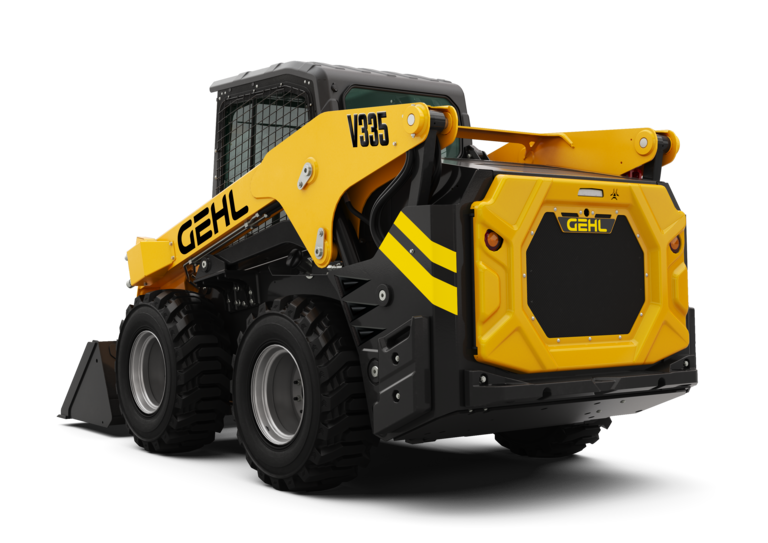

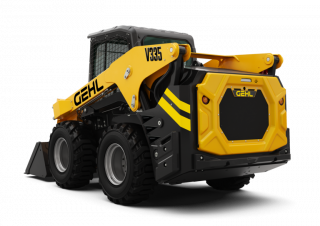

Gehl V335
- Weight:
- 4.461 t
- Rated operating capacity:
- 1610 kg
- Standard tyres:
- 12 x 16.5
- Bucket width:
- 1.88 m
V335 Gehl V335 Specifications & Technical Data (2026—2026)
Technical specs - V335 Gehl
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.461 t
- Rated operating capacity
- 1610 kg
- Standard tyres
- 12 x 16.5
- Bucket width
- 1.88 m
- Driver protection
- KbR
- Transport length
- 3.124 m
- Transport width
- 1.852 m
- Transport height
- 2.084 m
- Travel speed
- 11.5 km/h
- Max. discharge height
- 2.634 m
- Model series
- V
- Engine manuf.
- Deutz
- Engine type
- TCD3.6
- Engine power
- 74.4 kW
- Revolutions at max torque
- 1600 rpm
- Max. torque
- 410 Nm
- No. of cylinders
- 4
More technical details, like: track width, bucket capacity, steering mode, lifting force, dimension lxwxh, displacement, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. shovel with teeth
Special equipment
- Diesel particulate filter
-
No
- LPG motor
-
No
- Burglar proof system
-
No
