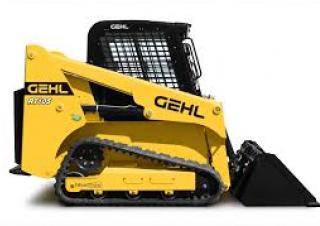

RT105 Gehl RT105 Specifications & Technical Data (2020—2026)

The Gehl RT105 is a skid steer loader manufactured since 2020. It has a weight of 2.1 tons and a transport length of 2.98 meters. …

The Gehl RT105 is a skid steer loader manufactured since 2020. It has a weight of 2.1 tons and a transport length of 2.98 meters. The bucket width is 1.37 meters, and it has a travel speed of 10.1 km/h. The transport width is 1.29 meters, and the transport height is 1.81 meters. The track width is 250 mm, and it has a rated operating capacity of 680 kg.

Skid Steer Loaders Gehl RT105

Technical specs - RT105 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.1 t
Rated operating capacity
680 kg
Track width
250 mm
Bucket width
1.37 m
Steering mode
PL
Transport length
2.98 m
Transport width
1.29 m
Transport height
1.81 m
Travel speed
10.1 km/h
Model series
RT
Engine manuf.
Yanmar
Engine type
3TNV88C-KMS
Engine power
25.5 kW
Displacement
1.6 l
Revolutions at max torque
2800 rpm
Max. torque
108/1680 Nm
No. of cylinders
3
Emission level
Tier IV

More technical details, like: standard tyres, bucket capacity, driver protection, max. discharge height, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Gehl RT105 FAQ

When was the Gehl RT105 manufactured?

The Gehl RT105 was first produced in 2020.

How much does the Gehl RT105 skid steer loader weigh?

The Gehl RT105 skid steer loader weighs 2.1 tons.

What are the transport dimensions of the Gehl RT105 skid steer loader?

The Gehl RT105 skid steer loader has a transport length of 2.98 meters, a transport width of 1.29 meters, and a transport height of 1.81 meters.

What is the travel speed of the Gehl RT105 skid steer loader?

The Gehl RT105 has a travel speed of 10.1 km/h.

What is the track width of the Gehl RT105 skid steer loader?

The Gehl RT105 skid steer loader has a track width of 250 mm.

What is the steering mode of the Gehl RT105 skid steer loader?

The Gehl RT105 skid steer loader uses tank steering mode.

What is the material handling capacity of the Gehl RT105 skid steer loader?

The Gehl RT105 skid steer loader has a rated operating capacity of 680 kilograms.

What is the bucket width of the Gehl RT105 skid steer loader?

The bucket width of the Gehl RT105 skid steer loader is 1.37 meters.
