RT 210 DXT Dual Gehl RT 210 DXT Dual Specifications & Technical Data (2012—2016)

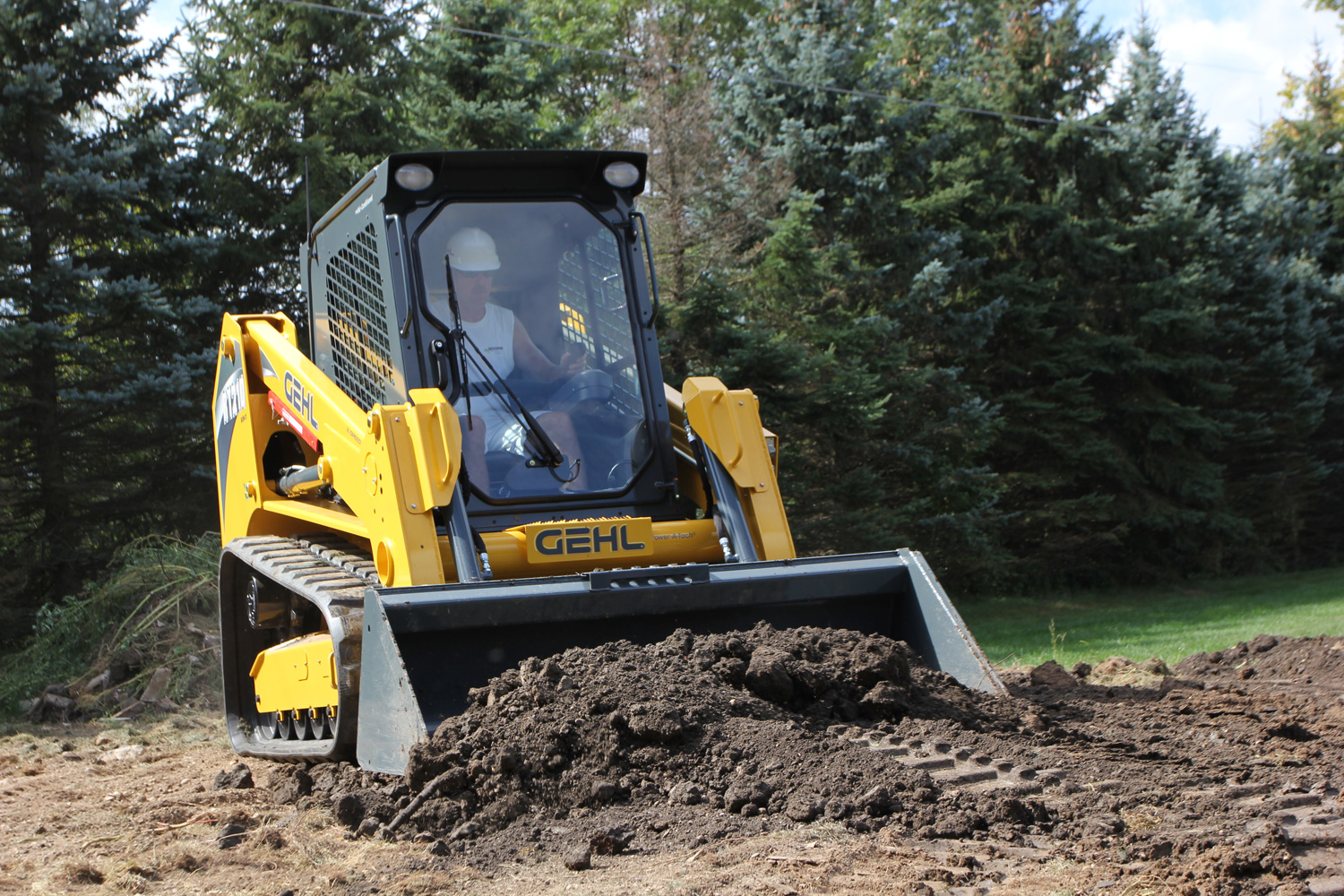

The Gehl RT 210 DXT Dual is a skid steer loader manufactured by Gehl from 2012 to 2016. It has a weight of 4.5 tons and a transpor…

The Gehl RT 210 DXT Dual is a skid steer loader manufactured by Gehl from 2012 to 2016. It has a weight of 4.5 tons and a transport length of 3.868 meters. The bucket capacity is 0.5 cubic meters with a width of 1.88 meters. The maximum discharge height is 2.41 meters. It has a travel speed of 13 km/h and a transport width of 1.88 meters. The transport height is 2.12 meters and the track width is 450 mm. The rated operating capacity is 953 kg.

Skid Steer Loaders Gehl RT 210 DXT Dual
Skid Steer Loaders Gehl RT 210 DXT Dual
Skid Steer Loaders Gehl RT 210 DXT Dual
Skid Steer Loaders Gehl RT 210 DXT Dual
Skid Steer Loaders Gehl RT 210 DXT Dual
Skid Steer Loaders Gehl RT 210 DXT Dual

Technical specs - RT 210 DXT Dual Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.5 t
Rated operating capacity
953 kg
Track width
450 mm
Bucket width
1.88 m
Bucket capacity
0.5 m³
Driver protection
KbR
Steering mode
PL
Transport length
3.868 m
Transport width
1.88 m
Transport height
2.12 m
Travel speed
13 km/h
Max. discharge height
2.41 m
Model series
RT
Engine manuf.
Yanmar
Engine type
4TNV98T
Engine power
53 kW
Displacement
3.3 l
Revolutions at max torque
2500 rpm

More technical details, like: standard tyres, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, lift geometry, access, suspension seat, telematics available...

More technical details, like: standard tyres, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, lift geometry, access, suspension seat, telematics available, engine manufacturer, engine model, emission rating, number of cylinders, aspiration, rated speed, engine output - net, torque, transmission type, drive method, track rollers, track shoe width, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, track length on ground, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, ground bearing pressure, speed - maximum, breakout - lift, breakout - bucket, hydraulic power, hydraulic power - option, pump flow, pump flow - option, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Gehl RT 210 DXT Dual FAQ

When was the Gehl RT 210 DXT Dual manufactured?

The Gehl RT 210 DXT Dual was manufactured from 2012 to 2016.

How much does the Gehl RT 210 DXT Dual weigh?

The Gehl RT 210 DXT Dual weighs 4.5 tons.

What are the transport dimensions of the Gehl RT 210 DXT Dual skid steer loader?

The Gehl RT 210 DXT Dual has a transport length of 3.87 meters, a transport width of 1.88 meters, and a transport height of 2.12 meters.

What is the travel speed of the Gehl RT 210 DXT Dual skid steer loader?

The Gehl RT 210 DXT Dual has a travel speed of 13 km/h.

What is the track width of the Gehl RT 210 DXT Dual's undercarriage?

The Gehl RT 210 DXT Dual has a track width of 450 mm in its undercarriage.

What is the steering mode of the Gehl RT 210 DXT Dual skid steer loader?

The Gehl RT 210 DXT Dual skid steer loader has a steering mode of tank steering.

What is the material handling capacity of the Gehl RT 210 DXT Dual skid steer loader?

The Gehl RT 210 DXT Dual has a rated operating capacity of 953 kg and a maximum discharge height of 2.41 meters.

What are the specifications of the primary work tool bucket on the Gehl RT 210 DXT Dual skid steer loader?

The primary work tool bucket of the Gehl RT 210 DXT Dual has a capacity of 0.5 cubic meters and a width of 1.88 meters.

What operator safety and support features does the Gehl RT 210 DXT Dual have?

The Gehl RT 210 DXT Dual is equipped with a cabin that includes ROPS for driver protection.
