R164 Gehl R164 Specifications & Technical Data (2026—2026)

Weight: 2792t – Rated operating capacity: 748kg – Standard tyres: 10 x 16.5 - 10 PR HD – Bucket width: 1.562m – Driver protection: KbR – Transport length: 2.39m

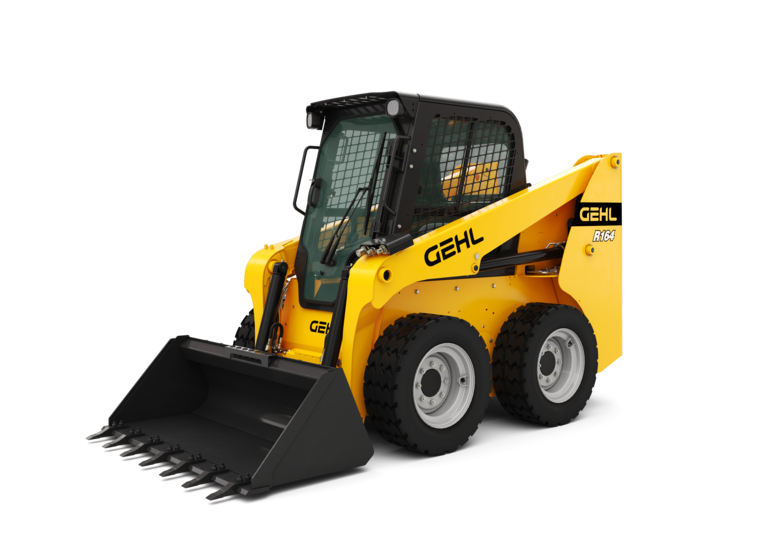

Skid Steer Loaders Gehl R164
Skid Steer Loaders Gehl R164
Skid Steer Loaders Gehl R164
Skid Steer Loaders Gehl R164
Skid Steer Loaders Gehl R164
Skid Steer Loaders Gehl R164

Technical specs - R164 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2792 t
Rated operating capacity
748 kg
Standard tyres
10 x 16.5 - 10 PR HD
Bucket width
1.562 m
Driver protection
KbR
Transport length
2.39 m
Transport width
1.582 m
Transport height
1.948 m
Travel speed
12.6 km/h
Max. discharge height
2.379 m
Model series
R
Engine manuf.
Yanmar
Engine type
4TNV98-ZNMS3R1
Engine power
51.2 kW
Revolutions at max torque
2500 rpm
Max. torque
241 Nm
No. of cylinders
4
Emission level
iT4, Stage IIIA

More technical details, like: track width, bucket capacity, steering mode, lifting force, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No
