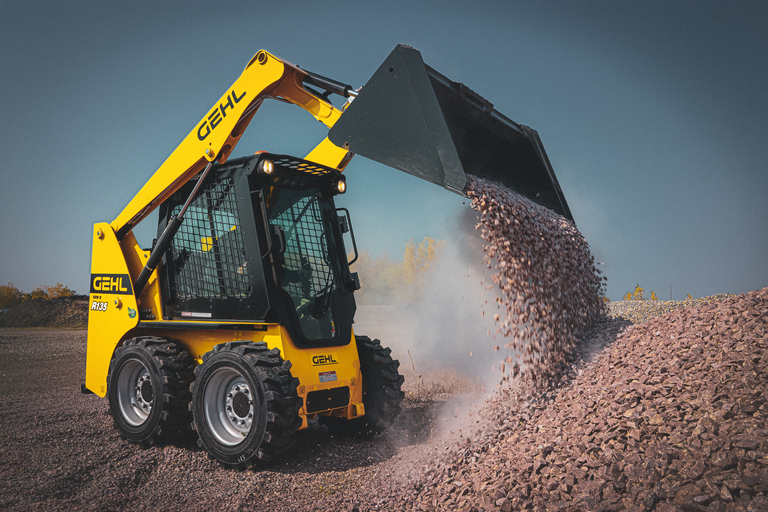

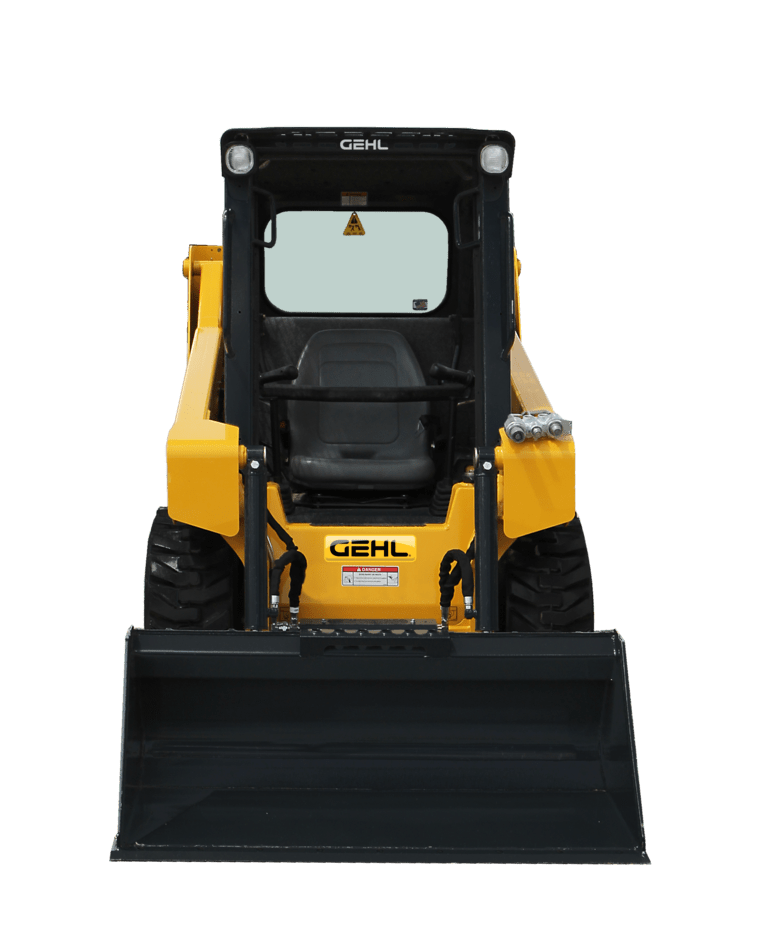

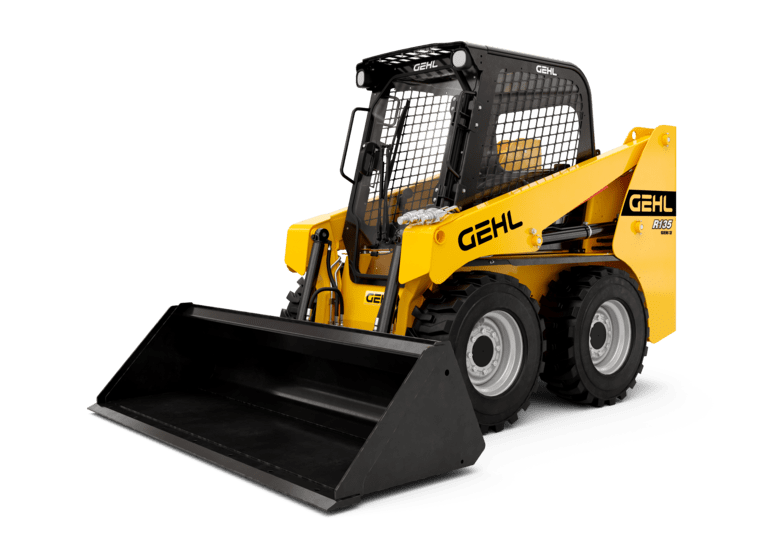

R135 Gehl R135 Specifications & Technical Data (2026—2026)

Rated operating capacity: 612kg – Standard tyres: 10.00 x 16.5 HD – Bucket width: 1.372m – Driver protection: KbR – Transport length: 2.36m – Transport width: 1.364m

Technical specs - R135 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Rated operating capacity
612 kg
Standard tyres
10.00 x 16.5 HD
Bucket width
1.372 m
Driver protection
KbR
Transport length
2.36 m
Transport width
1.364 m
Travel speed
12.9 km/h
Max. discharge height
2.123 m
Model series
R
Engine manuf.
Yanmar
Engine type
4TNV88C
Engine power
34.3 kW
Revolutions at max torque
1820 rpm
Max. torque
146.2 Nm
No. of cylinders
4
Emission level
Stage V, Tier 4f

More technical details, like: weight, track width, bucket capacity, steering mode, transport height, lifting force, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Machine inspection

Ask for inspection of your Gehl R135 from experts

Machine inspection

Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.

Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.

Enquire machine inspection

Provided by: Mevas — The Heavy Equipment Inspectors

Buy & Rent

Compare Gehl R135 with similar Skid Steer Loaders

No image available

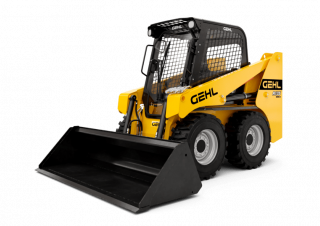

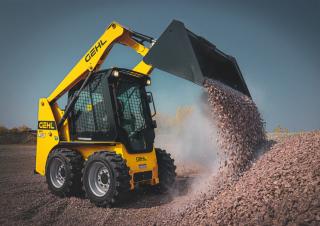

Gehl R135
