R105 Gehl R105 Specifications & Technical Data (2026—2026)

Weight: 1.905t – Rated operating capacity: 476kg – Standard tyres: 27 x 8.5 x 15 HD – Bucket width: 1.372m – Driver protection: KbR – Transport length: 2.248m

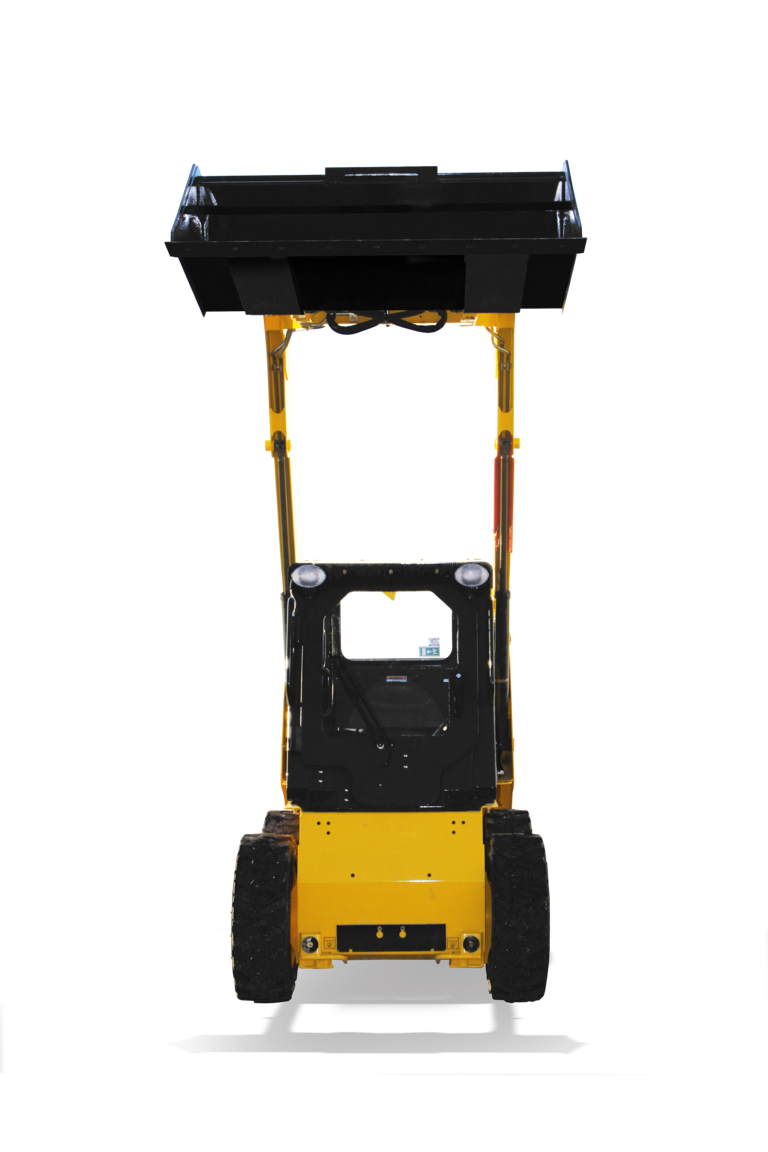

Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105

Technical specs - R105 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.905 t
Rated operating capacity
476 kg
Standard tyres
27 x 8.5 x 15 HD
Bucket width
1.372 m
Driver protection
KbR
Transport length
2.248 m
Transport width
1.224 m
Transport height
1.784 m
Travel speed
8.26 km/h
Max. discharge height
2.083 m
Model series
R
Engine manuf.
Yanmar
Engine type
3TNV88C-BKMSR
Engine power
25.5 kW
Revolutions at max torque
1820 rpm
Max. torque
109 Nm
No. of cylinders
3
Emission level
Stage V

More technical details, like: track width, bucket capacity, steering mode, lifting force, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No
