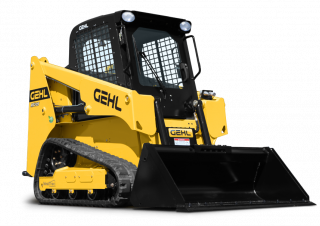

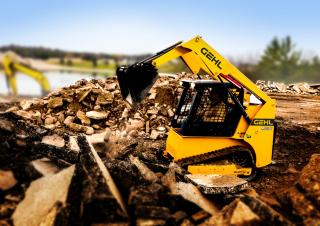

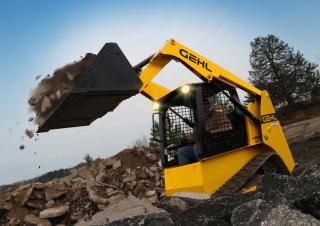

R105 Gehl R105 Specifications & Technical Data (2018—2026)

The Gehl R105 is a skid steer loader manufactured by Gehl since 2018. It has a weight of 1.9 tons and a transport length of 2.9 me…

The Gehl R105 is a skid steer loader manufactured by Gehl since 2018. It has a weight of 1.9 tons and a transport length of 2.9 meters. The bucket capacity is 0.28 cubic meters, with a bucket width of 1.25 meters. The maximum discharge height is 2.15 meters, and it has a travel speed of 9.5 km/h. The transport width is 1.23 meters, and the transport height is 1.79 meters. The rated operating capacity is 476 kilograms.

Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105
Skid Steer Loaders Gehl R105

Technical specs - R105 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.9 t
Rated operating capacity
476 kg
Standard tyres
8.5x15 HD
Bucket width
1.25 m
Bucket capacity
0.28 m³
Driver protection
KbR
Steering mode
PL
Transport length
2.9 m
Transport width
1.23 m
Transport height
1.79 m
Travel speed
9.5 km/h
Max. discharge height
2.15 m
Model series
R
Engine manuf.
Yanmar
Engine type
3TNV88C-KMS
Engine power
25.5 kW
Displacement
1.6 l
Revolutions at max torque
2800 rpm
Max. torque
108/1680 Nm
No. of cylinders
3
Emission level
Tier IV

More technical details, like: track width, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Gehl R105 FAQ

When was the Gehl R105 manufactured?

The Gehl R105 was first produced in 2018.

How much does the Gehl R105 skid steer loader weigh?

The Gehl R105 skid steer loader weighs 1.9 tons.

What are the transport dimensions of the Gehl R105 skid steer loader?

The Gehl R105 skid steer loader has a transport length of 2.9 meters, a transport width of 1.23 meters, and a transport height of 1.79 meters.

What is the travel speed of the Gehl R105 skid steer loader?

The Gehl R105 skid steer loader has a travel speed of 9.5 km/h.

What are the standard tyre specifications of the Gehl R105 skid steer loader?

The Gehl R105 skid steer loader has standard tyres sized 8.5x15 HD.

What is the steering mode of the Gehl R105 skid steer loader?

The Gehl R105 skid steer loader uses tank steering mode.

What is the material handling capacity of the Gehl R105 skid steer loader?

The Gehl R105 skid steer loader has a rated operating capacity of 476 kg and a maximum discharge height of 2.15 meters.

What are the specifications of the primary work tool bucket on the Gehl R105 skid steer loader?

The Gehl R105 skid steer loader has a bucket with a capacity of 0.28 cubic meters and a width of 1.25 meters.

What operator safety and support features does the Gehl R105 skid steer loader have?

The Gehl R105 skid steer loader features a cabin with ROPS for driver protection.
