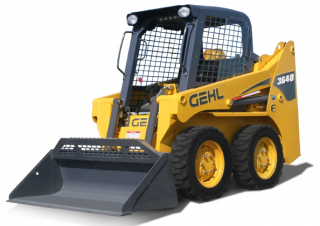

3640E Gehl 3640E Specifications & Technical Data (2018—2021)

The Gehl 3640E is a skid steer loader manufactured by Gehl from 2018 to 2021. It has a weight of 1.81 tons and a transport length …

The Gehl 3640E is a skid steer loader manufactured by Gehl from 2018 to 2021. It has a weight of 1.81 tons and a transport length of 2.9 meters. The bucket width is 1.4 meters, and the maximum discharge height is 2.15 meters. It has a travel speed of 9.5 km/h, with a transport width of 1.23 meters and a transport height of 1.79 meters. The rated operating capacity of this construction machine is 476 kilograms.

Skid Steer Loaders Gehl 3640E

Technical specs - 3640E Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.81 t
Rated operating capacity
476 kg
Standard tyres
27x8.5x15 HD
Bucket width
1.4 m
Driver protection
KbR
Steering mode
PL
Transport length
2.9 m
Transport width
1.23 m
Transport height
1.79 m
Travel speed
9.5 km/h
Max. discharge height
2.15 m
Model series
E
Engine manuf.
Yanmar
Engine type
3TNV88
Engine power
26 kW
Displacement
1.6 l
Revolutions at max torque
1680 rpm
Max. torque
108 Nm
Emission level
Tier IV

More technical details, like: track width, bucket capacity, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Gehl 3640E FAQ

When was the Gehl 3640E manufactured?

The Gehl 3640E was manufactured from 2018 to 2021.

How much does the Gehl 3640E skid steer loader weigh?

The Gehl 3640E skid steer loader weighs 1.81 tons.

What are the transport dimensions of the Gehl 3640E skid steer loader?

The Gehl 3640E skid steer loader has a transport length of 2.9 meters, a transport width of 1.23 meters, and a transport height of 1.79 meters.

What is the travel speed of the Gehl 3640E skid steer loader?

The Gehl 3640E has a travel speed of 9.5 km/h.

What are the undercarriage specifications of the Gehl 3640E skid steer loader?

The Gehl 3640E skid steer loader comes equipped with standard tyres sized 27x8.5x15 HD.

What is the steering mode of the Gehl 3640E skid steer loader?

The Gehl 3640E skid steer loader uses tank steering mode.

What is the material handling capacity of the Gehl 3640E skid steer loader?

The Gehl 3640E skid steer loader has a rated operating capacity of 476 kg and a maximum discharge height of 2.15 meters.

What is the bucket width of the Gehl 3640E skid steer loader?

The bucket width of the Gehl 3640E skid steer loader is 1.4 meters.

What operator safety and support features does the Gehl 3640E have?

The Gehl 3640E is equipped with a cabin that includes ROPS for driver protection.

How much is a Gehl 3640E Skid steer loader (2018u20132021) worth?

The residual value of the Gehl 3640E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
