1640E Gehl 1640E Specifications & Technical Data (2011—2021)

The Gehl 1640E is a skid steer loader manufactured by Gehl from 2011 to 2021. It has a weight of 1.35 tons and a transport length …

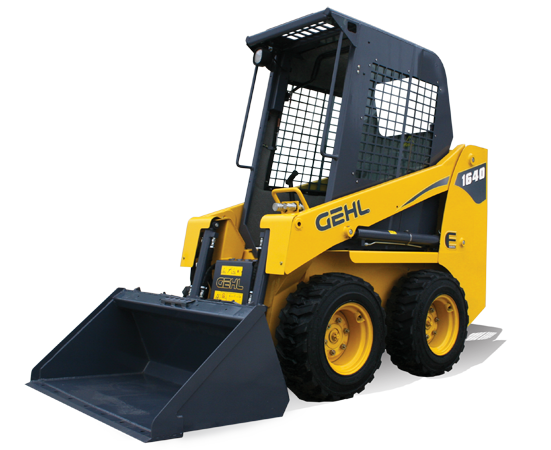

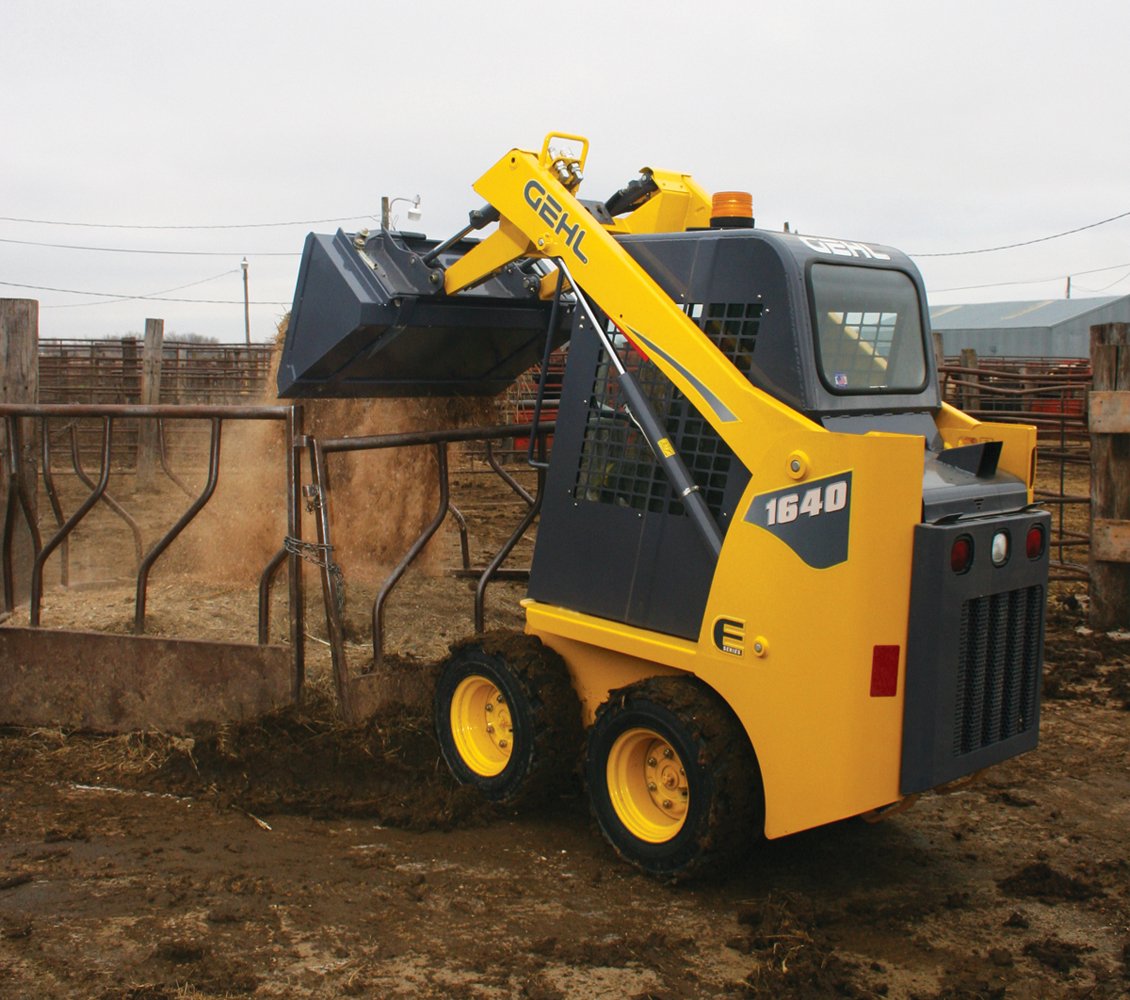

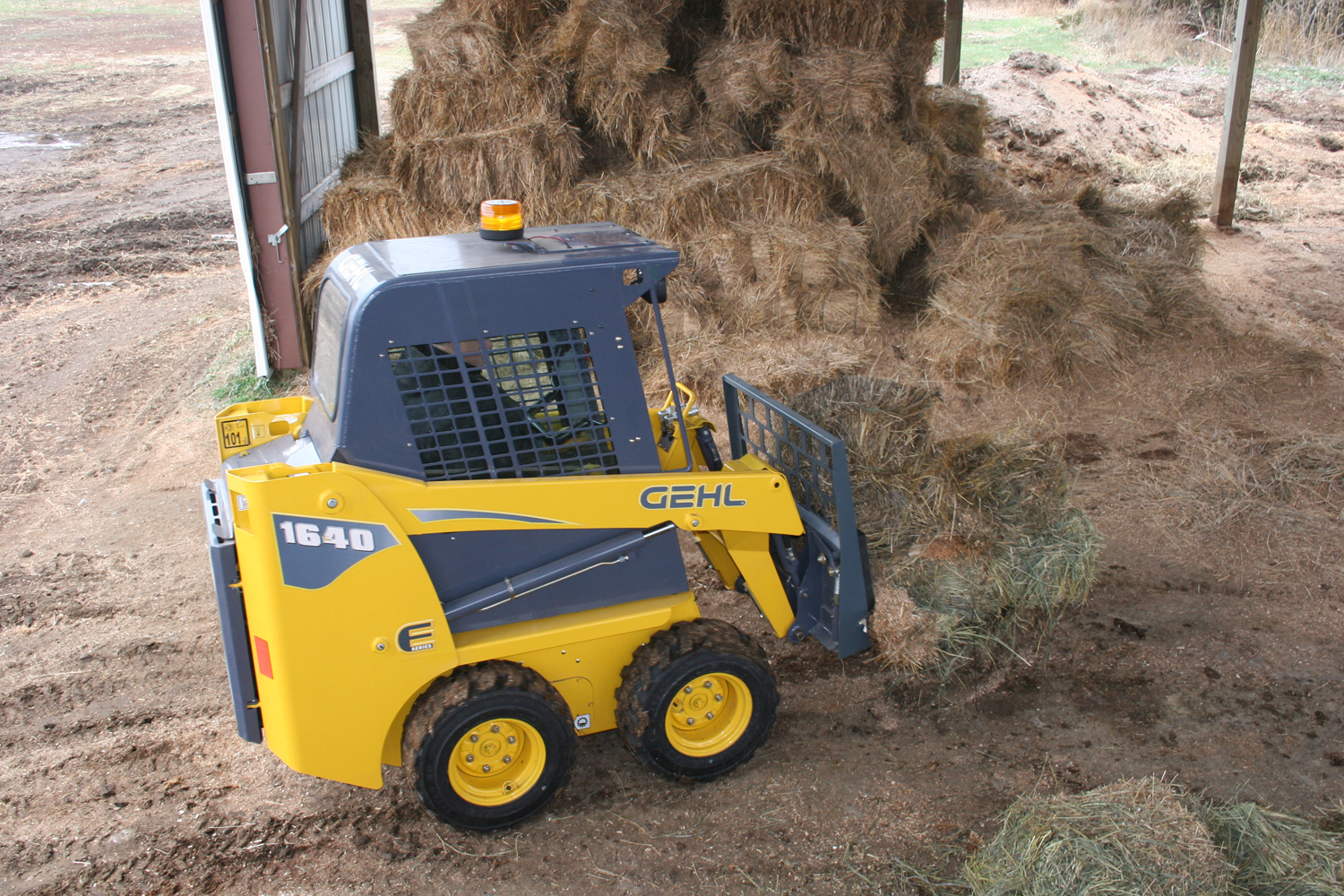

The Gehl 1640E is a skid steer loader manufactured by Gehl from 2011 to 2021. It has a weight of 1.35 tons and a transport length of 2.58 meters. The bucket capacity is 0.15 cubic meters, with a bucket width of 0.92 meters. The maximum discharge height is 1.84 meters, and it has a transport width of 0.91 meters and a transport height of 1.9 meters. The rated operating capacity is 385 kilograms.

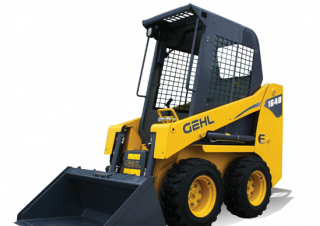

Skid Steer Loaders Gehl 1640E
Skid Steer Loaders Gehl 1640E
Skid Steer Loaders Gehl 1640E
Skid Steer Loaders Gehl 1640E
Skid Steer Loaders Gehl 1640E
Skid Steer Loaders Gehl 1640E

Technical specs - 1640E Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.35 t
Rated operating capacity
385 kg
Standard tyres
5.70x12
Bucket width
0.92 m
Bucket capacity
0.15 m³
Driver protection
KbR
Steering mode
PL
Transport length
2.58 m
Transport width
0.91 m
Transport height
1.9 m
Travel speed
8.9 km/h
Max. discharge height
1.84 m
Model series
SL V
Engine manuf.
Yanmar
Engine type
3TNV82
Engine power
17.9 kW
Displacement
1.3 l
Revolutions at max torque
2400 rpm
Max. torque
86/1200 Nm
Emission level
Tier IV

More technical details, like: track width, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke, lift geometry, access, engine manufacturer, engine model, emission rating, aspiration, rated speed...

More technical details, like: track width, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke, lift geometry, access, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, lift height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, pump flow, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Gehl 1640E FAQ

When was the Gehl 1640E manufactured?

The Gehl 1640E was manufactured from 2011 to 2021.

How much does the Gehl 1640E skid steer loader weigh?

The Gehl 1640E skid steer loader weighs 1.35 tons.

What are the transport dimensions of the Gehl 1640E skid steer loader?

The Gehl 1640E skid steer loader has a transport length of 2.58 meters, a transport width of 0.91 meters, and a transport height of 1.9 meters.

What is the travel speed of the Gehl 1640E skid steer loader?

The Gehl 1640E skid steer loader has a travel speed of 8.9 km/h.

What are the undercarriage specifications of the Gehl 1640E skid steer loader?

The Gehl 1640E skid steer loader is equipped with standard tyres sized 5.70x12.

What is the steering mode of the Gehl 1640E skid steer loader?

The Gehl 1640E skid steer loader has a steering mode of tank steering.

What is the material handling capacity of the Gehl 1640E skid steer loader?

The Gehl 1640E skid steer loader has a rated operating capacity of 385 kg and a maximum discharge height of 1.84 meters.

What are the specifications of the primary work tool bucket on the Gehl 1640E skid steer loader?

The primary work tool bucket of the Gehl 1640E has a capacity of 0.15 cubic meters and a width of 0.92 meters.

What operator safety and support features does the Gehl 1640E skid steer loader have?

The Gehl 1640E skid steer loader features a cabin with ROPS for driver protection.

How much is a Gehl 1640E Skid steer loader (2011u20132021) worth?
