430 Doosan 430 Specifications & Technical Data (2004—2011)

Model rating
10,00 / 10

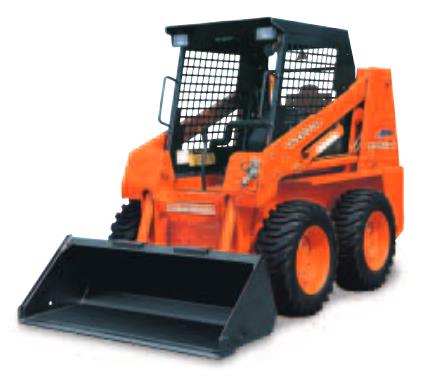

The Doosan 430 is a skid steer loader manufactured by Doosan from 2004 to 2011. It has a weight of 2.45 tons and a transport lengt…

The Doosan 430 is a skid steer loader manufactured by Doosan from 2004 to 2011. It has a weight of 2.45 tons and a transport length of 3.04 meters. The bucket capacity is 0.31 cubic meters, with a bucket width of 1.562 meters. The maximum discharge height is 0.518 meters, and it has a transport width of 1.56 meters and a transport height of 1.93 meters. The rated operating capacity is 683 kilograms.

Skid Steer Loaders Doosan 430

Technical specs - 430 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.45 t
Rated operating capacity
683 kg
Standard tyres
10.0-16.5 6PR
Bucket width
1.562 m
Bucket capacity
0.31 m³
Driver protection
Kb
Transport length
3.04 m
Transport width
1.56 m
Transport height
1.93 m
Travel speed
12.1 km/h
Max. discharge height
0.518 m
Engine manuf.
Cummins
Engine type
A2000
Engine power
34 kW
Displacement
2 l
Revolutions at max torque
1600 rpm

More technical details, like: track width, steering mode, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer...

More technical details, like: track width, steering mode, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model, rated speed, engine output - net, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Doosan 430 FAQ

When was the Doosan 430 skid steer loader manufactured?

The Doosan 430 skid steer loader was manufactured from 2004 to 2011.

How much does the Doosan 430 skid steer loader weigh?

The Doosan 430 skid steer loader weighs 2.45 tons.

What are the transport dimensions of the Doosan 430 skid steer loader?

The Doosan 430 skid steer loader has a transport length of 3.04 meters, a transport width of 1.56 meters, and a transport height of 1.93 meters.

What is the travel speed of the Doosan 430 skid steer loader?

The Doosan 430 skid steer loader has a travel speed of 12.1 km/h.

What are the undercarriage specifications of the Doosan 430 skid steer loader?

The Doosan 430 skid steer loader is equipped with standard tyres sized 10.0-16.5 6PR.

What is the material handling capacity of the Doosan 430 skid steer loader?

The Doosan 430 skid steer loader has a rated operating capacity of 683 kg and a maximum discharge height of 0.52 meters.

What are the specifications of the primary work tool bucket on the Doosan 430 skid steer loader?

The Doosan 430 skid steer loader has a bucket with a capacity of 0.31 cubic meters and a width of 1.56 meters.

What operator safety and support features does the Doosan 430 skid steer loader have?

The Doosan 430 skid steer loader features a cabin for driver protection.

How much is a Doosan 430 Skid steer loader (2004u20132011) worth?

The residual value of the Doosan 430 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
