289D Caterpillar 289D Specifications & Technical Data (2013—2020)

The Caterpillar 289D is a skid steer loader manufactured by Caterpillar from 2013 to 2020. It has a weight of 4.78 tons and a tran…

The Caterpillar 289D is a skid steer loader manufactured by Caterpillar from 2013 to 2020. It has a weight of 4.78 tons and a transport length of 3.71 meters. The bucket capacity is 0.48 cubic meters, with a bucket width of 1.98 meters. The maximum discharge height is 2.39 meters, and it has a travel speed of 11.3 km/h. The transport width is 1.93 meters, and the transport height is 2.11 meters. The track width is 400 millimeters, and the rated operating capacity is 1724 kilograms.

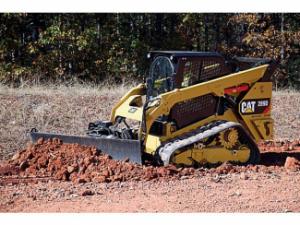

Skid Steer Loaders Caterpillar 289D
Skid Steer Loaders Caterpillar 289D
Skid Steer Loaders Caterpillar 289D
Skid Steer Loaders Caterpillar 289D
Skid Steer Loaders Caterpillar 289D
Skid Steer Loaders Caterpillar 289D

Technical specs - 289D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.78 t
Rated operating capacity
1724 kg
Track width
400 mm
Bucket width
1.98 m
Bucket capacity
0.48 m³
Driver protection
KbR
Transport length
3.71 m
Transport width
1.93 m
Transport height
2.11 m
Travel speed
11.3 km/h
Max. discharge height
2.39 m
Engine manuf.
Caterpillar
Engine type
C3.3B DIT
Engine power
54.6 kW
Displacement
3.3 l
Max. torque
257 Nm
Cylinder bore x stroke
94x120 mm
Emission level
Tier 4 f

More technical details, like: standard tyres, steering mode, lifting force, model series, dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 289D FAQ

When was the Caterpillar 289D manufactured?

The Caterpillar 289D was manufactured from 2013 to 2020.

How much does the Caterpillar 289D skid steer loader weigh?

The Caterpillar 289D skid steer loader weighs 4.78 tons.

What are the transport dimensions of the Caterpillar 289D skid steer loader?

The Caterpillar 289D has a transport length of 3.71 meters, a transport width of 1.93 meters, and a transport height of 2.11 meters.

What is the travel speed of the Caterpillar 289D skid steer loader?

The Caterpillar 289D skid steer loader has a travel speed of 11.3 km/h.

What is the track width of the Caterpillar 289D skid steer loader?

The Caterpillar 289D skid steer loader has a track width of 400 mm.

What is the material handling capacity of the Caterpillar 289D skid steer loader?

The Caterpillar 289D skid steer loader has a rated operating capacity of 1724 kg and a maximum discharge height of 2.39 meters.

What are the specifications of the primary work tool on the Caterpillar 289D skid steer loader?

The Caterpillar 289D skid steer loader has a bucket with a capacity of 0.48 cubic meters and a width of 1.98 meters.

What operator safety and support features does the Caterpillar 289D have?

The Caterpillar 289D is equipped with a cabin that includes ROPS (Roll Over Protective Structure) for driver protection.

How much is a Caterpillar 289D Skid steer loader (2013u20132020) worth?

The residual value of the Caterpillar 289D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
