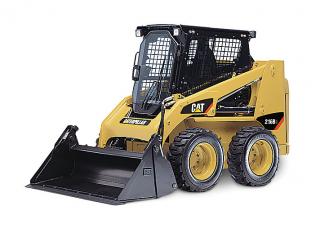

216B Serie 3 Caterpillar 216B Serie 3 Specifications & Technical Data (2016—2017)

The Caterpillar 216B Serie 3 is a skid steer loader manufactured by Caterpillar from 2016 to 2017. It has a weight of 2.58 tons an…

The Caterpillar 216B Serie 3 is a skid steer loader manufactured by Caterpillar from 2016 to 2017. It has a weight of 2.58 tons and a transport length of 3.23 meters. The bucket capacity is 0.36 cubic meters, with a bucket width of 1.52 meters. The maximum discharge height is 2.17 meters. The transport width is 1.52 meters, and the transport height is 1.95 meters. The lifting force is 18.16 kilonewtons, and the rated operating capacity is 635 kilograms.

Skid Steer Loaders Caterpillar 216B Serie 3
Skid Steer Loaders Caterpillar 216B Serie 3
Skid Steer Loaders Caterpillar 216B Serie 3
Skid Steer Loaders Caterpillar 216B Serie 3
Skid Steer Loaders Caterpillar 216B Serie 3
Skid Steer Loaders Caterpillar 216B Serie 3

Technical specs - 216B Serie 3 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.58 t
Rated operating capacity
635 kg
Standard tyres
10x16.5
Bucket width
1.52 m
Bucket capacity
0.36 m³
Driver protection
KbR
Steering mode
AL
Transport length
3.23 m
Transport width
1.52 m
Transport height
1.95 m
Travel speed
12.7 km/h
Max. discharge height
2.17 m
Lifting force
18.16 kN
Model series
3
Engine manuf.
Caterpillar
Engine type
C2.2
Engine power
35 kW
Displacement
2.2 l
Cylinder bore x stroke
84 x 100 mm
Emission level
Tier 4 i. Stage IIIA

More technical details, like: track width, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, lift geometry, access, engine manufacturer, engine model, emission rating, aspiration, rated speed...

More technical details, like: track width, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, lift geometry, access, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 216B Serie 3 FAQ

When was the Caterpillar 216B Serie 3 manufactured?

The Caterpillar 216B Serie 3 was manufactured from 2016 to 2017.

How much does the Caterpillar 216B Serie 3 skid steer loader weigh?

The Caterpillar 216B Serie 3 skid steer loader weighs 2.58 tons.

What are the transport dimensions of the Caterpillar 216B Serie 3 skid steer loader?

The Caterpillar 216B Serie 3 has a transport length of 3.23 meters, a transport width of 1.52 meters, and a transport height of 1.95 meters.

What is the travel speed of the Caterpillar 216B Serie 3 skid steer loader?

The Caterpillar 216B Serie 3 skid steer loader has a travel speed of 12.7 km/h.

What are the standard tyre specifications of the Caterpillar 216B Serie 3 skid steer loader?

The Caterpillar 216B Serie 3 skid steer loader has standard tyres sized 10x16.5.

What is the steering mode of the Caterpillar 216B Serie 3 skid steer loader?

The Caterpillar 216B Serie 3 skid steer loader has an all-wheel steering mode.

What is the lifting force of the Caterpillar 216B Serie 3 skid steer loader?

The Caterpillar 216B Serie 3 skid steer loader has a lifting force of 18.16 kN.

What is the material handling capacity of the Caterpillar 216B Serie 3 skid steer loader?

The Caterpillar 216B Serie 3 has a rated operating capacity of 635 kg and a maximum discharge height of 2.17 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 216B Serie 3 skid steer loader?

The primary work tool bucket of the Caterpillar 216B Serie 3 has a capacity of 0.36 cubic meters and a width of 1.52 meters.

What operator safety and support features does the Caterpillar 216B Serie 3 have?

The Caterpillar 216B Serie 3 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Caterpillar 216B Serie 3 Skid steer loader (2016u20132017) worth?

The residual value of the Caterpillar 216B Serie 3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
