TR310 Case TR310 Specifications & Technical Data (2015—2026)

The Case TR310 is a skid steer loader manufactured by Case since 2015. It has a weight of 4.03 tons and a transport length of 3.29…

The Case TR310 is a skid steer loader manufactured by Case since 2015. It has a weight of 4.03 tons and a transport length of 3.29 meters. The maximum discharge height is 2.49 meters and it has a travel speed of 8.2 km/h. The transport width is 1.89 meters and the transport height is 2 meters. It has a lifting force of 38.6 kN and a rated operating capacity of 1406 kg.

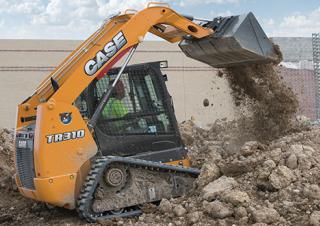

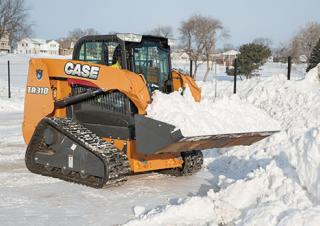

Skid Steer Loaders Case TR310
Skid Steer Loaders Case TR310
Skid Steer Loaders Case TR310
Skid Steer Loaders Case TR310

Technical specs - TR310 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.03 t
Rated operating capacity
1406 kg
Standard tyres
12.00x16.5 tyres
Transport length
3.29 m
Transport width
1.89 m
Transport height
2 m
Travel speed
8.2 km/h
Max. discharge height
2.49 m
Lifting force
38.6 kN
Engine manuf.
FPT
Engine type
F5H
Engine power
55 kW
Displacement
3.4 l
Revolutions at max torque
1400 rpm
Max. torque
314 Nm
Emission level
T4F

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, undercarriage type, lift geometry, access...

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, undercarriage type, lift geometry, access, suspension seat, telematics available, platform, security system available, engine manufacturer, engine model, emission rating, number of cylinders, emissions technology, after treatment system, aspiration, rated speed, engine output - net, engine output - gross, rated speed - torque, torque, transmission type, drive method, track rollers, track shoe width, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, track length on ground, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, ground bearing pressure, speed - maximum, breakout - lift, breakout - bucket, hydraulic power, hydraulic power - option, pump flow, pump flow - option, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case TR310 FAQ

When was the Case TR310 manufactured?

The Case TR310 was first produced in 2015.

How much does the Case TR310 skid steer loader weigh?

The Case TR310 skid steer loader weighs 4.03 tons.

What are the transport dimensions of the Case TR310 skid steer loader?

The Case TR310 skid steer loader has a transport length of 3.29 meters, a transport width of 1.89 meters, and a transport height of 2 meters.

What is the travel speed of the Case TR310 skid steer loader?

The Case TR310 skid steer loader has a travel speed of 8.2 km/h.

What are the undercarriage specifications of the Case TR310 skid steer loader?

The Case TR310 skid steer loader is equipped with standard 12.00x16.5 tyres.

What is the lifting force of the Case TR310 skid steer loader?

The Case TR310 skid steer loader has a lifting force of 38.6 kN.

What is the material handling capacity of the Case TR310 skid steer loader?

The Case TR310 skid steer loader has a rated operating capacity of 1406 kg and a maximum discharge height of 2.49 meters.
