TR 380 Case TR 380 Specifications & Technical Data (2009—2014)

The Case TR 380 is a skid steer loader manufactured by Case from 2009 to 2014. It has a weight of 4.62 tons and a transport length…

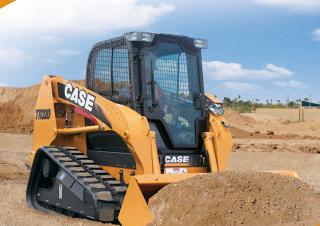

The Case TR 380 is a skid steer loader manufactured by Case from 2009 to 2014. It has a weight of 4.62 tons and a transport length of 2.95 meters. The maximum discharge height of this machine is 2.6 meters, while the transport height is 2.04 meters. It has a rated operating capacity of 1723 kilograms.

Skid Steer Loaders Case TR 380

Technical specs - TR 380 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.62 t
Rated operating capacity
1723 kg
Driver protection
Kb
Transport length
2.95 m
Transport height
2.04 m
Max. discharge height
2.6 m
Engine manuf.
Case
Engine type
432T-M3
Engine power
67 kW
Displacement
3.2 l
Revolutions at max torque
2500 rpm

More technical details, like: track width, standard tyres, bucket width, bucket capacity, steering mode, transport width, travel speed, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: track width, standard tyres, bucket width, bucket capacity, steering mode, transport width, travel speed, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case TR 380 FAQ

When was the Case TR 380 manufactured?

The Case TR 380 was manufactured from 2009 to 2014.

How much does the Case TR 380 skid steer loader weigh?

The Case TR 380 skid steer loader weighs 4.62 tons.

What are the transport dimensions of the Case TR 380 skid steer loader?

The Case TR 380 has a transport length of 2.95 meters and a transport height of 2.04 meters.

What is the material handling capacity of the Case TR 380 skid steer loader?

The Case TR 380 skid steer loader has a rated operating capacity of 1723 kilograms.

What driver protection feature does the Case TR 380 have?

The Case TR 380 has a cabin for driver protection.

How much is a Case TR 380 Skid steer loader (2009u20132014) worth?

The residual value of the Case TR 380 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case TR 380 overview

Case TR 380 features overview

Dozer-style undercarriage

Our dozer-style undercarriage is engineered to hold fast on steep slopes and take command of muddy or sandy terrain. The undercarriage has a rigid track frame with fewer moving parts, so it is more durable and easier to maintain than suspension track systems. The technology on our rollers and idlers reduces maintenance costs and increases undercarriage life. Plus, our new, narrow chassis width makes it easy to load and unload on trailers.


Operator environment

Comfort for the long haul

There’s no comparison. Our engineers designed a cab that delivers more room, visibility, comfort and control. Not only are they as much as 25 percent larger, but they also feature dozens of upgrades, such as optional heated air-suspension seats, air conditioning, a removable front door and side windows. Our revolutionary ultra-narrow wire side-screen design and larger glass windows give you more visibility. With the Case-exclusive side lighting, you’ll get more done – day or night.


Frame / loader / backhoes

Get more done

Climb inside a new Case compact track loader (CTL) and you’ll feel the difference. Engineered from the ground up, this new line-up of equipment delivers more power. And that’s just the start. Our new CTLs deliver exceptional bucket breakout force (up to 8,585 lb) and hinge-pin height. All three models deliver superior horsepower, giving you the muscle to get the job done faster. Plus, they’ll run all day long, thanks to improved fuel efficiency and new 20- to 25.5-gallon fuel tanks. One demonstration will prove it’s time to trade up.


Muscle to spare

Case compact track loaders have the muscle to get the job done – with rated operating capacities up to 4,200 pounds. Our radial-lift TR270 and TR320 models are engineered for digging, prying and pushing, while the vertical-lift TV380 is for load-and-carry jobs. Plus, we deliver superior hinge pin height – which positions the bucket higher to load trucks faster and easier.
