TL100 Case TL100 Specifications & Technical Data (2024—2026)

Weight: 1.716t – Rated operating capacity: 500kg – Track width: 1026mm – Bucket width: 1.067m – Transport length: 2.155m – Transport width: 1.067m

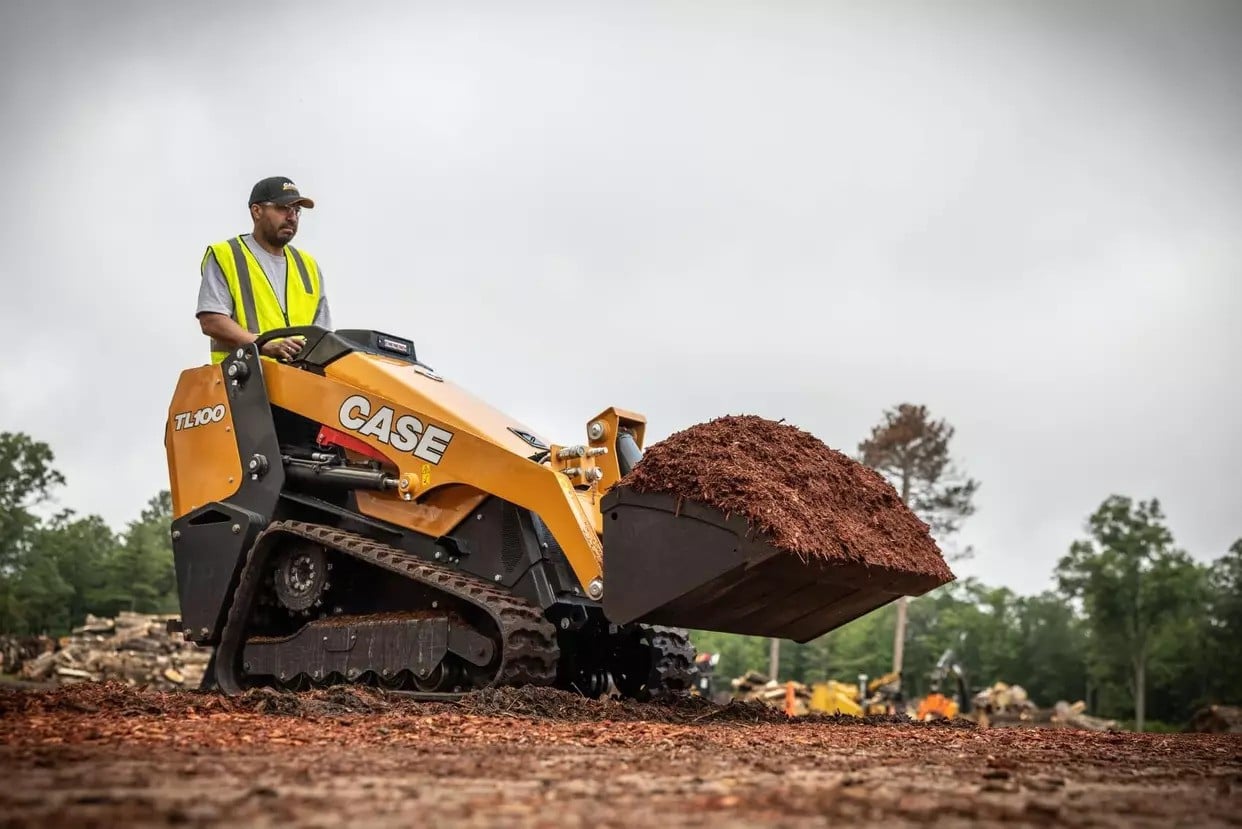

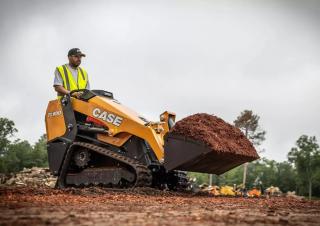

Skid Steer Loaders Case TL100

Technical specs - TL100 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.716 t
Rated operating capacity
500 kg
Track width
1026 mm
Bucket width
1.067 m
Transport length
2.155 m
Transport width
1.067 m
Transport height
1.435 m
Travel speed
7,5 km/h
Max. discharge height
1.549 m
Model series
MTL
Engine manuf.
Kubota
Engine type
D1305-E4B
Engine power
18 kW
Displacement
1.2 l
Max. torque
80,1/1700 Nm
No. of cylinders
3
Emission level
Stage V

More technical details, like: standard tyres, bucket capacity, driver protection, steering mode, lifting force, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Case TL100 FAQ

When was the Case TL100 manufactured?

The Case TL100 was first produced in 2024.

How much does the Case TL100 skid steer loader weigh?

The Case TL100 skid steer loader weighs 1.716 tons.

What are the transport dimensions of the Case TL100 skid steer loader?

The Case TL100 skid steer loader has a transport length of 2.155 meters, a transport width of 1.067 meters, and a transport height of 1.435 meters.

What is the travel speed of the Case TL100 skid steer loader?

The Case TL100 skid steer loader has a travel speed of 75 km/h.

What is the track width of the Case TL100 skid steer loader?

The Case TL100 skid steer loader has a track width of 1026 mm.

What is the material handling capacity of the Case TL100 skid steer loader?

The Case TL100 skid steer loader has a rated operating capacity of 500 kilograms.

What is the bucket width of the Case TL100 skid steer loader?

The bucket width of the Case TL100 skid steer loader is 1.067 meters.
