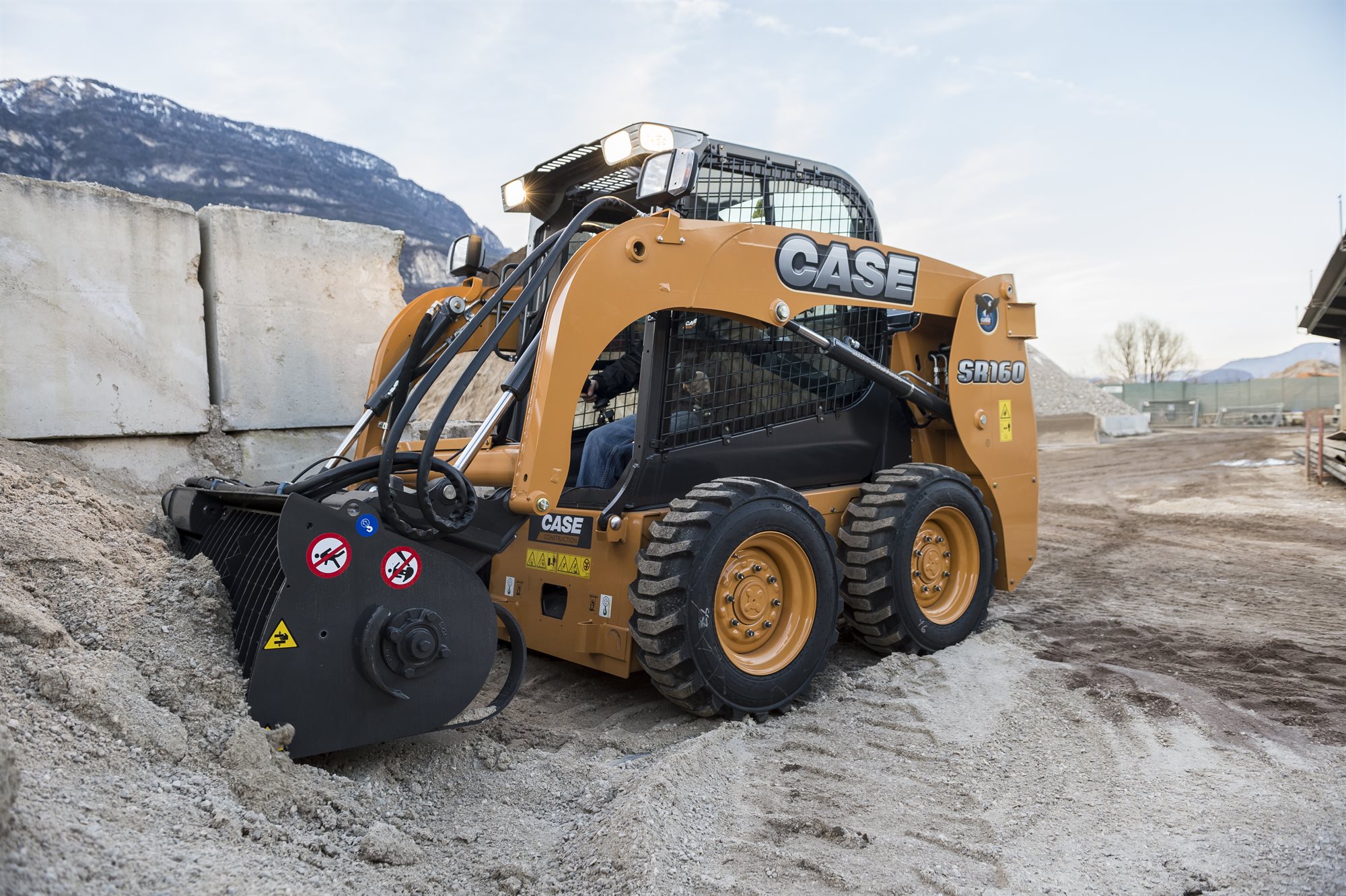

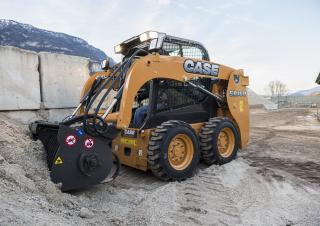

SR160 Case SR160 Specifications & Technical Data (2013—2026)

The Case SR160 Skid Steer Loader, manufactured since 2013, has a weight of 2.505 tons. It has a transport length of 2.44 meters an…

The Case SR160 Skid Steer Loader, manufactured since 2013, has a weight of 2.505 tons. It has a transport length of 2.44 meters and a travel speed of 12 km/h. The transport width is 1.5 meters and the transport height is 3.59 meters. It has a rated operating capacity of 725.76 kilograms.

Skid Steer Loaders Case SR160

Technical specs - SR160 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.505 t
Rated operating capacity
725.76 kg
Standard tyres
10X16.5
Transport length
2.44 m
Transport width
1.5 m
Transport height
3.59 m
Travel speed
12 km/h
Engine manuf.
ISM
Engine type
N844T
Engine power
44.7 kW
Displacement
2.2 l
Max. torque
171 Nm
No. of cylinders
4

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case SR160 FAQ

When was the Case SR160 manufactured?

The Case SR160 was first produced in 2013.

How much does the Case SR160 skid steer loader weigh?

The Case SR160 skid steer loader weighs 2.51 tons.

What are the transport dimensions of the Case SR160 skid steer loader?

The Case SR160 skid steer loader has a transport length of 2.44 meters, a transport width of 1.5 meters, and a transport height of 3.59 meters.

What is the travel speed of the Case SR160 skid steer loader?

The Case SR160 skid steer loader has a travel speed of 12 km/h.

What are the undercarriage specifications of the Case SR160 skid steer loader?

The Case SR160 skid steer loader has standard tyres sized 10X16.5.

What is the rated operating capacity of the Case SR160 skid steer loader?

The Case SR160 skid steer loader has a rated operating capacity of 725.76 kilograms.

How much is a Case SR160 Skid steer loader (2013u20132025) worth?

The residual value of the Case SR160 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
