SR160 Case SR160 Specifications & Technical Data (2014—2026)

The Case SR160 is a skid steer loader manufactured by Case since 2014. It has a weight of 2.51 tons and a transport length of 3.03…

The Case SR160 is a skid steer loader manufactured by Case since 2014. It has a weight of 2.51 tons and a transport length of 3.03 meters. The maximum discharge height is 2.25 meters, and it has a travel speed of 11.9 km/h. The transport width is 1.52 meters, and the transport height is 1.92 meters. The lifting force is 23.4 kilonewtons, and the rated operating capacity is 725 kilograms.

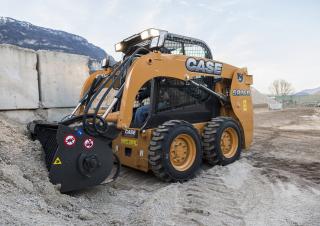

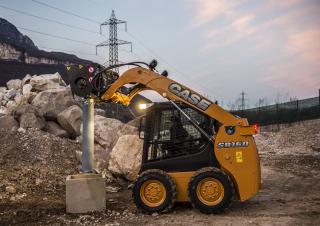

Skid Steer Loaders Case SR160
Skid Steer Loaders Case SR160
Skid Steer Loaders Case SR160
Skid Steer Loaders Case SR160
Skid Steer Loaders Case SR160
Skid Steer Loaders Case SR160
Skid Steer Loaders Case SR160
Skid Steer Loaders Case SR160

Technical specs - SR160 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.51 t
Rated operating capacity
725 kg
Standard tyres
10X16.5 Heavy Duty 59OTW
Transport length
3.03 m
Transport width
1.52 m
Transport height
1.92 m
Travel speed
11.9 km/h
Max. discharge height
2.25 m
Lifting force
23.4 kN
Engine manuf.
ISM
Engine type
N844 LT-F IDI
Engine power
45 kW
Displacement
2.2 l
Revolutions at max torque
1800 rpm
Max. torque
188 Nm
Emission level
T4F

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, lift geometry, access, rating standard - rops...

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, platform, security system available, engine manufacturer, engine model, emission rating, emissions technology, after treatment system, after treatment system 2, aspiration, rated speed, engine output - net, engine output - gross, torque, transmission type, drive chain rating [ansi], tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, lift height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, hydraulic power, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case SR160 FAQ

When was the Case SR160 manufactured?

The Case SR160 was first produced in 2014.

How much does the Case SR160 skid steer loader weigh?

The Case SR160 skid steer loader weighs 2.51 tons.

What are the transport dimensions of the Case SR160 skid steer loader?

The Case SR160 skid steer loader has a transport length of 3.03 meters, a transport width of 1.52 meters, and a transport height of 1.92 meters.

What is the travel speed of the Case SR160 skid steer loader?

The Case SR160 skid steer loader has a travel speed of 11.9 km/h.

What are the undercarriage specifications of the Case SR160 skid steer loader?

The Case SR160 skid steer loader comes equipped with 10X16.5 Heavy Duty 59OTW standard tyres.

What is the lifting force of the Case SR160 skid steer loader?

The Case SR160 skid steer loader has a lifting force of 23.4 kN.

What is the material handling capacity of the Case SR160 skid steer loader?

The Case SR160 skid steer loader has a rated operating capacity of 725 kilograms.

How much is a Case SR160 Skid steer loader (2014u20132025) worth?

The residual value of the Case SR160 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case SR160 overview

Case SR160 features overview

Radial and Vertical Boom

To deliver Case specific performance and productivity to an ever wider range of customers, Case Construction Equipment has expanded its skid steer and compact track loader line-up. The revised range includes six radial lift skid steers (SR models), three radial lift compact track loaders (TR models), three vertical lift skid steers (SV models), and one vertical lift compact track loader (TV model).


Simple and robust undercarriage

The new Case compact track loaders feature a robust undercarriage, engineered to hold fast on steep slopes and take command of muddy or sandy terrain. The undercarriage has a rigid-track frame with fewer moving parts for greater durability and easier maintenance than suspension-track systems.


High Versatility

Case skid steer loaders and compact track loaders can handle a broad range of attachments, providing outstanding versatility to serve a broad range of industries.


Operator environment

HIGH VISIBILITY Wider glazed surface for safer operations

The large glazed surface with ultra-narrow wire side screens, the lowered threshold and thinner front pillars provide the best visibility in the market (ROPS / FOPS cab).


25% wider cab

It's not just the range that has expanded: all models benefit from a cab with up to 25% more internal width, providing greatly improved operator comfort. Our cab - the widest in the industry - provides plenty of room for comfortable operation, with greater headroom and legroom, more space between the control levers and easy access to the seat.


Mechanical or Electro Hydraulic controls

All controls are within easy reach and you can choose among mechanical hand drive levers or mechanical foot drive pedals, or electro-hydraulic controls.


Drive system

HIGH ROC with bolt-on counterweights

Simply bolt on additional counterweights to the rear sides of the machine. Increase ROC by adding counterweights to move more material, more quickly. Decrease ROC by operating without counterweights to keep fuel costs down and decrease ground disturbance.


Safe and easy maintenance

With just two retaining bolts, the cab is easy to tilt, providing access to hydraulic and transmission components when necessary. A safety locking system that prevents the cab from dropping is automatically activated.


Smart battery and drain hoses access

Battery and environmental drain hoses are easily accessible from the side of the machine. By removing a tap located behind the rear wheel, quick service and fast maintenance activities are facilitated.


Frame / loader / backhoes

OUTSTANDING STABILITY with Case power stance chassis

Our power stance chassis rides on a 21 percent longer wheelbase, delivering greater stability and comfort and allowing increased lifting capabilities, regardless of jobsite conditions.


TOP RANKING BREAKOUT FORCE Case cylinder and chassis design provides maximised pushing power

The cylinder geometry optimises the skid steer and compact track loader’s push and pull power, while the bucket support baring directly on the chassis of the machine further adds to its pushing power.


Optimised shock absorption

Comfort goes with productivity with CASE patented Ride Control. This optional feature is a shock absorber which reduces loader arm bouncing at elevated speed for greater material retention and increased operator comfort. More material moved, more quickly.
