1825 Case 1825 Specifications & Technical Data (1995—1996)

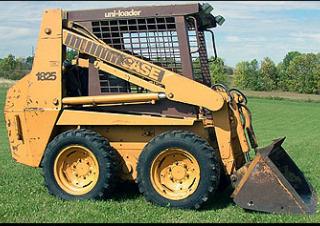

The Case 1825 is a skid steer loader manufactured by Case from 1995 to 1996. It has a weight of 1.4 tons and a transport length of…

The Case 1825 is a skid steer loader manufactured by Case from 1995 to 1996. It has a weight of 1.4 tons and a transport length of 2.77 meters. The bucket capacity is 0.2 cubic meters, and the transport width is 1 meter. The transport height is 1.79 meters. The rated operating capacity of this construction machine is 401 kilograms.

Skid Steer Loaders Case 1825

Technical specs - 1825 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.4 t
Rated operating capacity
401 kg
Standard tyres
5.70-15
Bucket capacity
0.2 m³
Driver protection
KbR
Transport length
2.77 m
Transport width
1 m
Transport height
1.79 m
Travel speed
7.7 km/h
Engine manuf.
Kubota
Engine type
V1100B
Engine power
18 kW

More technical details, like: track width, bucket width, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case 1825 FAQ

When was the Case 1825 skid steer loader manufactured?

The Case 1825 skid steer loader was manufactured from 1995 to 1996.

How much does the Case 1825 skid steer loader weigh?

The Case 1825 skid steer loader weighs 1.4 tons.

What are the transport dimensions of the Case 1825 skid steer loader?

The Case 1825 skid steer loader has a transport length of 2.77 meters, a transport width of 1 meter, and a transport height of 1.79 meters.

What is the travel speed of the Case 1825 skid steer loader?

The Case 1825 skid steer loader has a travel speed of 7.7 km/h.

What is the standard tyre size of the Case 1825 skid steer loader?

The Case 1825 skid steer loader is equipped with standard tyres sized 5.70-15.

What is the material handling capacity of the Case 1825 skid steer loader?

The Case 1825 skid steer loader has a rated operating capacity of 401 kg.

What is the bucket capacity of the Case 1825 skid steer loader?

The Case 1825 skid steer loader has a bucket capacity of 0.2 cubic meters.

What operator safety and support features does the Case 1825 skid steer loader have?

The Case 1825 skid steer loader is equipped with a cabin that includes ROPS (Roll Over Protective Structure) for driver protection.

How much is a Case 1825 Skid steer loader (1995u20131996) worth?

The residual value of the Case 1825 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
