T770 Bobcat T770 Specifications & Technical Data (2017—2026)

The Bobcat T770 is a skid steer loader manufactured by Bobcat since 2017. It has a weight of 4.31 tons and a transport length of 2…

The Bobcat T770 is a skid steer loader manufactured by Bobcat since 2017. It has a weight of 4.31 tons and a transport length of 2.93 meters. The bucket capacity is 1.4 cubic meters with a width of 2.03 meters. The maximum discharge height is 2.65 meters. It has a travel speed of 17.2 km/h and a transport width of 1.98 meters. The transport height is 2.06 meters and the track width is 450 mm. The rated operating capacity is 1611 kg.

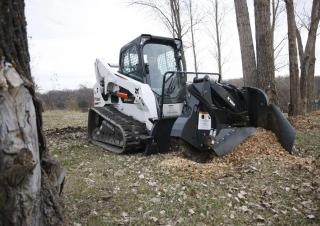

Skid Steer Loaders Bobcat T770
Skid Steer Loaders Bobcat T770
Skid Steer Loaders Bobcat T770
Skid Steer Loaders Bobcat T770
Skid Steer Loaders Bobcat T770
Skid Steer Loaders Bobcat T770

Visit Bobcat live at

Technical specs - T770 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.31 t
Rated operating capacity
1611 kg
Track width
450 mm
Bucket width
2.03 m
Bucket capacity
1.4 m³
Driver protection
KbR
Transport length
2.93 m
Transport width
1.98 m
Transport height
2.06 m
Travel speed
17.2 km/h
Max. discharge height
2.65 m
Model series
T
Engine manuf.
Bobcat
Engine type
D34
Engine power
68.7 kW
Displacement
3.409 l
Revolutions at max torque
2400 rpm
Max. torque
355.3/1600 Nm
No. of cylinders
4
Emission level
IV

More technical details, like: standard tyres, steering mode, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Bobcat T770 FAQ

When was the Bobcat T770 manufactured?

The Bobcat T770 was first produced in 2017.

How much does the Bobcat T770 skid steer loader weigh?

The Bobcat T770 skid steer loader weighs 4.31 tons.

What are the transport dimensions of the Bobcat T770 skid steer loader?

The Bobcat T770 has a transport length of 2.93 meters, a transport width of 1.98 meters, and a transport height of 2.06 meters.

What is the travel speed of the Bobcat T770 skid steer loader?

The Bobcat T770 has a travel speed of 17.2 km/h.

What is the track width of the Bobcat T770 skid steer loader?

The Bobcat T770 skid steer loader has a track width of 450 mm.

What is the material handling capacity of the Bobcat T770 skid steer loader?

The Bobcat T770 skid steer loader has a rated operating capacity of 1611 kg and a maximum discharge height of 2.65 meters.

What are the specifications of the primary work tool bucket on the Bobcat T770?

The Bobcat T770's primary work tool bucket has a capacity of 1.4 cubic meters and a width of 2.03 meters.

What operator safety and support features does the Bobcat T770 have?

The Bobcat T770 is equipped with a cabin that includes ROPS (Roll Over Protective Structure) for driver protection.

How much is a Bobcat T770 Skid steer loader (2017u20132025) worth?

The residual value of the Bobcat T770 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
