S850 Bobcat S850 Specifications & Technical Data (2011—2017)

Model rating
6,00 / 10

The Bobcat S850 is a skid steer loader manufactured by Bobcat from 2011 to 2017. It has a weight of 4.54 tons and a transport leng…

The Bobcat S850 is a skid steer loader manufactured by Bobcat from 2011 to 2017. It has a weight of 4.54 tons and a transport length of 3.75 meters. The bucket capacity is 1.4 cubic meters with a width of 2.03 meters. The maximum discharge height is 2.951 meters. The transport width is 2.01 meters and the transport height is 2.12 meters. It has a rated operating capacity of 1850 kilograms.

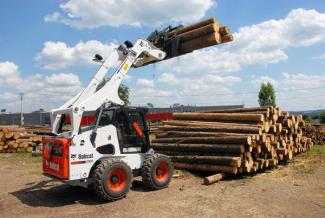

Skid Steer Loaders Bobcat S850
Skid Steer Loaders Bobcat S850
Skid Steer Loaders Bobcat S850
Skid Steer Loaders Bobcat S850
Skid Steer Loaders Bobcat S850
Skid Steer Loaders Bobcat S850
Skid Steer Loaders Bobcat S850
Skid Steer Loaders Bobcat S850
Skid Steer Loaders Bobcat S850
Skid Steer Loaders Bobcat S850
Skid Steer Loaders Bobcat S850
Skid Steer Loaders Bobcat S850

Visit Bobcat live at

Technical specs - S850 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.54 t
Rated operating capacity
1850 kg
Standard tyres
14.00-17.5 12 PR
Bucket width
2.03 m
Bucket capacity
1.4 m³
Driver protection
KbR
Transport length
3.75 m
Transport width
2.01 m
Transport height
2.12 m
Travel speed
19.8 km/h
Max. discharge height
2.951 m
Model series
S
Engine manuf.
Kubota
Engine type
V3800DI-TE3
Engine power
69 kW
Displacement
3.77 l
Revolutions at max torque
1600 rpm

More technical details, like: track width, steering mode, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, rating standard - rops, rating standard - fops...

More technical details, like: track width, steering mode, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, engine manufacturer, engine model, aspiration, rated speed, engine output - gross, torque, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, hydraulic power, hydraulic power - option, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Bobcat S850 FAQ

When was the Bobcat S850 manufactured?

The Bobcat S850 was manufactured from 2011 to 2017.

How much does the Bobcat S850 weigh?

The Bobcat S850 weighs 4.54 tons.

What are the transport dimensions of the Bobcat S850 skid steer loader?

The Bobcat S850 has a transport length of 3.75 meters, a transport width of 2.01 meters, and a transport height of 2.12 meters.

What is the travel speed of the Bobcat S850 skid steer loader?

The Bobcat S850 has a travel speed of 19.8 km/h.

What are the undercarriage specifications of the Bobcat S850 skid steer loader?

The Bobcat S850 skid steer loader is equipped with standard tyres sized 14.00-17.5 12 PR.

What is the material handling capacity of the Bobcat S850 skid steer loader?

The Bobcat S850 skid steer loader has a rated operating capacity of 1850 kg and a maximum discharge height of 2.95 meters.

What are the specifications of the primary work tool on the Bobcat S850 skid steer loader?

The Bobcat S850 skid steer loader has a bucket with a capacity of 1.4 cubic meters and a width of 2.03 meters.

What operator safety and support features does the Bobcat S850 have?

The Bobcat S850 is equipped with a cabin that includes ROPS (Roll Over Protective Structure) for driver protection.

How much is a Bobcat S850 Skid steer loader (2011u20132017) worth?

The residual value of the Bobcat S850 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
