S70 Bobcat S70 Specifications & Technical Data (2017—2026)

The Bobcat S70 is a compact skid steer loader manufactured by Bobcat since 2017. It has a weight of 1.27 tons and a transport leng…

The Bobcat S70 is a compact skid steer loader manufactured by Bobcat since 2017. It has a weight of 1.27 tons and a transport length of 2.472 meters. The bucket capacity is 1.557 cubic meters with a width of 0.914 meters. The maximum discharge height is 1.934 meters. It has a travel speed of 9.8 km/h and a transport width of 0.901 meters. The transport height is 1.814 meters. The rated operating capacity is 344 kilograms.

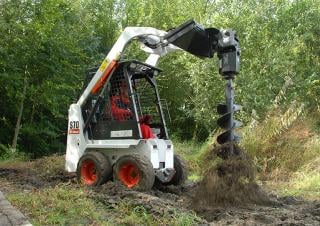

Skid Steer Loaders Bobcat S70
Skid Steer Loaders Bobcat S70
Skid Steer Loaders Bobcat S70
Skid Steer Loaders Bobcat S70
Skid Steer Loaders Bobcat S70
Skid Steer Loaders Bobcat S70
Skid Steer Loaders Bobcat S70
Skid Steer Loaders Bobcat S70

Visit Bobcat live at

Technical specs - S70 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.27 t
Rated operating capacity
344 kg
Standard tyres
23x5.70-12 4–ply
Bucket width
0.914 m
Bucket capacity
1.557 m³
Driver protection
KbR
Steering mode
AL
Transport length
2.472 m
Transport width
0.901 m
Transport height
1.814 m
Travel speed
9.8 km/h
Max. discharge height
1.934 m
Model series
S
Engine manuf.
Kubota
Engine type
D1005-E4B-BC-3
Engine power
17.5 kW
Displacement
1.001 l
Revolutions at max torque
2400 rpm
Max. torque
63.8/1425 Nm
No. of cylinders
3
Emission level
IV

More technical details, like: track width, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Bobcat S70 FAQ

When was the Bobcat S70 manufactured?

The Bobcat S70 was first produced in 2017.

How much does the Bobcat S70 skid steer loader weigh?

The Bobcat S70 skid steer loader weighs 1.27 tons.

What are the transport dimensions of the Bobcat S70 skid steer loader?

The Bobcat S70 has a transport length of 2.47 meters, a transport width of 0.9 meters, and a transport height of 1.81 meters.

What is the travel speed of the Bobcat S70 skid steer loader?

The Bobcat S70 has a travel speed of 9.8 km/h.

What are the undercarriage specifications of the Bobcat S70 skid steer loader?

The Bobcat S70 skid steer loader is equipped with standard tyres sized 23x5.70-12 4u2013ply.

What is the steering mode of the Bobcat S70 skid steer loader?

The Bobcat S70 skid steer loader has an all-wheel steering mode.

What is the material handling capacity of the Bobcat S70 skid steer loader?

The Bobcat S70 skid steer loader has a rated operating capacity of 344 kg and a maximum discharge height of 1.93 meters.

What are the specifications of the primary work tool bucket on the Bobcat S70 skid steer loader?

The Bobcat S70 skid steer loader has a bucket with a capacity of 1.56 cubic meters and a width of 0.91 meters.

What operator safety and support features does the Bobcat S70 have?

The Bobcat S70 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Bobcat S70 Skid steer loader (2017u20132025) worth?

The residual value of the Bobcat S70 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
