S70 Bobcat S70 Specifications & Technical Data (2008—2017)

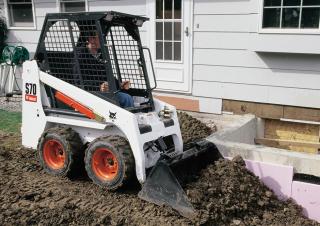

The Bobcat S70 is a skid steer loader manufactured by Bobcat from 2008 to 2017. It has a weight of 1.27 tons and a transport lengt…

The Bobcat S70 is a skid steer loader manufactured by Bobcat from 2008 to 2017. It has a weight of 1.27 tons and a transport length of 2.55 meters. The bucket width is 0.91 meters, and the maximum discharge height is 1.89 meters. The transport width is 0.9 meters, and the transport height is 1.91 meters. The rated operating capacity of this construction machine is 318 kilograms.

Skid Steer Loaders Bobcat S70
Skid Steer Loaders Bobcat S70
Skid Steer Loaders Bobcat S70
Skid Steer Loaders Bobcat S70
Skid Steer Loaders Bobcat S70
Skid Steer Loaders Bobcat S70

Visit Bobcat live at

Technical specs - S70 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.27 t
Rated operating capacity
318 kg
Standard tyres
23x8.50-12
Bucket width
0.91 m
Driver protection
KbR
Transport length
2.55 m
Transport width
0.9 m
Transport height
1.91 m
Travel speed
9.8 km/h
Max. discharge height
1.89 m
Model series
S
Engine manuf.
Kubota
Engine type
D1005E3B
Engine power
16.8 kW
Displacement
1.001 l
Revolutions at max torque
2200 rpm

More technical details, like: track width, bucket capacity, steering mode, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer...

More technical details, like: track width, bucket capacity, steering mode, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, torque, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, hydraulic power, pump flow, system pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Bobcat S70 FAQ

When was the Bobcat S70 manufactured?

The Bobcat S70 was manufactured from 2008 to 2017.

How much does the Bobcat S70 skid steer loader weigh?

The Bobcat S70 skid steer loader weighs 1.27 tons.

What are the transport dimensions of the Bobcat S70 skid steer loader?

The Bobcat S70 has a transport length of 2.55 meters, a transport width of 0.9 meters, and a transport height of 1.91 meters.

What is the travel speed of the Bobcat S70 skid steer loader?

The Bobcat S70 has a travel speed of 9.8 km/h.

What are the standard tyre specifications of the Bobcat S70 skid steer loader?

The Bobcat S70 skid steer loader has standard tyres sized 23x8.50-12.

What is the material handling capacity of the Bobcat S70 skid steer loader?

The Bobcat S70 has a rated operating capacity of 318 kg and a maximum discharge height of 1.89 meters.

What is the bucket width of the Bobcat S70 skid steer loader?

The Bobcat S70 skid steer loader has a bucket width of 0.91 meters.

What operator safety and support features does the Bobcat S70 have?

The Bobcat S70 is equipped with a cabin that includes ROPS (Roll Over Protective Structure) for driver protection.

How much is a Bobcat S70 Skid steer loader (2008u20132017) worth?

The residual value of the Bobcat S70 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
