S530 Bobcat S530 Specifications & Technical Data (2020—2026)

The Bobcat S530 is a skid steer loader manufactured since 2020. It has a weight of 2.581 tons and a transport length of 2.657 mete…

The Bobcat S530 is a skid steer loader manufactured since 2020. It has a weight of 2.581 tons and a transport length of 2.657 meters. The bucket capacity is 0.93 cubic meters with a width of 1.73 meters. The maximum discharge height is 2.32 meters. It has a travel speed of 17.3 km/h and a transport width of 1.643 meters. The transport height is 1.97 meters. The rated operating capacity is 911 kilograms.

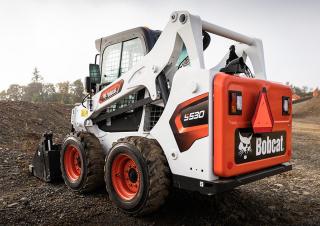

Skid Steer Loaders Bobcat S530
Skid Steer Loaders Bobcat S530
Skid Steer Loaders Bobcat S530
Skid Steer Loaders Bobcat S530
Skid Steer Loaders Bobcat S530
Skid Steer Loaders Bobcat S530

Visit Bobcat live at

Technical specs - S530 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.581 t
Rated operating capacity
911 kg
Standard tyres
10.00-16.5 10 PR
Bucket width
1.73 m
Bucket capacity
0.93 m³
Driver protection
KbR
Transport length
2.657 m
Transport width
1.643 m
Transport height
1.97 m
Travel speed
17.3 km/h
Max. discharge height
2.32 m
Model series
S
Engine manuf.
Bobcat
Engine type
D24
Engine power
41 kW
Displacement
2.393 l
Revolutions at max torque
2600 rpm
Max. torque
204.2/1800 Nm
No. of cylinders
4
Emission level
V

More technical details, like: track width, steering mode, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Bobcat S530 FAQ

When was the Bobcat S530 manufactured?

The Bobcat S530 was first produced in 2020.

How much does the Bobcat S530 weigh?

The Bobcat S530 weighs 2.58 tons.

What are the transport dimensions of the Bobcat S530 skid steer loader?

The Bobcat S530 has a transport length of 2.66 meters, a transport width of 1.64 meters, and a transport height of 1.97 meters.

What is the travel speed of the Bobcat S530 skid steer loader?

The Bobcat S530 has a travel speed of 17.3 km/h.

What are the undercarriage tyre specifications of the Bobcat S530 skid steer loader?

The Bobcat S530 skid steer loader is equipped with standard tyres sized 10.00-16.5 10 PR.

What is the material handling capacity of the Bobcat S530 skid steer loader?

The Bobcat S530 has a rated operating capacity of 911 kg and a maximum discharge height of 2.32 meters.

What are the specifications of the primary work tool bucket on the Bobcat S530?

The Bobcat S530 has a bucket with a capacity of 0.93 cubic meters and a width of 1.73 meters.

What operator safety and support features does the Bobcat S530 have?

The Bobcat S530 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Bobcat S530 Skid steer loader (2020u20132025) worth?

The residual value of the Bobcat S530 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
