S100 Bobcat S100 Specifications & Technical Data (2017—2021)

The Bobcat S100 is a compact skid steer loader manufactured by Bobcat from 2017 to 2021. It has a weight of 1.86 tons and a transp…

The Bobcat S100 is a compact skid steer loader manufactured by Bobcat from 2017 to 2021. It has a weight of 1.86 tons and a transport length of 2.8 meters. The bucket capacity is 1.731 cubic meters with a width of 1.27 meters. The maximum discharge height is 2.084 meters. It has a travel speed of 10.4 km/h and a transport width of 1.167 meters. The transport height is 1.878 meters. The rated operating capacity is 457 kilograms.

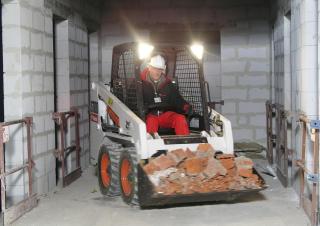

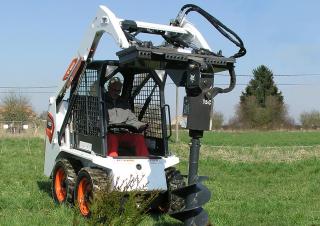

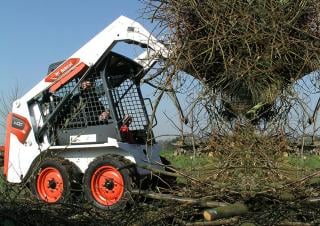

Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100

Visit Bobcat live at

Technical specs - S100 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.86 t
Rated operating capacity
457 kg
Standard tyres
27x8.50-15 6–ply
Bucket width
1.27 m
Bucket capacity
1.731 m³
Driver protection
KbR
Steering mode
AL
Transport length
2.8 m
Transport width
1.167 m
Transport height
1.878 m
Travel speed
10.4 km/h
Max. discharge height
2.084 m
Model series
S
Engine manuf.
Kubota
Engine type
V1505-E2B-BCZ
Engine power
25 kW
Displacement
1.498 l
Revolutions at max torque
1700 rpm
Max. torque
93 Nm
No. of cylinders
4

More technical details, like: track width, lifting force, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Bobcat S100 FAQ

When was the Bobcat S100 manufactured?

The Bobcat S100 was manufactured from 2017 to 2021.

How much does the Bobcat S100 skid steer loader weigh?

The Bobcat S100 skid steer loader weighs 1.86 tons.

What are the transport dimensions of the Bobcat S100 skid steer loader?

The Bobcat S100 has a transport length of 2.8 meters, a transport width of 1.17 meters, and a transport height of 1.88 meters.

What is the travel speed of the Bobcat S100 skid steer loader?

The Bobcat S100 has a travel speed of 10.4 km/h.

What are the undercarriage specifications of the Bobcat S100?

The Bobcat S100 has standard tyres sized 27x8.50-15 6-ply.

What is the steering mode of the Bobcat S100 skid steer loader?

The Bobcat S100 skid steer loader has an all-wheel steering mode.

What is the material handling capacity of the Bobcat S100 skid steer loader?

The Bobcat S100 skid steer loader has a rated operating capacity of 457 kg and a maximum discharge height of 2.08 meters.

What are the specifications of the primary work tool on the Bobcat S100 skid steer loader?

The primary work tool of the Bobcat S100 skid steer loader has a bucket capacity of 1.73 cubic meters and a bucket width of 1.27 meters.

What operator safety and support features does the Bobcat S100 have?

The Bobcat S100 is equipped with a cabin that includes ROPS for driver protection.

How much is a Bobcat S100 Skid steer loader (2017u20132021) worth?

The residual value of the Bobcat S100 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
