S100 Bobcat S100 Specifications & Technical Data (2007—2017)

The Bobcat S100 is a skid steer loader manufactured by Bobcat from 2007 to 2017. It has a weight of 1.8 tons and a transport lengt…

The Bobcat S100 is a skid steer loader manufactured by Bobcat from 2007 to 2017. It has a weight of 1.8 tons and a transport length of 2.93 meters. The bucket capacity is 0.45 cubic meters with a width of 1.267 meters. The maximum discharge height is 1.971 meters. The transport width is 1.27 meters and the transport height is 1.88 meters. The rated operating capacity is 457 kilograms.

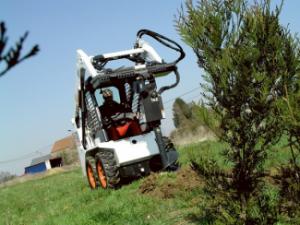

Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100
Skid Steer Loaders Bobcat S100

Visit Bobcat live at

Technical specs - S100 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.8 t
Rated operating capacity
457 kg
Standard tyres
27x8.50-15
Bucket width
1.267 m
Bucket capacity
0.45 m³
Driver protection
KbR
Transport length
2.93 m
Transport width
1.27 m
Transport height
1.88 m
Travel speed
10.4 km/h
Max. discharge height
1.971 m
Model series
S
Engine manuf.
Kubota
Engine type
V1505E28
Engine power
25 kW
Displacement
1.498 l
Revolutions at max torque
1700 rpm

More technical details, like: track width, steering mode, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, rating standard - rops, rating standard - fops...

More technical details, like: track width, steering mode, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, security system available, emission rating, aspiration, engine output - gross, transmission type, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, wheelbase, height to hinge pin, reach - max dump height, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, hydraulic power, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Bobcat S100 FAQ

When was the Bobcat S100 manufactured?

The Bobcat S100 was manufactured from 2007 to 2017.

How much does the Bobcat S100 weigh?

The Bobcat S100 weighs 1.8 tons.

What are the transport dimensions of the Bobcat S100 skid steer loader?

The Bobcat S100 has a transport length of 2.93 meters, a transport width of 1.27 meters, and a transport height of 1.88 meters.

What is the travel speed of the Bobcat S100 skid steer loader?

The Bobcat S100 has a travel speed of 10.4 km/h.

What are the undercarriage specifications of the Bobcat S100 skid steer loader?

The Bobcat S100 skid steer loader is equipped with standard tyres sized 27x8.50-15.

What is the material handling capacity of the Bobcat S100 skid steer loader?

The Bobcat S100 has a rated operating capacity of 457 kg and a maximum discharge height of 1.97 meters.

What are the specifications of the primary work tool bucket on the Bobcat S100?

The Bobcat S100 has a bucket with a capacity of 0.45 cubic meters and a width of 1.27 meters.

What operator safety and support features does the Bobcat S100 have?

The Bobcat S100 is equipped with a cabin that includes ROPS (Roll Over Protective Structure) for driver protection.

How much is a Bobcat S100 Skid steer loader (2007u20132017) worth?

The residual value of the Bobcat S100 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
