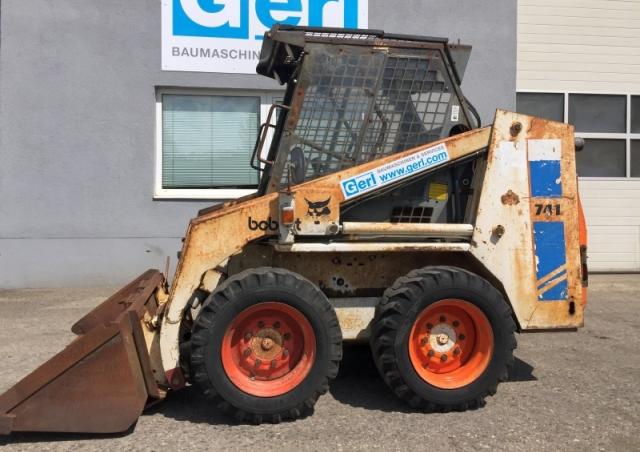

741 Bobcat 741 Specifications & Technical Data (1987—1991)

The Bobcat 741 is a skid steer loader manufactured by Bobcat from 1987 to 1991. It has a weight of 1.95 tons and a transport lengt…

The Bobcat 741 is a skid steer loader manufactured by Bobcat from 1987 to 1991. It has a weight of 1.95 tons and a transport length of 3.05 meters. The bucket capacity is 0.4 cubic meters, and it has a travel speed of 12 km/h. The transport width is 1.4 meters, and the transport height is 1.92 meters. The rated operating capacity is 589 kilograms.

Skid Steer Loaders Bobcat 741

Visit Bobcat live at

Technical specs - 741 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.95 t
Rated operating capacity
589 kg
Standard tyres
10.0-16.5
Bucket capacity
0.4 m³
Transport length
3.05 m
Transport width
1.4 m
Transport height
1.92 m
Travel speed
12 km/h
Engine manuf.
Deutz
Engine type
F2L511
Engine power
26 kW

More technical details, like: track width, bucket width, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: track width, bucket width, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Bobcat 741 FAQ

When was the Bobcat 741 manufactured?

The Bobcat 741 was manufactured from 1987 to 1991.

How much does the Bobcat 741 skid steer loader weigh?

The Bobcat 741 skid steer loader weighs 1.95 tons.

What are the transport dimensions of the Bobcat 741 skid steer loader?

The Bobcat 741 has a transport length of 3.05 meters, a transport width of 1.4 meters, and a transport height of 1.92 meters.

What is the travel speed of the Bobcat 741 skid steer loader?

The Bobcat 741 has a travel speed of 12 km/h.

What are the undercarriage specifications of the Bobcat 741 skid steer loader?

The Bobcat 741 skid steer loader is equipped with standard tyres sized 10.0-16.5.

What is the material handling capacity of the Bobcat 741 skid steer loader?

The Bobcat 741 skid steer loader has a rated operating capacity of 589 kg.

What is the bucket capacity of the Bobcat 741 skid steer loader?

The Bobcat 741 skid steer loader has a bucket capacity of 0.4 cubic meters.

How much is a Bobcat 741 Skid steer loader (1987u20131991) worth?

The residual value of the Bobcat 741 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
