RT 120 ASV RT 120 Specifications & Technical Data (2017—2026)

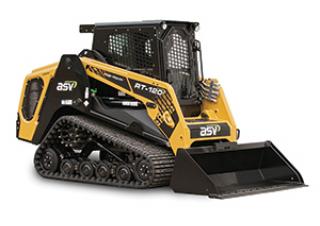

The ASV RT 120 is a skid steer loader manufactured by ASV since 2017. It has a weight of 4.71 tons and a bucket width of 1.83 mete…

The ASV RT 120 is a skid steer loader manufactured by ASV since 2017. It has a weight of 4.71 tons and a bucket width of 1.83 meters. The travel speed of this construction machine is 16 km/h, and it has a track width of 457 millimeters. The rated operating capacity is 1603 kilograms.

Skid Steer Loaders ASV RT 120

Technical specs - RT 120 ASV

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.71 t
Rated operating capacity
1603 kg
Track width
457 mm
Bucket width
1.83 m
Driver protection
KbR
Travel speed
16 km/h
Model series
RT
Engine manuf.
Cummins
Engine type
QSF3.8
Engine power
89.5 kW
Displacement
3.8 l
Revolutions at max torque
2800 rpm
Max. torque
488 Nm
Emission level
Tier 4 f

More technical details, like: standard tyres, bucket capacity, steering mode, transport length, transport width, transport height, max. discharge height, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

ASV RT 120 FAQ

When was the ASV RT 120 manufactured?

The ASV RT 120 was first produced in 2017.

How much does the ASV RT 120 skid steer loader weigh?

The ASV RT 120 skid steer loader weighs 4.71 tons.

What is the travel speed of the ASV RT 120 skid steer loader?

The ASV RT 120 has a travel speed of 16 km/h.

What is the track width of the ASV RT 120 skid steer loader?

The ASV RT 120 skid steer loader has a track width of 457 mm.

What is the rated operating capacity of the ASV RT 120 skid steer loader?

The ASV RT 120 skid steer loader has a rated operating capacity of 1603 kilograms.

What is the bucket width of the ASV RT 120 skid steer loader?

The ASV RT 120 skid steer loader has a bucket width of 1.83 meters.

What operator safety and support features does the ASV RT 120 have?

The ASV RT 120 is equipped with a cabin that includes ROPS for driver protection.

How much is a ASV RT 120 Skid steer loader (2017u20132025) worth?

The residual value of the ASV RT 120 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
