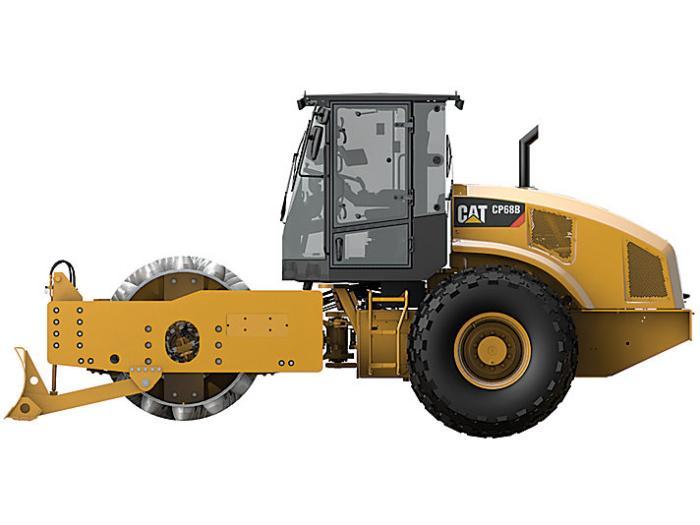

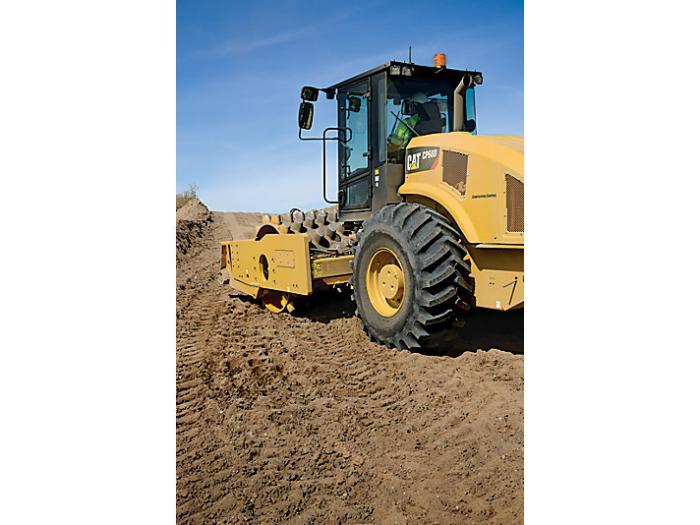

CP68B Caterpillar CP68B Specifications & Technical Data (2013—2023)

Cat® Vibratory Soil Compactors

Cat Vibratory Soil Compactors feature more weight, increased amplitude and advanced technology to help you quickly reach target density. Long service intervals reduce the use of consumables and keep the machines running day after day, from dawn to dusk. Legendary Cat durability provides a high resale value when the time comes for replacement.

Done Right, Done Now

Cat Vibratory Soil Compactors quickly reach target compaction because of optimized weight and amplitude. Built-in technology helps make it easy to produce uniform, high-quality compaction consistently.

Enhanced Compaction Performance

Weight at the drum optimized for maximum performance Increased amplitude provides greater compactive power Automatic Speed Control feature makes it easier to maintain consistency by eliminating machine speed as a variable Auto-vibe function optimizes compaction uniformity Optional compaction measurement systems maximize efficiency and help ensure quality.

Cat Pod-Style Vibratory System

Virtually maintenance free: 3 year/3,000 hour vibratory bearing oil change; no scheduled oil sampling necessary Exclusive eccentric weight provides high reliability, smooth performance and low noise Optional variable frequency maximizes compaction performance while Eco-mode is engaged, providing reduced fuel consumption without sacrificing compaction performance.

Maximize Uptime

Routine service on Cat Vibratory Soil Compactors is conducted from the right side of the machine, with key components within easy reach from the ground. The durable one-piece hood tilts forward quickly and easily for exceptional access to the engine and cooling system. Of course, the most convenient—and least costly—service of all is that which can be avoided. That’s why these compactors feature long service intervals and a no-maintenance hitch.

Sustainability Benefits Built Into Every Machine

Cat C4.4 with ACERT Technology and Cat C3.4B engines meet U.S. EPA Tier 4 Final and EU Stage IV emission standards. Eco-mode reduces fuel consumption. Extended service intervals for fluids and filters. Cat Compaction Control maximizes efficiency. Enhanced weight distribution and amplitude reduce the number of passes required. Robust engine block and components increase life and reduce noise levels. Large cooling package reduces oil deterioration and varnishing of internal components as well as operating temperatures. Ecology drains reduce the risk of spills when draining machine fluids.

Padfoot Shell Kit

A padfoot shell kit is available for all smooth drum models, including the CS44B, CS54B, CS56B, CS64B, CS66B, CS68B, CS74B, CS76B, CS78B and CS79B. The padfoot shell kit provides versatility by allowing a smooth drum machine to compact semi-cohesive and cohesive materials. The kit comes with interchangeable smooth drum and padfoot scrapers. Oval pad design and square pad design are available.

Leveling Blade

A leveling blade is available for padfoot drum models CP44B, CP56B, CP68B, and CP74B, and smooth drum models CS44B, CS56B, CS66B, CS68B, and CS74B. The blade features a new bolt-on design, allowing its removal and reinstallation. The universal bumper design provides this capability. The leveling blade is controlled with thumb switches located on the propel lever, except on the CS/CP44B which utilizes a foot pedal.

Operator Comfort

Good visibility enables effective communication and promotes alertness. Long hours of operation can take a toll on operators. That's why Caterpillar designs operating stations that provide excellent control, visibility and comfort.

Comfort Matters

Cat Vibratory Soil Compactors are built for extreme operating conditions, but your operators aren't. That's why comfort is built into every model. Comfort keeps your operators alert, which enhances productivity and safety. Comfortable equipment also helps you retain key employees, avoiding additional training and hiring costs.

Under Control

The newly designed console for Cat Vibratory Soil Compactors is convenient, helping operators quickly find what they need, when they need it. The intuitive feel gives operators the confidence they need to leverage the technology, and associated productivity, built into the machines.
