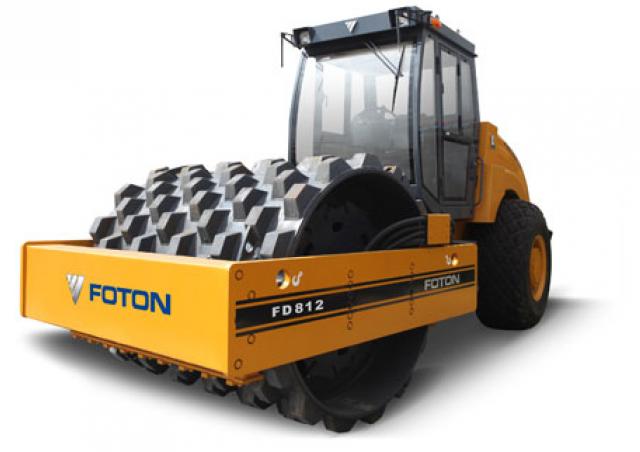

FD812 Foton Lovol FD812 Specifications & Technical Data (2017—2026)
Technical specs - FD812 Foton Lovol
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12 t
- Transport length
- 5.15 m
- Transport width
- 2.35 m
- Transport height
- 3.3 m
- Travel speed
- 12 km/h
- Frequency
- 46 Hz
- Roller width
- 2.1 m
- Rollers Ø
- 1.35 m
- Amplitude
- 0.8 mm
- Turning radius outside
- 7 m
- Statical line load
- 29.16 kg/cm
- Model series
- FD
- Engine manuf.
- Cummins
- Engine type
- 6BT5.9
- Engine power
- 110 kW
More technical details, like: vibration, drive, turning radius inside, centrifugal force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin
Special equipment
- Diesel particulate filter
-
No
- Sheep foot
-
No
- Oscillation
-
No
- Compression control
-
No
- Aircondition
-
No
Download datasheets (PDF)
Foton Lovol FD812 FAQ
How much does the Foton Lovol FD812 weigh?
What are the transport dimensions of the Foton Lovol FD812 single-drum roller?
What is the travel speed of the Foton Lovol FD812 single-drum roller?
What is the outside turning radius of the Foton Lovol FD812?
What are the compaction capabilities of the Foton Lovol FD812 single-drum roller?
What are the roller specifications of the Foton Lovol FD812 single-drum roller?
How much is a Foton Lovol FD812 Single-drum Roller (2017u20132025) worth?
