Lectura specs Construction machinery Rollers Single-drum Rollers Rollers Lonking Single-drum Rollers Lonking Lonking CDM512D specifications

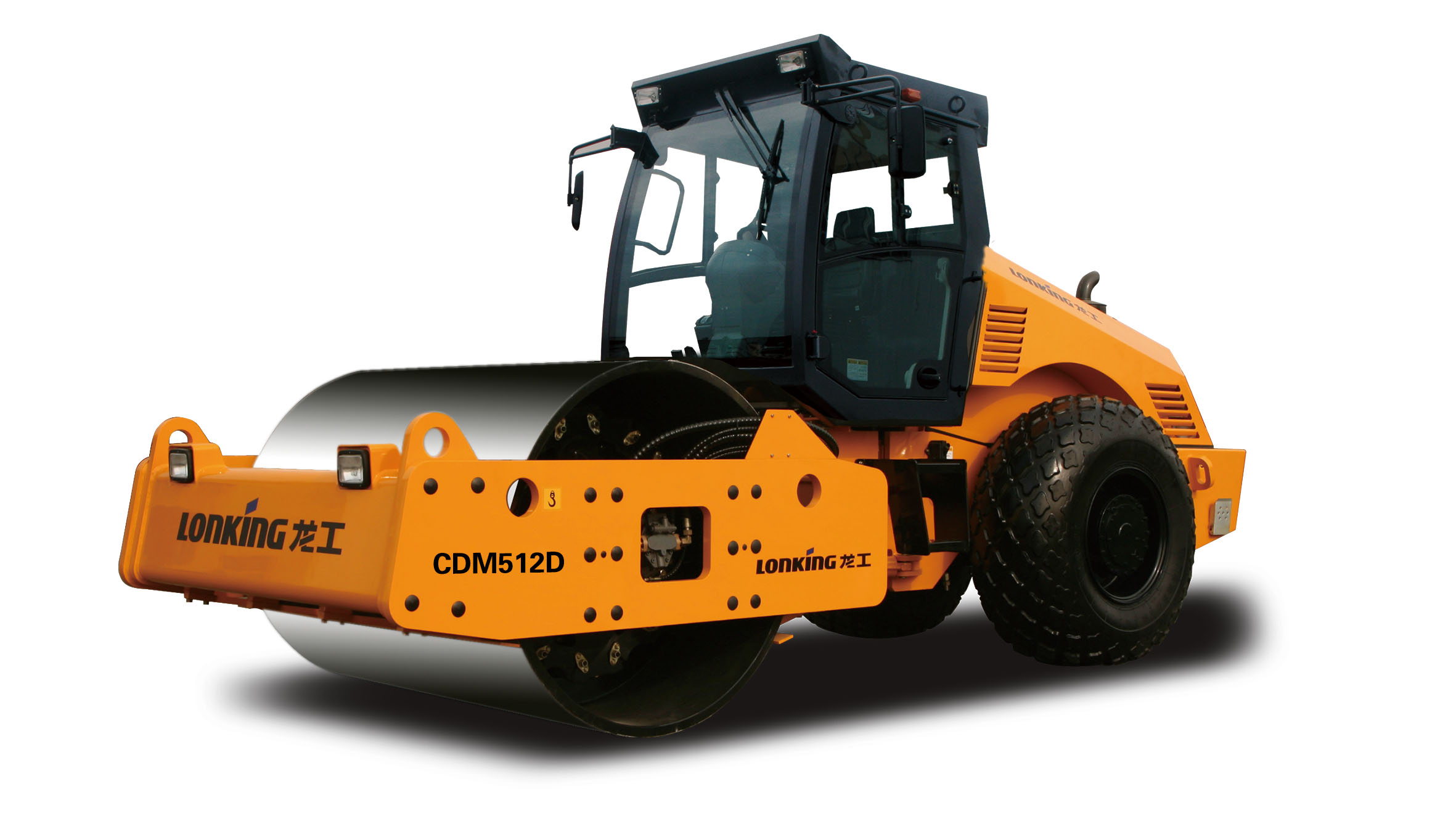

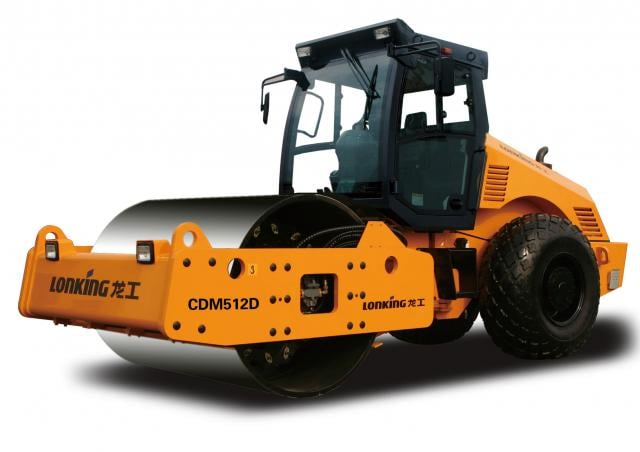

Lonking CDM512D Specifications & Technical Data (2017-2023)

Rate this machine now!

Weight: 12t – Transport length: 5.978m – Transport width: 2.28m – Transport height: 3.22m – Travel speed : 10.8km/h – Frequency: 30/36Hz

Technical specs - CDM512D Lonking


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 12 t
  • Transport length 5.978 m
  • Transport width 2.28 m
  • Transport height 3.22 m
  • Travel speed 10.8 km/h
  • Frequency 30/36 Hz
  • Roller width 2.12 m
  • Rollers Ø 1.532 m
  • Amplitude 1.8/0.9 mm
  • Turning radius outside 6.5 m
  • Statical line load 30.9 kg/cm
  • Model series CDM

More technical details, like: average fuel consumption, fuel consumption range (min - max), vibration, drive, turning radius inside, centrifugal force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

Show more

Basic model with ROPS cabin

Special equipment

  • Diesel particulate filter
  • Sheep foot
  • Oscillation
  • Compression control
  • Aircondition
