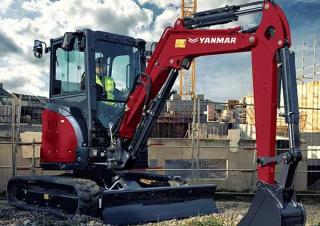

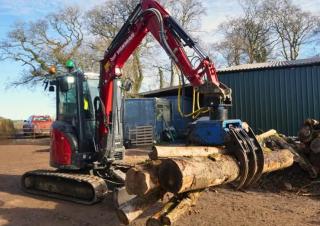

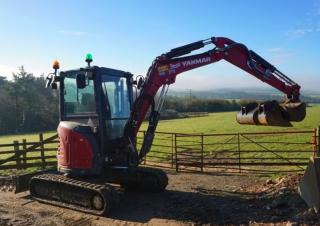

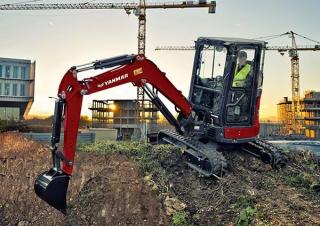

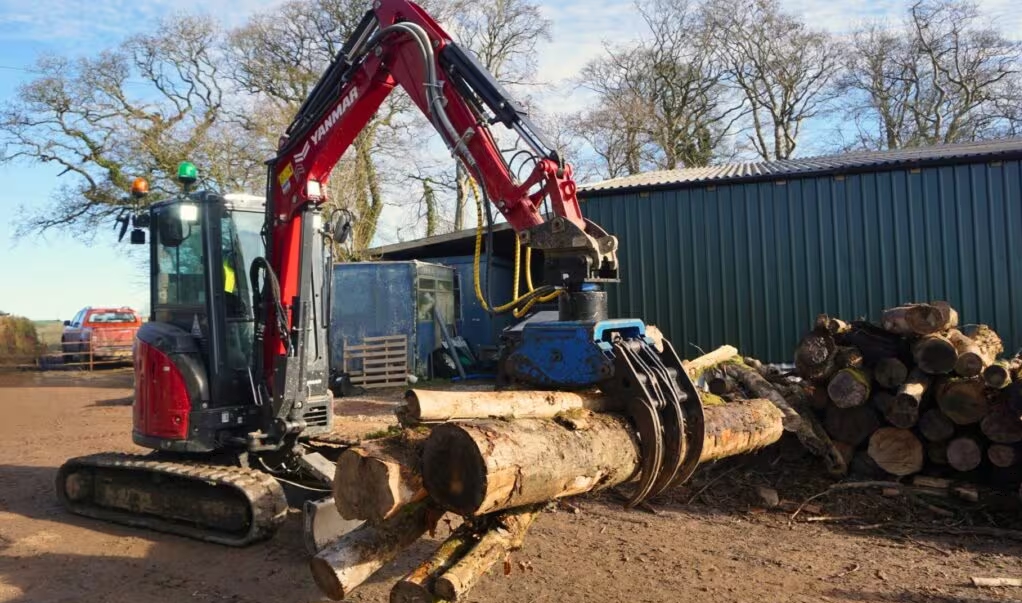

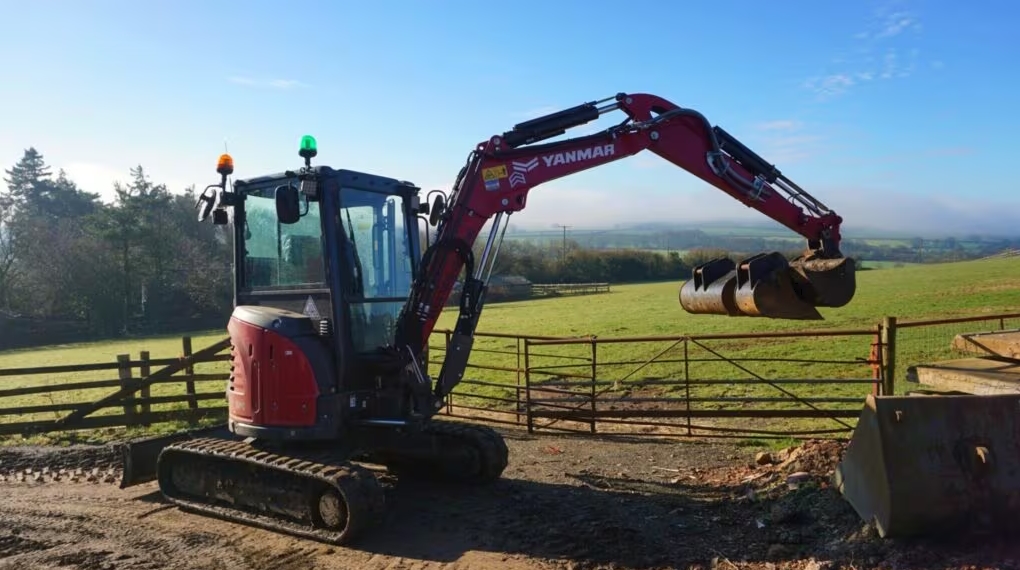

ViO38-6 Yanmar excavator specs & dimensions (2022 - 2025)

Weight: 3.695t – Transport length: 5.32m – Transport width: 1.74m – Transport height: 2.47m – Track width: 300mm – Driver protecti…

Weight: 3.695t – Transport length: 5.32m – Transport width: 1.74m – Transport height: 2.47m – Track width: 300mm – Driver protection: Kb

Check out detailed specifications, information and technical data for Yanmar ViO38-6 excavator manufactured between 2022 - 2025. Get more in-depth insight with Yanmar ViO38-6 digger specifications. See information, like: Weight: 3.695t – Transport length: 5.32m – Transport width: 1.74m – Transport height: 2.47m – Track width: 300mm – Driver protection: Kb and more.

ViO38-6

Years of manufacture: 2022—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - ViO38-6 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.695 t

Transport length: 5.32 m

Transport width: 1.74 m

Transport height: 2.47 m

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 5.35 m

Dredging depth: 3.53 m

Tear-out force: 32.1 kN

Model series: ViO

Engine manuf.: Yanmar

Engine type: 3TNV88-ESBV

Engine power: 18.5 kW

Displacement: 1.642 l

Revolutions at max torque: 2200 rpm

Max. torque: 94.5 Nm

No. of cylinders: 3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: Yes
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Yanmar ViO38-6 FAQ

When was the Yanmar ViO 38-6 manufactured?

The Yanmar ViO 38-6 was first produced in 2024.

How much does the Yanmar ViO 38-6 weigh?

The Yanmar ViO 38-6 weighs 3.695 tons.

What are the transport dimensions of the Yanmar ViO 38-6 mini excavator?

The Yanmar ViO 38-6 has a transport length of 5.32 meters, a transport width of 1.74 meters, and a transport height of 2.47 meters.

What is the track width of the Yanmar ViO 38-6 mini excavator's undercarriage?

The Yanmar ViO 38-6 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Yanmar ViO 38-6 mini excavator?

The Yanmar ViO 38-6 mini excavator has a dredging depth of 3.53 meters and a maximum horizontal reach of 5.35 meters.

What are the power ratings of the Yanmar ViO 38-6 mini excavator?

The source data does not provide power ratings for the Yanmar ViO 38-6 mini excavator.

What driver protection feature does the Yanmar ViO 38-6 have?

The Yanmar ViO 38-6 has a cabin for driver protection.
