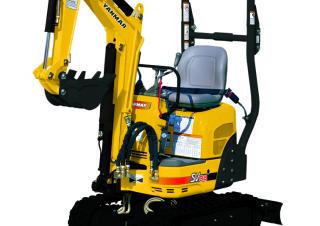

SV 08-1 AS Yanmar excavator specs & dimensions (2015 - 2021)

Yanmar SV 08-1 AS is a Mini Excavator manufactured from 2015 to 2021, with a weight of 1.03 t. It features a track width of 180 mm…

Yanmar SV 08-1 AS is a Mini Excavator manufactured from 2015 to 2021, with a weight of 1.03 t. It features a track width of 180 mm, a transport length of 2.6 m, a transport width of 0.73 m, and a transport height of 1.55 m. The machine has a tear-out force of 5.88 kN, a dredging depth of 1.5 m, and a maximum horizontal reach of 2.73 m. Special equipment includes a blade, quick hitch mechanism, rubber track, and track adjustment.

Mini Excavators Yanmar SV 08-1 AS

Technical specs - SV 08-1 AS Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.03 t
Transport length
2.6 m
Transport width
0.73 m
Transport height
1.55 m
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
2.73 m
Dredging depth
1.5 m
Tear-out force
5.88 kN
Model series
SV
Engine manuf.
Yanmar
Engine type
2TE67L
Engine power
7.7 kW
Displacement
0.507 l
Max. torque
31.5 Nm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Yanmar SV 08-1 AS FAQ

When was the Yanmar SV 08-1 AS manufactured?

The Yanmar SV 08-1 AS was manufactured from 2015 to 2021.

How much does the Yanmar SV 08-1 AS weigh?

The Yanmar SV 08-1 AS weighs 1.03 tons.

What are the transport dimensions of the Yanmar SV 08-1 AS mini excavator?

The Yanmar SV 08-1 AS has a transport length of 2.6 meters, a transport width of 0.73 meters, and a transport height of 1.55 meters.

What is the track width of the Yanmar SV 08-1 AS mini excavator?

The Yanmar SV 08-1 AS mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Yanmar SV 08-1 AS mini excavator?

The Yanmar SV 08-1 AS mini excavator has a dredging depth of 1.5 meters and a maximum horizontal reach of 2.73 meters.

What is the tear-out force of the Yanmar SV 08-1 AS mini excavator?

The Yanmar SV 08-1 AS mini excavator has a tear-out force of 5.88 kN.

What operator safety features does the Yanmar SV 08-1 AS have?

The Yanmar SV 08-1 AS is equipped with a roll-over bar for driver protection.

How much is a Yanmar SV 08-1 AS Mini excavator (2015u20132021) worth?

The residual value of the Yanmar SV 08-1 AS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
