SV 05 B Yanmar excavator specs & dimensions (2006 - 2017)

Yanmar SV 05 B is a mini excavator manufactured from 2006 to 2017, with a weight of 0.62 t. It features a track width of 150 mm, a…

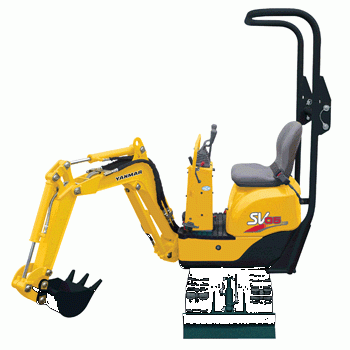

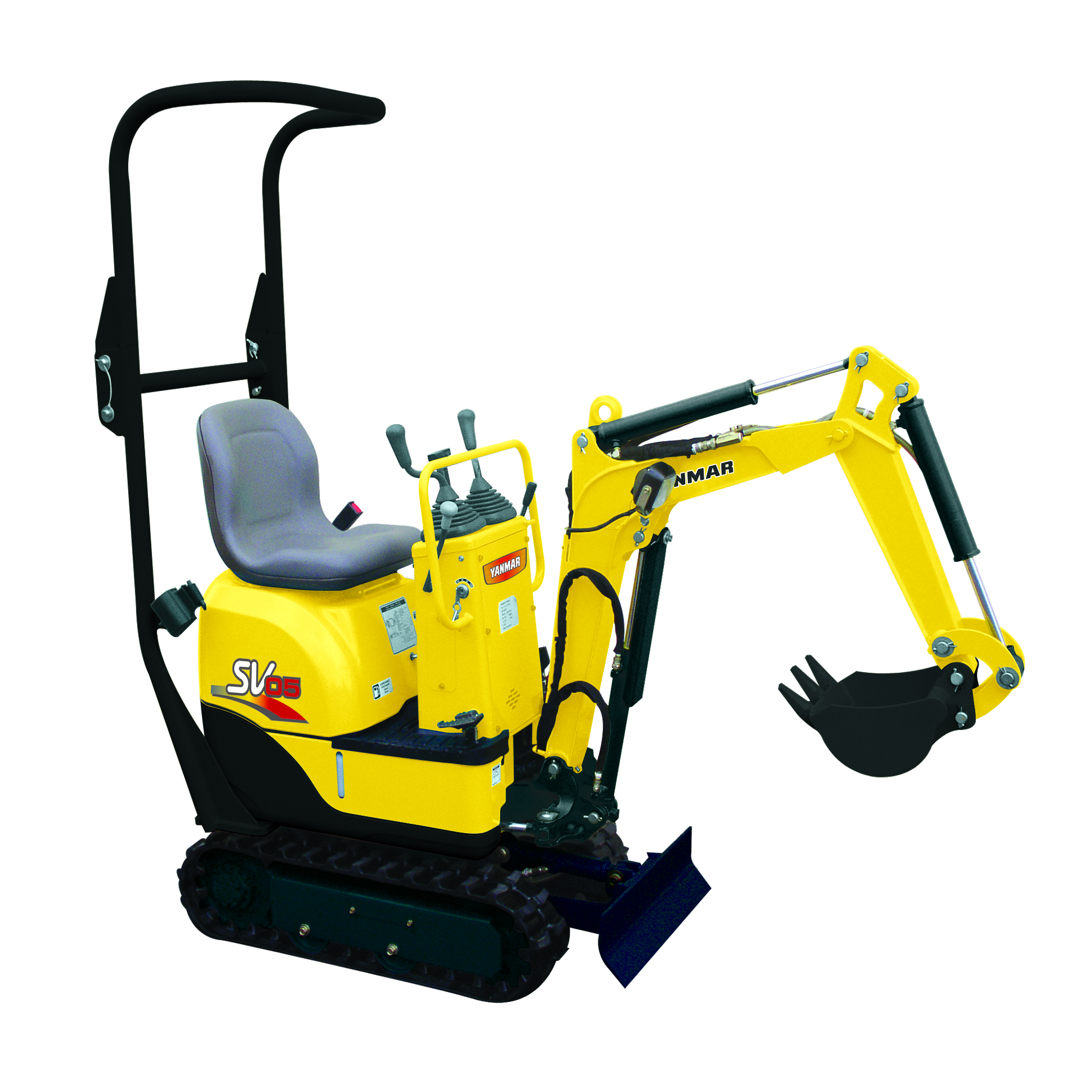

Yanmar SV 05 B is a mini excavator manufactured from 2006 to 2017, with a weight of 0.62 t. It features a track width of 150 mm, a transport length of 2.15 m, a transport width of 0.69 m, and a transport height of 2.08 m. The excavator is equipped with a blade and rubber tracks.

SV 05 B

Years of manufacture: 2006—2017

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - SV 05 B Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 0.62 t

Transport length: 2.15 m

Transport width: 0.69 m

Transport height: 2.08 m

Track width: 150 mm

Driver protection: Ü

Max. Reach horizontal: 1.41 m

Dredging depth: 1.2 m

Model series: SV

Engine manuf.: Yanmar

Engine type: 2TE67

Engine power: 5.5 kW

Displacement: 0.507 l

Revolutions at max torque: 2000 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Yanmar SV 05 B FAQ

When was the Yanmar SV 05 B manufactured?

The Yanmar SV 05 B was manufactured from 2006 to 2017.

How much does the Yanmar SV 05 B mini excavator weigh?

The Yanmar SV 05 B mini excavator weighs 0.62 tons.

What are the transport dimensions of the Yanmar SV 05 B mini excavator?

The Yanmar SV 05 B has a transport length of 2.15 meters, a transport width of 0.69 meters, and a transport height of 2.08 meters.

What is the track width of the Yanmar SV 05 B mini excavator?

The Yanmar SV 05 B mini excavator has a track width of 150 mm.

What are the dredging depth and maximum horizontal reach of the Yanmar SV 05 B mini excavator?

The Yanmar SV 05 B has a dredging depth of 1.2 meters and a maximum horizontal reach of 1.41 meters.

What operator safety features does the Yanmar SV 05 B have?

The Yanmar SV 05 B is equipped with a roll-over bar for driver protection.

How much is a Yanmar SV 05 B Mini excavator (2006u20132017) worth?

The residual value of the Yanmar SV 05 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
