TC 25 Terex excavator specs & dimensions (2007 - 2016)

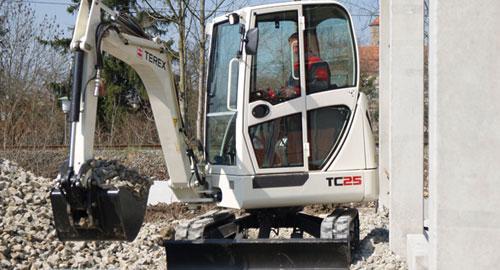

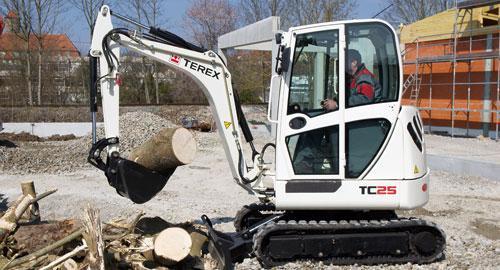

Terex TC 25 is a mini excavator manufactured from 2007 to 2016. It has a weight of 2.45 tons and a track width of 250 mm. The tran…

Terex TC 25 is a mini excavator manufactured from 2007 to 2016. It has a weight of 2.45 tons and a track width of 250 mm. The transport dimensions are 4.51 meters in length, 1.45 meters in width, and 2.45 meters in height. The machine features a tear-out force of 14.6 kN, a dredging depth of 2.78 meters, and a maximum horizontal reach of 4.7 meters. The bucket width is 0.3 meters, with a capacity ranging from 0.038 m³ to 0.11 m³. Special equipment includes a blade, mechanical quick hitch, and rubber tracks.

TC 25

Years of manufacture: 2007—2016

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Reviews
Transport
News

Technical specs - TC 25 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.45 t

Transport length: 4.51 m

Transport width: 1.45 m

Transport height: 2.45 m

Bucket capacity min.: 0.038 m³

Bucket capacity max.: 0.11 m³

Bucket width: 0.3 m

Track width: 250 mm

Driver protection: Kb

Max. Reach horizontal: 4.7 m

Dredging depth: 2.78 m

Tear-out force: 14.6 kN

Model series: TC

Engine manuf.: Mitsubishi

Engine type: S3L2

Engine power: 17.4 kW

Displacement: 1.318 l

Revolutions at max torque: 2200 rpm

Max. torque: 78.4/1800 Nm

No. of cylinders: 3

Emission level: Tier 4 f

More technical details, like: bucket capacity, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Terex TC 25 FAQ

When was the Terex TC 25 manufactured?

The Terex TC 25 was manufactured from 2007 to 2016.

How much does the Terex TC 25 mini excavator weigh?

The Terex TC 25 mini excavator weighs 2.45 tons.

What are the transport dimensions of the Terex TC 25 mini excavator?

The Terex TC 25 has a transport length of 4.51 meters, a transport width of 1.45 meters, and a transport height of 2.45 meters.

What is the track width of the Terex TC 25 mini excavator's undercarriage?

The Terex TC 25 mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Terex TC 25 mini excavator?

The Terex TC 25 mini excavator has a dredging depth of 2.78 meters and a maximum horizontal reach of 4.7 meters.

What is the tear-out force of the Terex TC 25 mini excavator?

The Terex TC 25 mini excavator has a tear-out force of 14.6 kN.

What are the bucket specifications of the Terex TC 25 mini excavator?

The Terex TC 25 mini excavator has a bucket width of 0.3 meters, with a maximum bucket capacity of 0.11 cubic meters and a minimum bucket capacity of 0.04 cubic meters.

What operator safety features does the Terex TC 25 have?

The Terex TC 25 has a cabin for driver protection.

How much is a Terex TC 25 Mini excavator (2007u20132016) worth?

The residual value of the Terex TC 25 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Terex TC 25 user from Côte d’Ivoire

Reliable machine

Terex TC 25 overview

Tyres / Tracks

OTHER OPTIONAL EQUIPMENT
Yellow beacon Mechanical quick attachment system (QAS) Quick hitch system, mechanical (real Lehnhoff system), type MS03 Crane loading Wire rope belt Special coating / adhesive fi lms Other optional equipment available on request Track shoes with Felasto tiles Canopy with working fl oodlight (weight reduction: 80 kg) Front dozer blade - extra-long version Boom mounted work glooh light

Dimensions and weight

Maintenance-free crawler-type undercarriage. Idler suspension with hydraulic crawler track tensioning.
Width rubber crawlers / steel crawlers	250 / 300 mm
Tread width		1200 mm
Total length (sprocket - idler)	1550 mm
Total length (undercarriage)		1960 mm

Transport weight (without bucket)	2450 kg
Operating weight acc. to ISO 6016 (incl. operator)	2600 kg
Total length (travel position)	2950 mm
Total height (travel position)	3060 mm
Total width	1510mm
Uppercarriage tailswing	1100 mm
Uppercarriage frontswing	1470 mm
Working envelope 180° / 360°	2570 / 2940 mm
Ground Clearance	310 mm
Bucket digging force (ISO 6015)	21800 N
Stick digging force (ISO 6015)	12800 N

Bucket hinge height		Load radius from center of ring gear
Dipperstick 1200 mm		2.0 m	2.5 m	3.0 m	3.5 m	4.0 m
		End	Side	End	Side	End	Side	End	Side	End	Side
2.0 m	S	-	-	-	-	0.48	0.45	0.47	0.35	-	-
T	-	-	-	-	0.47	0.44	0.46	0.33	-	-
1.0 m	S	1.34	0.84	0.89	0.59	0.66	0.45	0.54	0.34	0.44	0.28
T	0.98	0.79	0.70	0.56	0.52	0.42	0.40	0.33	0.32	0.26
0 m	S	1.22	0.74	0.90	0.59	0.67	0.42	0.50	0.33	0.39	0.27
T	0.86	0.72	0.63	0.54	0.48	0.39	0.38	0.31	0.31	0.26
-1.0 m	S	0.99	0.71	0.72	0.54	0.52	0.42	0.40	0.34	-	-
	T	0.85	0.70	0.74	0.53	0.54	0.41	0.37	0.31	-	-

Tables

Width x height	1510 x 340 mm
Dozer cut below ground	290 mm
Dozer lift above ground	280 mm
Slope angle	31°

Nominal voltage	12 V
Battery	12 V / 71 Ah
Generator	12 V / 50 A
Starter	12 V / 1	7 kW"

Fuel tank	40 l
Hydraulic system (incl. tank 34 l)	40 l

Angle of articulation / lateral adjustment left	60° / 570 mm
Angle of articulation / lateral adjustment right	67° / 710 mm
FLUID CAPACITIES

Travel speed	forward and reverse"	0-2.7 / 4.4 km/h
Max.	gradeability 60 %
Drawbar pull 1st / 2nd speed range	1965 / 1250 daN

50 45

40
35
30
25
20
15
10
5
0	10 30 50 70 90 110 130 150 170 190 210 230

Manufacturer, model	Mitsubishi, S3L2"
Type	3-cylinder diesel engine	EPA/Tier 4"
Combustion	4-stroke	swirl chamber injection"
Displacement	1318 cm3
Rated power acc. to ISO 9249 at 2200 rpm	17.4 kW (23.7 HP)
Torque	78.4 Nm at 1400 rpm
Cooling system	Water
