TC 15 Terex excavator specs & dimensions (2011 - 2016)

Terex TC 15 is a mini excavator manufactured from 2011 to 2016, with a weight of 1.68 tons. It features a track width of 230 mm, a…

Terex TC 15 is a mini excavator manufactured from 2011 to 2016, with a weight of 1.68 tons. It features a track width of 230 mm, a transport length of 2.37 meters, a transport width of 0.99 meters, and a transport height of 2.36 meters. The machine has a tear-out force of 11.7 kN, a dredging depth of 2.1 meters, and a maximum horizontal reach of 3.73 meters. The bucket width is 0.25 meters, with a bucket capacity ranging from 0.021 m³ to 0.091 m³. Special equipment includes a blade, a mechanical quick hitch, and rubber tracks.

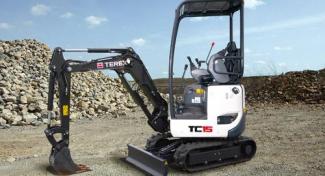

Mini Excavators Terex TC 15
Mini Excavators Terex TC 15
Mini Excavators Terex TC 15
Mini Excavators Terex TC 15

Technical specs - TC 15 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.68 t
Transport length
2.37 m
Transport width
0.99 m
Transport height
2.36 m
Bucket capacity min.
0.021 m³
Bucket capacity max.
0.091 m³
Bucket width
0.25 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.73 m
Dredging depth
2.1 m
Tear-out force
11.7 kN
Model series
TC

More technical details, like: bucket capacity, standard tyres, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Terex TC 15 FAQ

When was the Terex TC 15 manufactured?

The Terex TC 15 was manufactured from 2011 to 2016.

How much does the Terex TC 15 weigh?

The Terex TC 15 weighs 1.68 tons.

What are the transport dimensions of the Terex TC 15 mini excavator?

The Terex TC 15 has a transport length of 2.37 meters, a transport width of 0.99 meters, and a transport height of 2.36 meters.

What is the track width of the Terex TC 15 mini excavator's undercarriage?

The Terex TC 15 mini excavator has a track width of 230 mm on its undercarriage.

What are the excavation performance specifications of the Terex TC 15 mini excavator?

The Terex TC 15 mini excavator has a dredging depth of 2.1 meters and a maximum horizontal reach of 3.73 meters.

What is the tear-out force of the Terex TC 15 mini excavator?

The Terex TC 15 mini excavator has a tear-out force of 11.7 kN.

What are the bucket specifications of the Terex TC 15 mini excavator?

The Terex TC 15 mini excavator has a bucket width of 0.25 meters, with a maximum capacity of 0.09 cubic meters and a minimum capacity of 0.02 cubic meters.

What driver protection feature does the Terex TC 15 have?

The Terex TC 15 has a cabin for driver protection.

How much is a Terex TC 15 Mini excavator (2011u20132016) worth?

The residual value of the Terex TC 15 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Terex TC 15 overview

Hydraulics

Hydraulic Hammer Other work attachments available on request Quick change adapter for hydraulic hammer

Dimensions and weight

Maintenance-free crawler-type undercarriage. Idler suspension with hydraulic crawler track tensioning.
Width (outside edge of crawler chains)990 mm
Width of rubber crawlers230 mm
Total length (sprocket - idler)1078 mm
Total length (undercarriage)1462 mm
Transport weight (with canopy)1550 kg
Transport weight (with cab)1650 kg
Operating weight (with canopy) acc. to ISO 60161679 kg
Operating weight (with cab) acc. to ISO 60161794 kg
Total length (travel position)2371 (2401*) mm
Total length (trailer transport position)3600 mm
Total height (travel position)2357 mm
Total width990 mm
Uppercarriage tailswing650 mm
Uppercarriage frontswing1640 (1670*) mm
Working envelope 180° / 360°2290 / 3280 (3340*) mm
Ground clearance190 mm
Bucket digging force (ISO 6015)15200 N"
Stick digging force (ISO 6015)11730 N"
Ground pressure (rubber crawlers)0.27 daN/cm2
Manufacturer, modelYanmar, 3TNV70-NPR"
Type3-cylinder diesel engine EPA/Tier 4 Final (2008)"
Combustion4-stroke swirl chamber injection"
Displacement854 cm3
Power rating acc. to ISO 9249 at 2260 rpm11.2 kW (15 HP)
Consumption2.5 l/h
Cooling systemWater
ELECTRICAL SYSTEM
Operating voltage12 V
Battery12 V / 65 Ah
Generator12 V / 35 A
TRANSMISSION
Two-stage hydrostatic travel drive with axial piston enclosed.variable displacement motor and reduction gear fully"
Travel speed forward and reverse"0-2.2/4.2 kph
Gradeabilitymax. 60%
Drawbar pull1470 daN

Other features

OTHER OPTIONAL EQUIPMENT
Full visibility steel cab instead of canopy, FOPS (according to ISO 3449) and TOPS certified (as per ISO 12117 / EN 13531). Heating, ventilation and seat belt. Cab mounted work lights Mechanical quick-attach system (QAS) Other optional equipment available on request Yellow light Auxiliary tailweight 80 kg

Tables

Width x height990 x 240 mm
Dozer cut below ground290 mm
Dozer lift above ground260 mm
Slope angle30°
Hydraulic system (incl. 20 l tank)30 l
Cooling system4 l
Engine oil2.8 l
Pump capacity36 lpm
Max. working pressure210 bar
Angle of articulation / lateral adjustment left61° / 470 mm
Angle of articulation / lateral adjustment right69° / 570 mm
FLUID CAPACITIES
