ECR355EL Volvo excavator specs & Dimensions (2019 - 2023)

Never short on performance

Proving that you don’t need to make compromises, the new ECR355E short swing radius excavator from Volvo is designed for working in confined areas – while delivering digging performance, fast cycle times, balance and stability that rival conventional excavators. Get to work without delay in the robust machine, powered by the fuel-efficient Stage V certificated Volvo engine and do more for less.

Get to work – fast

Cut cycle times to a minimum and increase profitability with the E-Series electro-hydraulic system. Working in combination with the Volvo engine, the advanced system increases pump power for faster and smoother operation, all while providing greater control, superior digging performance and unbeatable productivity. Do more in less time thanks to the hydraulics system, designed to work in harmony with the engine for fast cycle times.

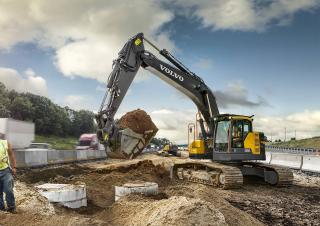

Short swing, big potential

No task is too tough for the robust and versatile ECR355E. The short swing radius machine is a proven partner to increase productivity on tight job sites. Combining superior digging performance, greater lifting capacity, ease of mobility and a precise finish in grading applications, the ECR355E is a compact machine that packs a powerful punch.

Go anywhere ability

Go everywhere in the ECR355E, designed to deliver maximum mobility, performance and power for its size. Thanks to its compact design, the machine is ideal for working in confined spaces and can easily be transported from site to site. With the optional narrow and long undercarriage, mobility is further enhanced between job sites.

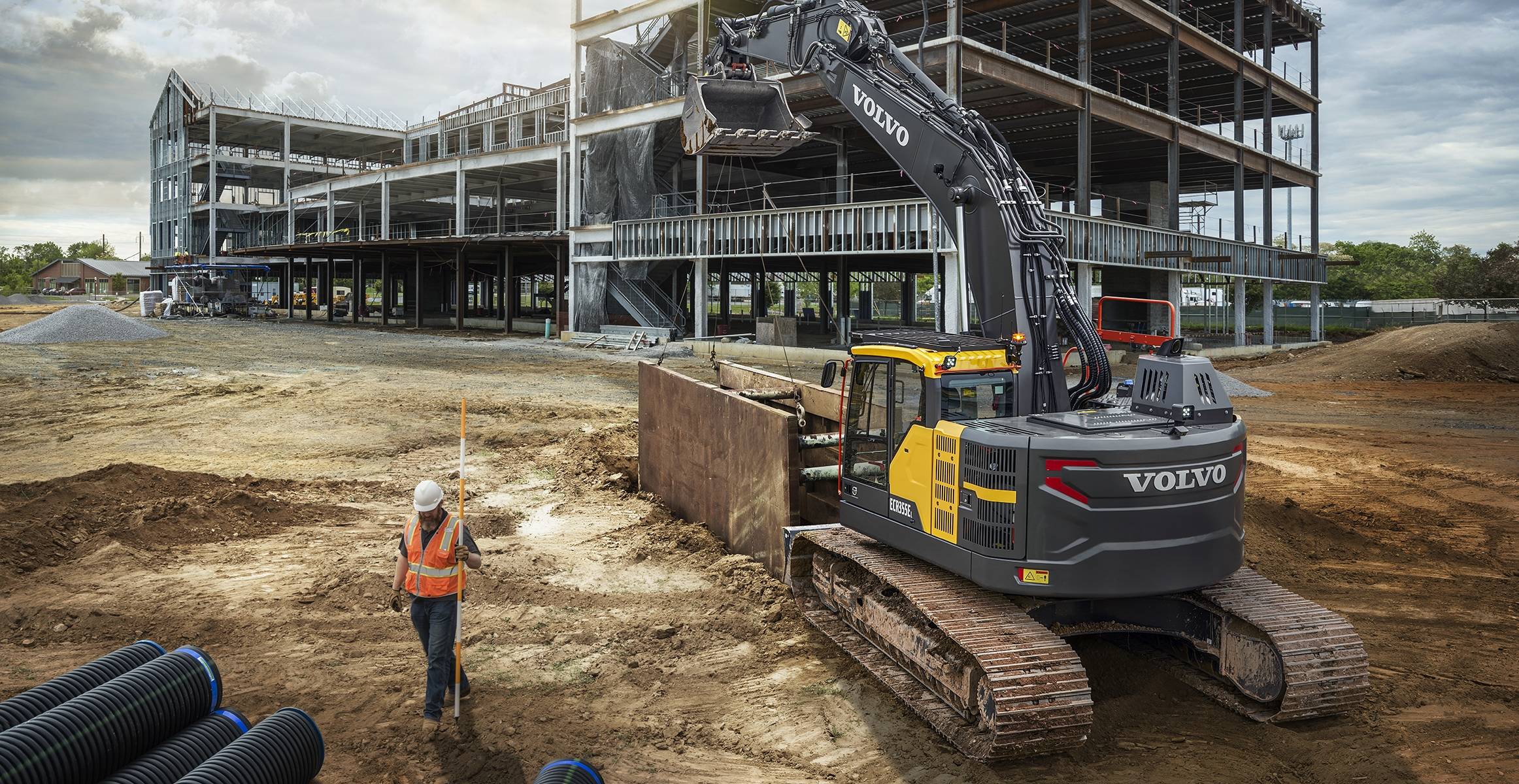

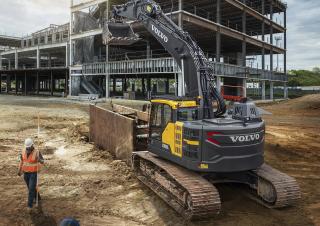

Lift More, Dig More

Dig, swing and load more than before with the ECR355E, powered by advanced electro-hydraulic technology. Offering a significant increase in both lifting capacity and digging force, this machine is ideal for pipelaying, trench-box installation and utility work. With the ECR355E, hard work has never been so easy.

Up to the Test

Built on the established E-Series platform, the ECR355E features all the proven Volvo technology you’d expect from a short swing radius excavator, plus a host of upgrades. Durable by design, the ECR355E has undergone extensive testing to ensure the highest standard of productivity and machine uptime.

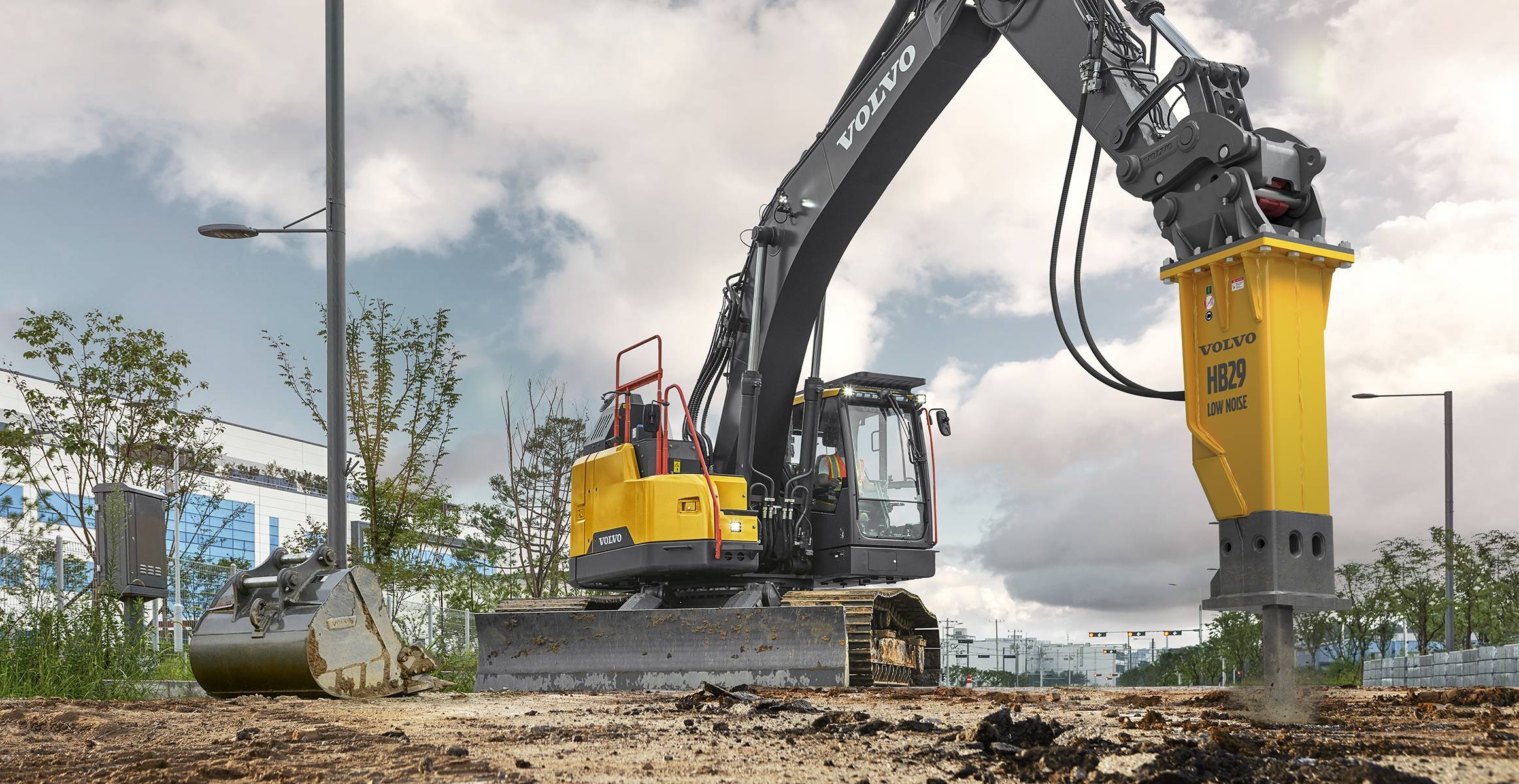

Mix and match

Volvo’s durable attachments have been purpose-built to deliver maximum productivity and long service life in combination with Volvo machines. Get the most out of your machine with Volvo attachments. Choose from a selection of purpose-built attachments, including the hydraulic breakers, general-purpose buckets, heavy-duty buckets and hydraulic thumbs. Alternatively, utilize the attachment management system with optional pressure settings to install a number of aftermarket work tools, giving your machine unrestricted access to more applications.

Take control

Take control of your machine with a host of new features. The customized response modes in the joysticks and the positive control hydraulic system deliver equal measures of power and precision, ensuring the machine does exactly what the operator intends to optimize productivity and performance. The hydraulic system is matched to the Volvo D8 engine, further enhancing the power and controllability of the excavator.

More than a machine

Complete a variety of tasks with the versatile ECR355E, designed to work in harmony with integrated attachments from Volvo. With Volvo’s quick couplers and attachment management system, you can easily switch between buckets, hydraulic breakers, and even the Steelwrist® tilt rotator. Maximize cycle times and productivity with the Volvo short swing radius excavator – more than just a machine.

Tilt rotators

Volvo’s tilt rotator can be ordered factory-installed with dedicated joysticks and a color display that is fully integrated into the machine’s system. The new series of Volvo Aggressive Cut excavator buckets are perfectly matched to the factory-installed tilt rotator.

Locked on

Volvo offers a full range of quick couplers, which includes Volvo’s S-type, universal and Steelwrist® quick coupler. Offering smooth transitions and quick attachment changes, Volvo’s quick couplers make changing attachments quick and easy – all from the comfort and safety of the cab.

The right mode for the job

Keep performance high and costs low with the integrated Volvo work mode system. Choose the best work mode for the task at hand – select from I (Idle), F (Fine), G (General), H (Heavy) and P (Power max). The new ECO mode uses the latest electronic pump control technology to further boost fuel efficiency without any loss in performance.

Power to perform

Power your operation with the fuel-efficient Stage V certificated Volvo engine, combining high torque and low RPM for superior, long-lasting performance. Based on proven, advanced technology and decades of experience, the robust D8 engine delivers 180kW (241 Hp) of power, while reducing both fuel consumption and emissions.

Do more for less

Increase fuel efficiency by up to 10% with the ECR355E, designed to help you do more for less. ECO Mode, combined with the efficient Stage V certificated Volvo engine and superior hydraulic performance at lower engine RPM – results in improved fuel efficiency without any loss of performance in most operating conditions. Cut cycle times thanks to the boom float function, which saves pump power when lowering the boom.

Making the grade

Experience smooth operation, fast response times and high performance with the ECR355E, featuring increased hydraulic flow for accurate control in grading and combined operations. Benefit from easier movement when traveling and lifting simultaneously, and better grading quality thanks to the synchronized boom and arm movement. Designed to complement each other, the enhancements also contribute to low fuel consumption.

Engine

The latest generation, Volvo engine Stage V emissions certificated diesel engine fully meets the demands of the latest emissions regulations. Featuring Volvo Advanced Combustion Technology (V-ACT), it is designed to deliver superior performance and fuel efficiency. The engine uses precise, high pressure fuel injectors, turbo charger with air-to-air intercooler, and electronic engine controls to optimize machine performance. Air Filter: 3-stage with precleaner Automatic idling system: Reduces engine speed to idle when the levers and pedals are not activated resulting in less fuel consumption and low cab noise levels.

Standard equipment

EngineTurbocharged, 6 stroke diesel engine with water cooling, direct injection and charged air cooler that meets EU Stage V requirementsAir filter with indicatorAir intake heaterFuel filter and water separatorFuel filler pump: 50 l/min, with automatic shut-offAlternator, 120 AElectric / Electronic control systemContronics- Advanced mode control system- Self-diagnostic systemCaretrack via GSM or satellite and 3yr-Caretrack subscriptionMachine status indicationEngine speed sensing power controlAutomatic idling systemOne-touch power boostSafety stop/start functionAdjustable LCD color monitorMaster electrical disconnect switchEngine restart prevention circuitHigh-capacity halogen or LED lights:- Halogen: Frame-mounted 1, Boom-mounted 2- LED: Frame-mounted 1, Boom-mounted 2Batteries, 2 x 12 V / 170 AhStart motor, 24 V / 5.5 kW

Simple Serviceability

Maximize uptime with quick and safe ground-level servicing. Essential maintenance points – including pump pressure taps, filters and the cooling package – are easily accessed via the wide-opening compartment doors, which can be latched at 90°. And, with logically-grouped greasing manifolds, anti-slip plates and plentiful handrails, you can get back to work swiftly and safely.

Auxiliary Piping

To achieve the correct flow and pressure for hydraulic attachments such as mowers, grinders, shears, crushers and tilt rotators, the machine can be factory fitted with a variety of extra hydraulic lines, such as breaker and shear piping, as well as rotator piping.

Get Set and Go

The password protected attachment management system allows storage for up to 20 different attachments. The user-friendly system allows the operator to pre-set the correct hydraulic flow and pressure inside the cab through the monitor, to get the most performance from attachments.

Swing System

The swing system uses an axial piston motors, driving a planetary gearbox for maximum torque. An automatic holding brake and anti-rebound valve are standard.

Travel System

Each track is powered by an automatic two-speed shift travel motor. The track brakes are multi-disc, spring-applied and hydraulic released. The travel motor, brake and planetary gears are well protected within the track frame.

Hydraulic System

Automatic sensing hydraulic system:- Summation system- Boom priority- Arm priority- Swing priority"ECO" mode fuel saving technology- Boom, arm and bucket regeneration valves- Swing anti-rebound valves- Boom and arm holding valves- Multi-stage filtering system- Cylinder cushioning- Cylinder contamination seals- Automatic two-speed travel motors- Hydraulic oil, longlife oil 46

Designed to fit your needs

There is a lot riding on creating solutions that are suited to the particular needs of different industry applications. Innovation often involves high technology – but it doesn’t always have to. Some of our best ideas have been simple, based on a clear and deep understanding of our customers’ working lives.

Short Swing, Solid Stability

Operate with complete confidence with the ECR355E. The heavy-duty, short swing machine provides unshakable stability, enabling you to gain the most from the power. The solid design features precisely positioned components for optimal balance, as well as an optional dozer blade that can be used to level the excavator when working on uneven ground and for faster clean-ups.

Adapt to any application

From road construction to heavy infrastructure work, the ECR355E’s class-leading short swing radius goes where conventional machines cannot. Add the Volvo dozer blade, quick coupler, auxiliary hydraulics or the optional two-piece boom, and the result is greater versatility and productivity. Adapt to any application with the ECR355E without compromising on reach, lifting or digging performance.

Durable by Design

Achieve non-stop production with the durable and reliable ECR355E. Built with robust components, including a strong X-frame undercarriage featuring forged steel top rollers, and Volvo’s rugged boom and arms, the machine can be relied on for longevity and sustained uptime.

Heavy-duty Options

For demolition and other heavy-duty applications, Volvo offers reinforcement and guarding packages to ensure your Volvo machine is well-protected. Unlock the potential of your ECR355E’s uptime with a range of options, including the boom and bucket cylinder guards, heavy-duty side doors, reinforced undercovers, slew ring protection and cab-mounted Falling Object Guarding (FOG) packages.

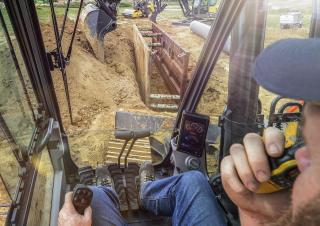

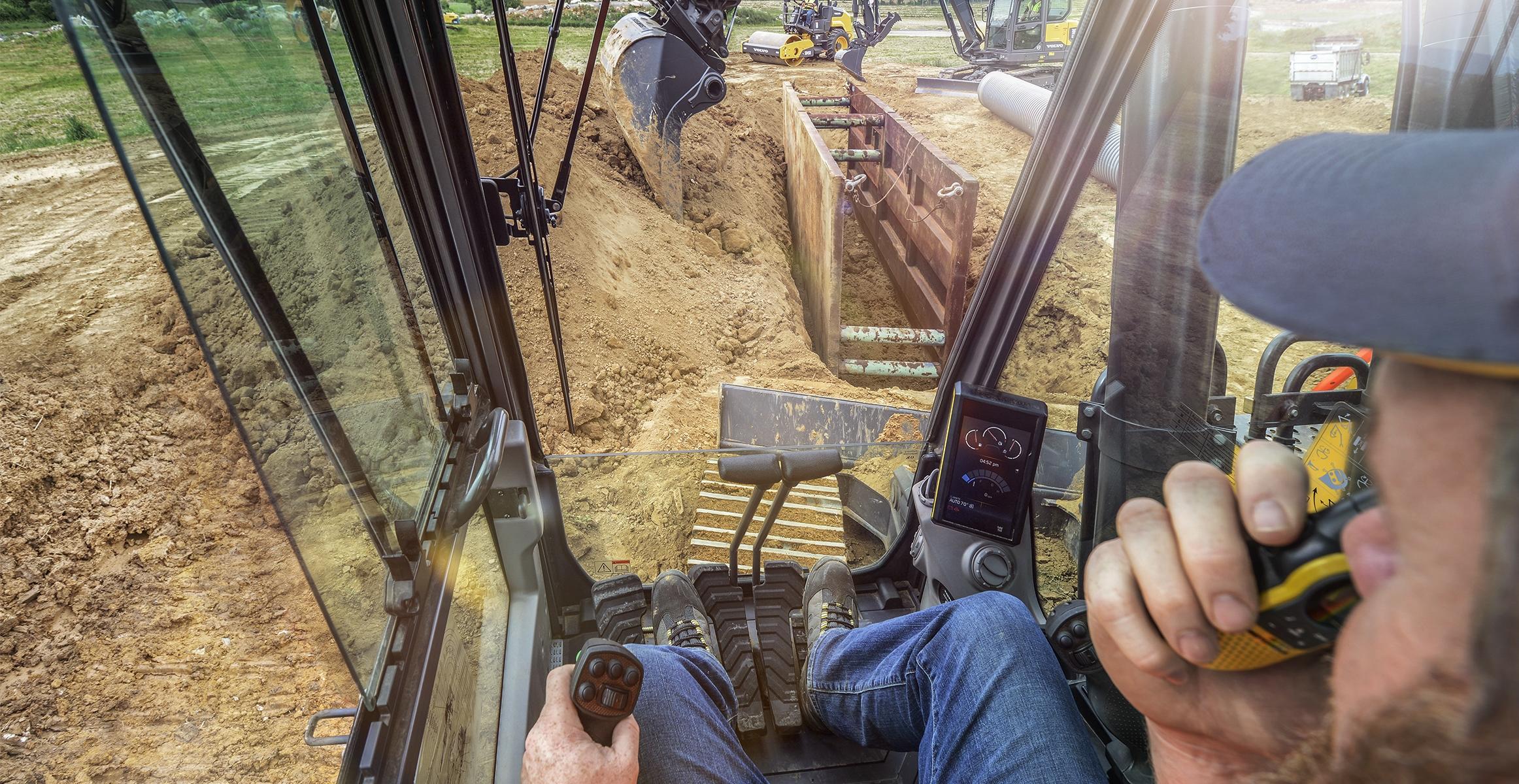

Every angle in view

For a clear view of your job site, the cab’s slim pillars and large expanses of glass result in excellent all-around visibility. From the Volvo cab, experience all-around visibility around the machine and surrounding job site thanks to narrow pillars and large windows. The ergonomically designed cab also features a large vertical windshield for greater visibility, safety and convenience – the large upper front window can be easily rolled up and out of the way, while the lower portion can be easily removed and stowed inside the cab.

Do more – comfortably

Get comfortable with doing more in the Volvo ECR355E. The new E-Series is designed to maneuver in and out of confined areas, yet remains spacious and comfortable. The low-noise cab increases efficiencies and reduces operator fatigue thanks to a number of features, including the automatic climate control system. Do more with Volvo – because a comfortable operator is a more productive operator.

Keep cool

Stay fresh, alert and focused with the E-Series climate control system. The industry-leading air circulation and defrosting system speeds up the heating and cooling of the cab for a more comfortable environment. Easily adjust the system from the 8” LCD monitor.

Cab

The operator's cab has easy access via a wide door opening. The cab is supported on hydraulic dampening mounts to reduce shock and vibration. These along with sound absorbing lining provide low noise levels. The cab has excellent all-round visibility. The front windshield can slide up into the ceiling, and the lower front glass can be removed and stored in the RH side of cab inner space. Integrated air-conditioning and heating system: The pressurized and filtered cab air is supplied by an automatically controlled fan. The air is distributed throughout the cab from 7 vents. Ergonomic operator’s seat: The adjustable seat and joystick consoles move independently to accommodate the operator. The seat has 12 different adjustments plus a seat belt for the operator’s comfort and safety. Refrigerant is used when this machine is equipped with air conditioning. Contains fluorinated greenhouse gas R134a, Global Warming Potential 1.430 t CO2-eq.

Electrical system

Well protected high-capacity electrical system. Waterproof double-lock harness plugs are used to secure corrosion-free connections. The main relays and solenoid valves are shielded to prevent damage. The master switch is standard. Contronics provides advanced monitoring of machine functions and important diagnostic information.
