ECR355E Volvo excavator specs & Dimensions (2022 - 2026)

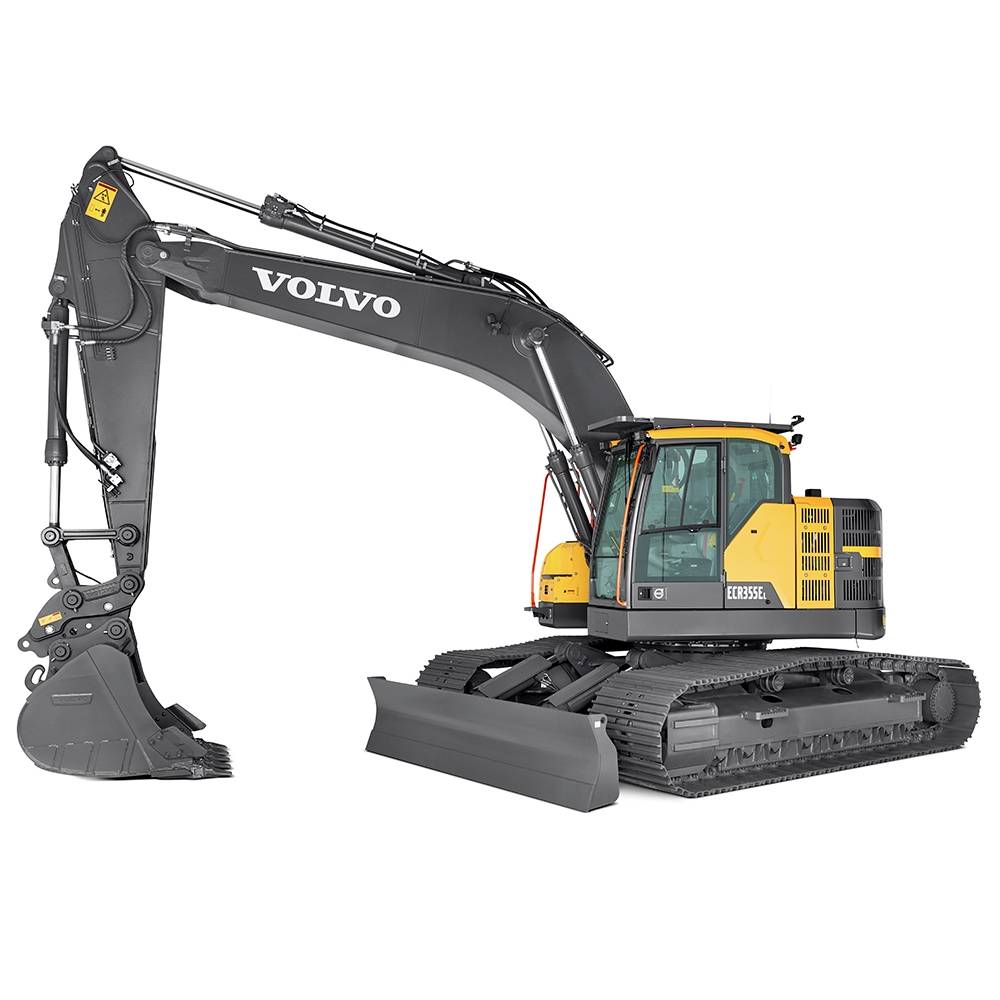

Volvo ECR355E is a Crawler Excavator manufactured since 2022, with a weight of 38 tons and a track width of 850 mm. It has a trans…

Volvo ECR355E is a Crawler Excavator manufactured since 2022, with a weight of 38 tons and a track width of 850 mm. It has a transport length of 9.95 meters, a transport width of 3.34 meters, and a transport height of 3.615 meters. The excavator features a tear-out force of 179 kN, a dredging depth of 6.818 meters, and a maximum horizontal reach of 10.741 meters. The bucket capacity ranges from 0.92 m³ to 2.06 m³. Special equipment includes air conditioning, a blade, a diesel particulate filter, an overload alert, and track adjustment.

Crawler Excavators Volvo ECR355E

Visit Volvo live at

Technical specs - ECR355E Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
38 t
Transport length
9.95 m
Transport width
3.34 m
Transport height
3.615 m
Bucket capacity
2.06 m³
Bucket capacity min.
0.92 m³
Bucket capacity max.
2.06 m³
Track width
850 mm
Max. Reach horizontal
10.741 m
Dredging depth
6.818 m
Tear-out force
179 kN
Model series
ECR
Engine manuf.
Volvo
Engine type
D8J
Engine power
180 kW
Displacement
7.8 l
Revolutions at max torque
1800 rpm
Max. torque
1238 Nm
No. of cylinders
6
Cylinder bore x stroke
110x136 mm
Emission level
Stage V

More technical details, like: undercarriage, boom, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo ECR355E FAQ

When was the Volvo ECR355E manufactured?

The Volvo ECR355E was first produced in 2022.

How much does the Volvo ECR355E weigh?

The Volvo ECR355E weighs 38 tons.

What are the transport dimensions of the Volvo ECR355E crawler excavator?

The Volvo ECR355E has a transport length of 9.95 meters, a transport width of 3.34 meters, and a transport height of 3.62 meters.

What is the track width of the Volvo ECR355E's undercarriage?

The Volvo ECR355E has a track width of 850 mm.

What are the excavation performance specifications of the Volvo ECR355E?

The Volvo ECR355E has a dredging depth of 6.818 meters and a maximum horizontal reach of 10.741 meters.

What is the tear-out force of the Volvo ECR355E crawler excavator?

The Volvo ECR355E crawler excavator has a tear-out force of 179 kN.

What are the bucket capacity specifications of the Volvo ECR355E excavator?

The Volvo ECR355E excavator has a bucket capacity of 2.06 cubic meters, with a maximum capacity of 2.06 cubic meters and a minimum capacity of 0.92 cubic meters.

How much is a Volvo ECR355E Crawler excavator (2022u20132025) worth?

The residual value of the Volvo ECR355E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
